Summary of Contents for Taga Harmony TRS Series

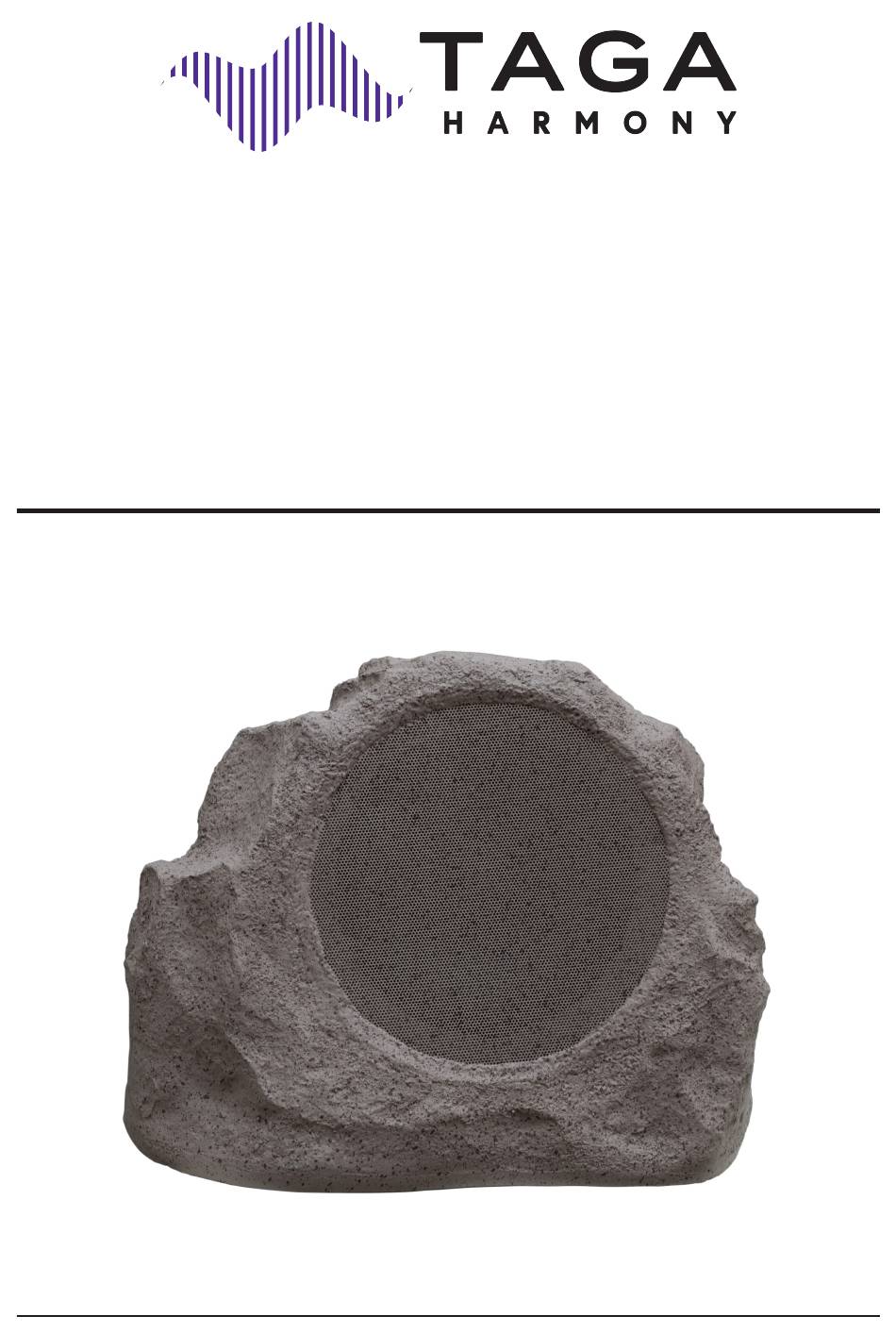

- Page 1 TRS Series OUTDOOR SPEAKERS Instruction manual Edition 09-2022...

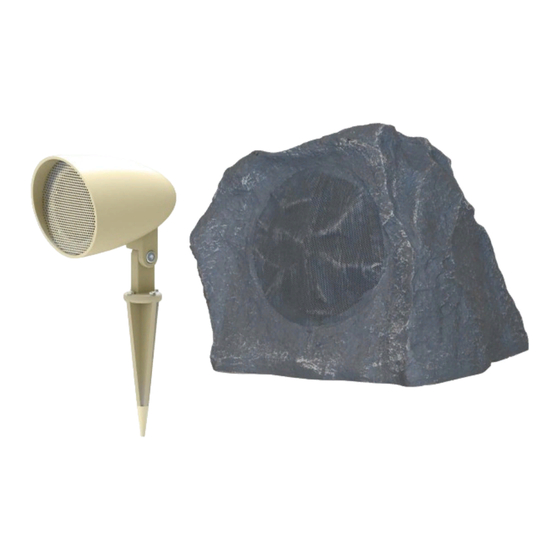

- Page 2 The SM models can provide much wider dispersion than traditional speakers as well as eliminate sound imbalances which can be heard once listeners move around the area. The TRS series is an efficient, cost-effective solution to bring high quality sound and easy installation for outdoor sound systems.
- Page 3 Contents Unpacking The Speaker Placement And Installation Running Speaker Cable Hooking Up Speaker Cable Anchoring The Speaker Kit Content Unpacking The Speaker If you notice any damages in transportation, report it immediately to your dealer/ installer.
- Page 4 Placement And Installation We recommend that your sound system is designed and installed by a licensed professional engineer or designer (installer). When designing and installing the sound system make sure to review safety and performance aspects of the installation which are applicable in the place of installation.
- Page 5 Running Speaker Cable Before running the speaker cable through walls, under sidewalks, roads, patios etc., make sure to review safety aspects which are applicable in the place of installation. Before digging to hide the speaker cable or attaching it to the ground, make sure to review location of gas and water pipes, electricity cables and others with local utility providers.
- Page 6 Hooking Up Speaker Cables Note! Make sure to power off your audio equipment before connecting this speaker. Consult your local TAGA Harmony dealer/installer for further information about cables and connection options. Each channel of your audio equipment is equipped with 2 speaker output terminals: one is + (usually RED color) and one is - (usually BLACK color).
- Page 7 Hooking Up Speaker Cables Connecting the speaker cables For each conductor: 1. Remove approximately 10 mm (3/8”) of insulation from the end of the conductor from the speaker and connecting speaker cable side. 2. Twist the bare wires of the speaker and the speaker cable firmly together, or use a cable connector.
- Page 8 We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. Kit Content: Speaker 1 EA Instruction Manual 1 EA EU declaration of conformity Your product is marked with the symbol shown on the left.
