5. Place mounting bracket onto wall. Line up
last hole on each end of bracket with wall
anchors.
6. Insert mounting screws through bracket
and into wall anchors.
7. Tighten screws until mounting bracket is
firmly fastened to wall.
Placing Heater On Mounting
Bracket
1. Locate two horizontal slots on back panel
of heater (see Figure 11).
2. Place heater onto mounting bracket. Slide
horizontal slots onto stand-out tabs on
mounting bracket.
Stand-Out Tab

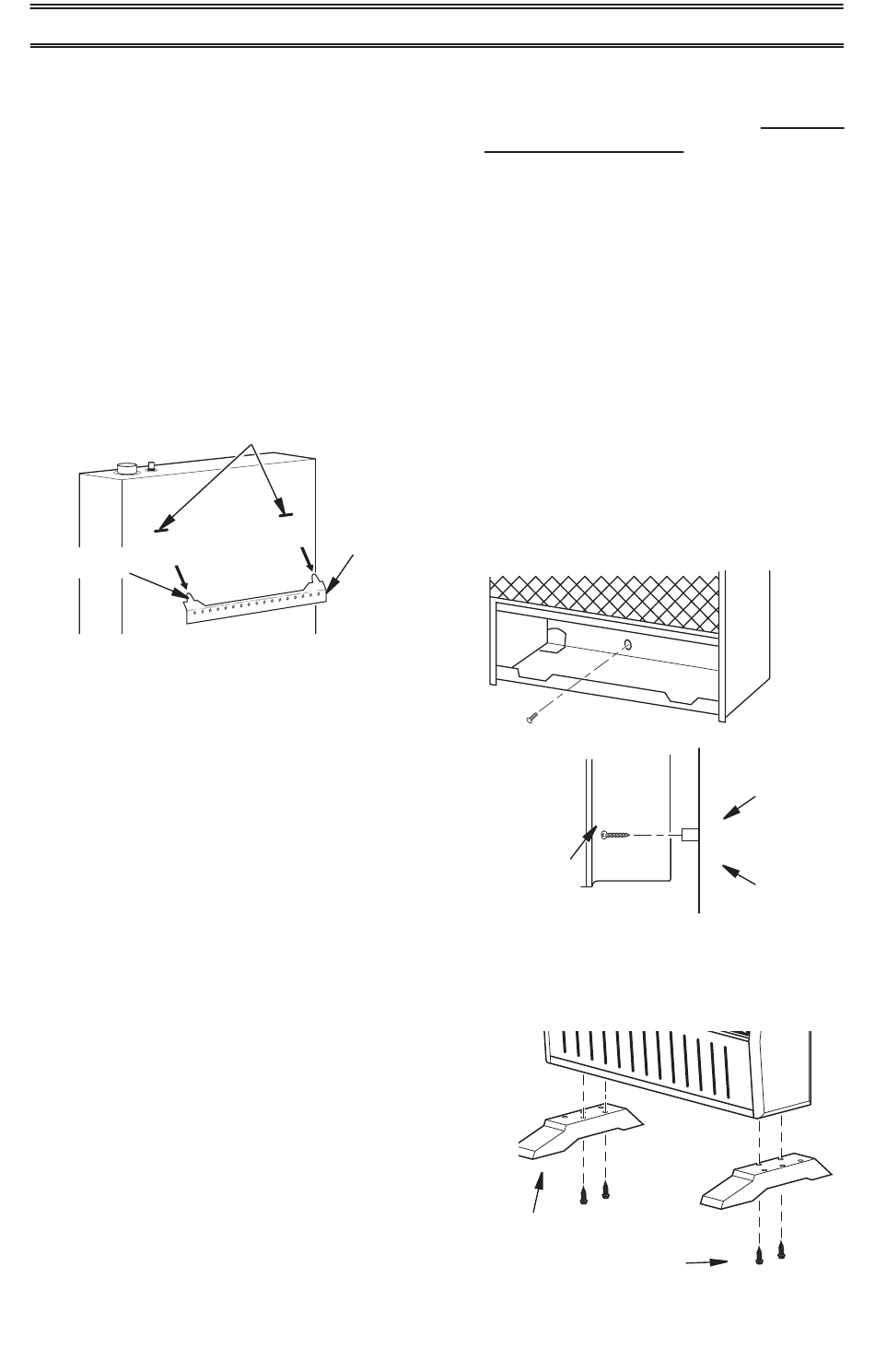

Figure 11 - Mounting Heater Onto
Mounting Bracket
Installing Bottom Mounting Bracket
1. Install bottom bracket to heater bottom
with two screws. It may be more conve-
nient to remove heater from wall bracket
to attach.
2. Place heater on wall mounting bracket.
3. Mark screw locations on wall.
4. Remove heater from mounting bracket.
Before installing heater to base, please make
sure you have a hardware packet that con-
tains the following items:
2 - Base Feet
4 - Sheet Metal Screws
1. Carefully lay heater on its back on a table
with the bottom of the heater extending
outside the table edge.
2. Attach base feet to heater using sheet
metal screws.
200158-03A
INSTALLATION
Horizontal Slots
Mounting
Bracket
(attached
to wall)
INSTALLATION OF BASE STAND
www.usaprocom.com
5. If installing bottom mounting screws into
hollow or solid wall, install wall anchors.
Follow steps 1 through 4 under Attaching
To Wall Anchor Method, page 10. If install-
ing bottom mounting screw into wall stud,
drill holes at marked locations using 9/64"
drill bit.
6. Replace heater onto mounting bracket.
7. Place spacers between bottom mounting
holes and wall anchor or drilled hole.
8. Hold spacer in place with one hand. With
other hand, insert mounting screw though
bottom mounting hole and spacer. Place
tip of screw in opening of wall anchor or
drilled hole.
9. Tighten both screws until heater is firmly
secured to wall. Do not over tighten.
Note: Do not replace front panel at this time.
Replace front panel after making gas connec-
tions and checking for leaks.
Heater
Figure 12 - Installing Bottom Mounting
(If Used)
Base Feet
Sheet Metal Screws
Figure 13 - Installing Base Feet
Front View
Wall
Spacer
Side View
Screws
11
