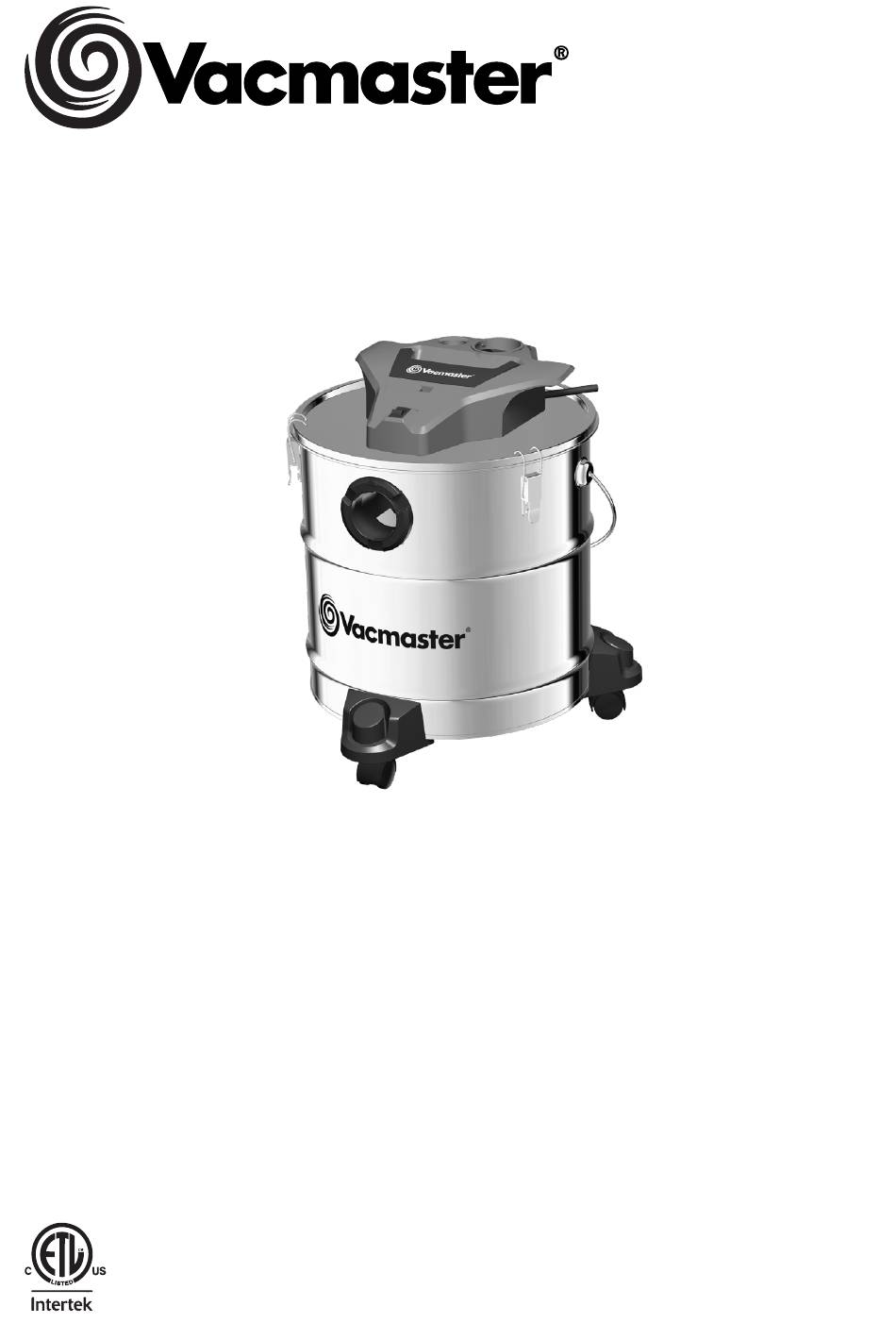

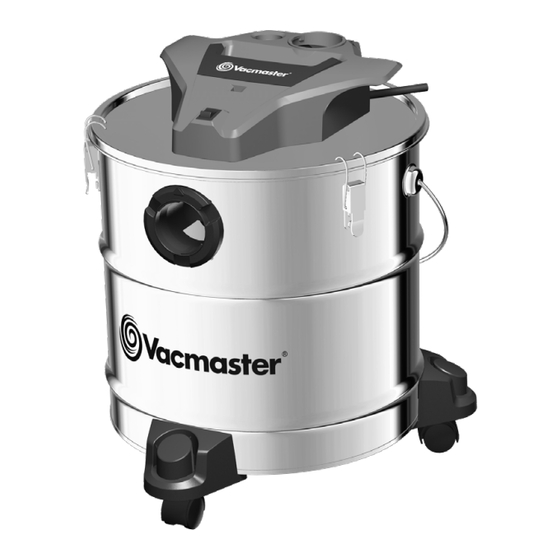

  • Page 1 Manuel d’utilisation 5 Gallon / 5 Galones / 18 L Model No. • N° de modelo • Référence de modèle EAV508S 1102 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. POR SU SEGURIDAD Lea y comprenda este manual antes de usar el producto.

  • Page 2: Table Of Contents

    Maintenance............................ Installing & Cleaning Ash Filter & Pre-Filter..................Troubleshooting ..........................Exploded View ..........................Parts List ............................Thank you for purchasing this Vacmaster ® Ash vacuum cleaner. Feel confident that with ® Vacmaster you are obtaining a high-quality product engineered for optimal performance.

  • Page 3: Warranty

    WARRANTY ® We take pride in producing a high-quality, durable product. This Vacmaster product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase (or, for deliveries in the State of California, two years from the date of delivery) under normal household use.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM Read and understand this operator’s manual and all labels on the Ash Vacuum cleaner before operating. Safety is a combination of common sense, staying alert and knowing how your vacuum works.
  • Page 5 • Turn off all controls before unplugging. • Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. • Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. •...

  • Page 6: Symbols

    SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not WARNING avoided, could result in death or serious injury.

  • Page 7: Unpacking And Checking Carton Contents

    UNPACKING & CHECKING CARTON CONTENTS Remove all contents from the box. Remove the powerhead and take out any contents inside the collection tank. Check each item against the carton contents list. Carton Contents List: Description ......Qty Powerhead .......1 Ash Filter ........1 Washable Pre-filter....1 Collection Tank......1 Hose........1...

  • Page 8: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS WARNING : DO NOT PLUG POWER CORD INTO POWER OUTLET. MAKE SURE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE ASH VACUUM. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN. 1. Remove the Ash Vacuum from the package. 2.

  • Page 9: Ash Vacuum Operation

    ASH VACUUM OPERATION WARNING : BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION ENTITLED ‘IMPORTANT SAFETY INSTRUCTIONS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUST IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.

  • Page 10: Maintenance

    MAINTENANCE EMPTYING THE COLLECTION TANK WARNING: ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET BEFORE REMOVING THE POWERHEAD FROM THE COLLECTION TANK. 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Disconnect the hose from the vacuum (Fig. 2). 3.

  • Page 11: Installing & Cleaning Ash Filter & Pre-Filter

    INSTALLING & CLEANING ASH FILTER & PRE-FILTER INSTALLING THE ASH FILTER & PRE-FILTER 1. Verify that the power cord is disconnected from the outlet (Fig. 1). 2. Remove the powerhead and place in an upside-down position. 3. Screw in the ash filter tightly onto the filter cage in a clockwise direction. Make sure the safety switch is pressed down and covered by the edge of the ash filter.

  • Page 12: Troubleshooting

    TROUBLESHOOTING WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLE SHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION Check power supply, cord, No power supply. breakers, and fuses. The ash filter is not installed Check the ash filter assembly correctly onto the collection and make sure it is installed Vacuum will not operate.

  • Page 13: Exploded View

    EXPLODED VIEW...

  • Page 14: Parts List

    PARTS LIST Part Part Number Description Quantity Powerhead Assembly 551250103 Ash Filter Collection Tank 551166108 Vacuum Port Assembly 551314102 Casters 551163108 Hose 551820102 Pre-Filter 551163109 Metal Wand...
