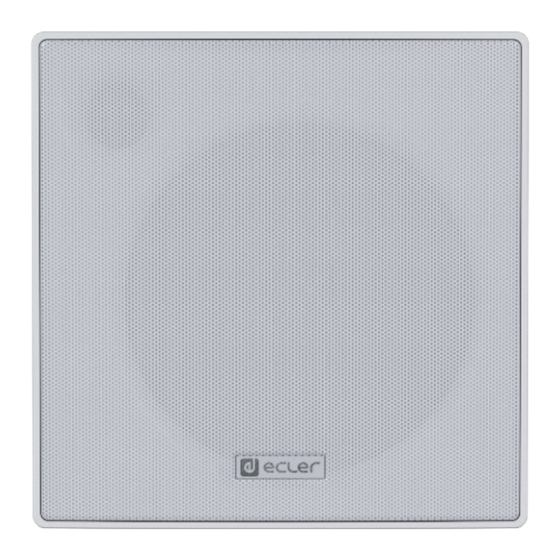

- Page 1 AMBIT-18 COMMERCIAL LOUDSPEAKERS Surface Mount Loudspeakers USER MANUAL 50-0451-0100 AMBIT-18...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PRECAUTIONS..........................3 1.1 Important Notice ......................... 3 1.2 Key Safety Directions ........................ 4 1.3 Cleaning Directions ........................4 2. WARRANTY & ENVIRONMENT ....................5 3. PACKAGE CONTENTS ....................... 5 4. DESCRIPTION & FEATURES ....................6 4.1 Main Features ..........................7 5. -
Page 3: Precautions
WARNING: Ecler products have a long lifetime of more than 10 years. This product must never be discarded as unsorted urban waste, but must be taken to the nearest electrical and electronic waste treatment centre. -
Page 4: Key Safety Directions
1.2 Key Safety Directions Read the following directions. 11. Only use attachments/accessories specified by the manufacturer. Keep the following directions. 12. Unplug the device during lightening Heed all warnings. sorts or when unused for long periods of Follow all directions. time. -
Page 5: Warranty & Environment
Recycling materials and using non-contaminant components are also top priorities in our green crusade. Ecler has deeply evaluated and analyzed the environmental impacts of all the processes involved in the production of this product, including packaging, and has alleviated, reduced and/or compensated for them. -
Page 6: Description & Features
• A unique product. No other similar box exists. The design is an exclusive Ecler design that is out of the ordinary, distinctive and, what is even more important, extremely adaptable to all kinds of situations. -
Page 7: Main Features
• Reliability and Quality above all, AMBIT cabinets have a surprisingly good quality in terms of sound considering their dimensions. This is possible thanks to their special shape, which enables a higher volume to be achieved than what could be imagined. A power capacity of 100W RMS and 90dB SPL at 1W 1m is difficult to equal in enclosures with the same features and price. -
Page 8: Connections
CONNECTIONS AMBIT-18, admits operation as high or low impedance. A 5-position switch is located at the back of the speaker and allows the selection of the operating mode. The first 4 switch positions are to be used in conjunction with a 100V line. Using a 100V speaker distribution system has various advantages regarding installation flexibility. -
Page 9: Recommended Amplifier
6. RECOMMENDED AMPLIFIER The output power of the recommended amplifier for AMBIT-18 is 200W RMS. 7. PLACEMENT Consider following general rules: • Place the acoustic enclosures on solid and firm surfaces. • Always install the supplied security system (safety sling and screw) as shown in the diagram. -
Page 10: Edge / Corner
7.3 Other installation possibilities The AMBIT-18 has two embedded nuts on their back side at a normalized distance of 60mm, which not only serve as safety point for the steel sling, but also allow attachment... -
Page 11: Technical Data
8. TECHNICAL DATA 8.1 Technical Specifications AMBIT-18 System Effective frequency range 75Hz-20kHz (-10dB) Coverage angle 125°x120° (HxV) Power handling 100W RMS / 400W Peak Sensitivity 90dB (1W/1m) Maximum SPL 110dB continuous / 116dB peak Power options 100V: 60W / 30W / 15W / 7.5W / 8Ω... -
Page 12: Mechanical Diagram
8.2 Mechanical Diagram All measurements are in mm. Ecler AMBIT18 Mechanical Diagram V IS T A A 1 1 8 1 07 20,3 25 8 20,4 5 0,6 1 1 6 5 0,6 20,4 61-1147-0100 www.ecler.com... - Page 13 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona, Spain Tel. (+34) 932238403 information@ecler.com www.ecler.com...
