  • Page 1 PROGRAMMING GUIDE SOMFY CONNECT UAI PLUS...

  • Page 2: Table Of Contents

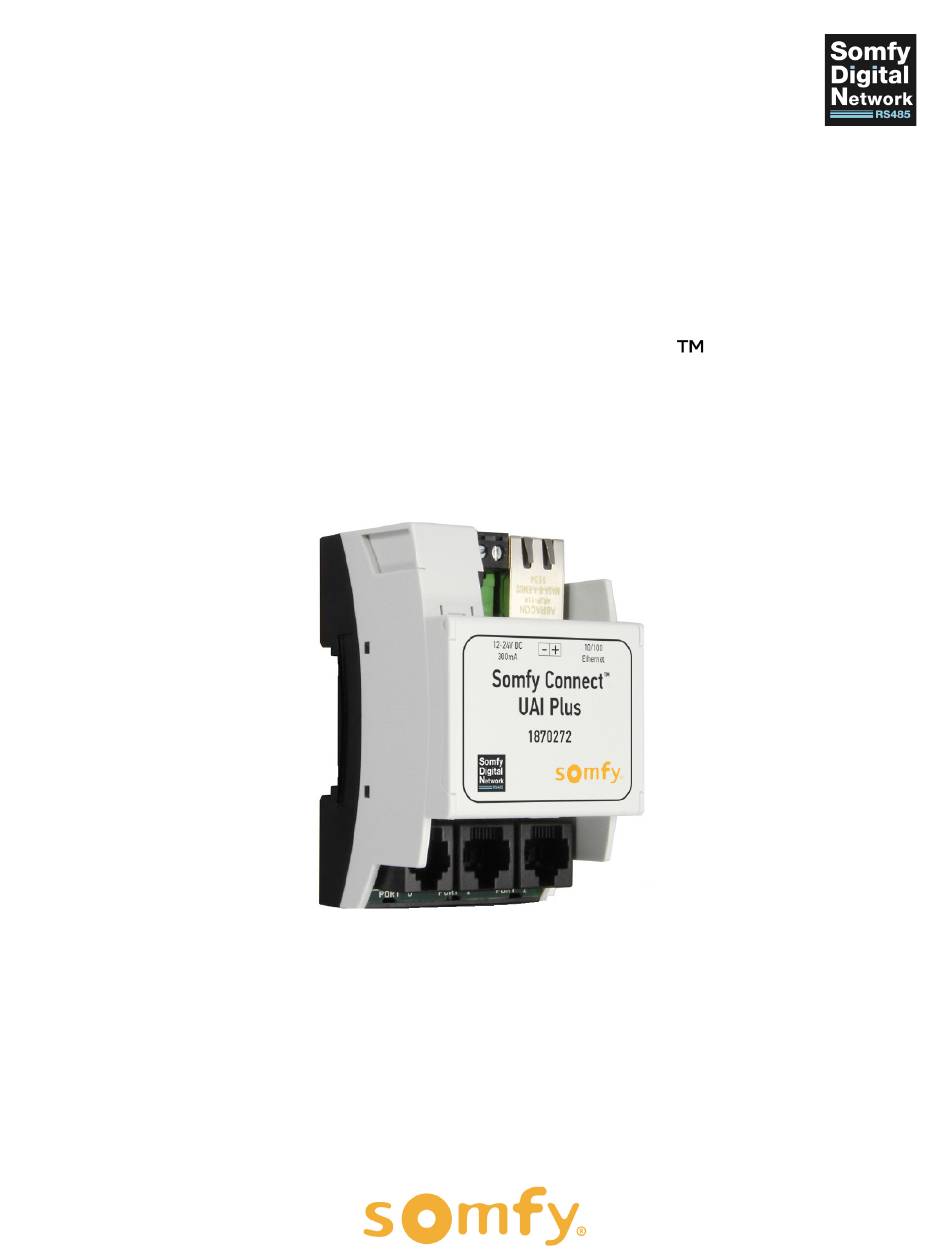

    PROGRAMMING GUIDE SOMFY CONNECT UAI PLUS V E R S I O N 4 . 0 | A U G U S T 2 0 2 4 | P r e p a r e d b y P R O J E C T S E R V I C E S...

  • Page 3: Introduction

    The Somfy Organization’s strength has been demonstrated with 50 years of experience in motorization. As leaders in the shading industry with innovation and modernization solutions for homes and commercial buildings, Somfy offers the widest range of strong, quiet motors and controls for all types of applications and technologies.

  • Page 4: Overview

    Chrome 59.0.3071 or higher NOTE: A PC running Windows 10 or higher with Chrome 59.0.3071 or higher is required for motor commissioning and Somfy Connect UAI Plus firmware updates. A mobile device can be used to control motors once commissioning is complete.

  • Page 5: Installation

    M O U N T I N G & P O W E R The Somfy Connect UAI Plus is mounted on a DIN rail either near an automation system, network switch, or anywhere close to the beginning of an SDN network.

  • Page 6: Connect

    IV. CONNECT 1. DISABLE the WiFi on the computer, unless connecting to the UAI Plus over a WiFi network 2. CONNECT Windows PC to the Ethernet Port on the UAI Plus 3. OPEN the File Explorer 4. DOUBLE-CLICK the Network folder NOTE: If prompted that network discovery is turned off, SELECT “OK”.

  • Page 7: Update

    V. UPDATE NOTE: Ensure the UAI Plus is updated to the most current firmware before installing on the SDN system. It may require running the update process multiple times until the UAI Plus is up to the latest version. UAI PLUS HOMEPAGE 1.

  • Page 8: Virtual Keypads

    VI. VIRTUAL KEYPADS T E S T & C O N T R O L 1. From the UAI Plus homepage, SELECT the “ALL” button (Shown below) This lists all the groups that are programmed to the UAI Plus NOTE: This allows testing and control for up to four groups. 2.

  • Page 9: Settings & Properties

    VII. SETTINGS & PROPERTIES From the UAI Plus Homepage, HOVER OVER the three bars on the top right of the Homepage then SELECT “Settings” (Shown on the right) The Settings & Properties page will open displaying the following information: UAI PLUS HOMEPAGE NOTE: SELECT Restart to apply changes to Settings, Ethernet, UDP and Telnet parameters SETTING...

  • Page 10: Sdn Commissioning

    VIII.SDN COMMISSIONING D I S C O V E R & P R O G R A M 1. OPEN the SDN tab from the top menu of the Settings & Properties page 2. SELECT the magnifying glass to auto discover all motors found on the SDN system All found motor Node IDs will populate in the left box under the Motors tab 3.

  • Page 11: Groups

    G R O U P S 1. SELECT the “Groups” tab to create, delete, edit motor groups, and add individual motors to groups 2. SELECT the + sign to create a new group and name the group 3. SELECT the Links tab to the right to open a grid listing all the motors 4.

  • Page 12: Movements

    M O V E M E N T S Select a motor or group, then select the control buttons • EYE – Wink • ARROW UP – Move to upper limit • ARROW UP WITH LINE – Move up to the next IP, if set, or the upper limit if there are none set •...

  • Page 13: Appendix

    All the Groups that were created in the UAI Plus • • The Group’s Hexadecimal address The Group’s inverted address which is used when programming the Somfy DecoFlex Keypads using • the Set pro by Somfy Configuration software Download the latest Software: www.somfypro.com/services-support/software...
  • Page 14 APPENDIX [ A P P E N D I X B ] F A C T O R Y R E S E T Below are two ways to factory reset the UAI Plus: IMPORTANT: Generate the Integration Report before performing a Factory Reset. When a Factory Reset is performed, the motors will not lose their programming, the UAI+ IP addresses and the SDN Group List need to be recreated to restore project operation.
  • Page 15 Follow the steps to access Service & Support. About Somfy® For over 50 years, Somfy has been pioneering innovative motorization and automated solutions for window coverings and exterior shading products. With comfort, ease of use, security, and sustainability in mind, our seamless and connected solutions are designed to help people make the move to living spaces impactful for humans and with a reduced impact on nature.
