INTEGRATION GUIDE
LUTRON®
INTEGRATION
via SOMFY CONNECT™
UAI PLUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONNECT UAI PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY CONNECT UAI PLUS

Summary of Contents for SOMFY CONNECT UAI PLUS

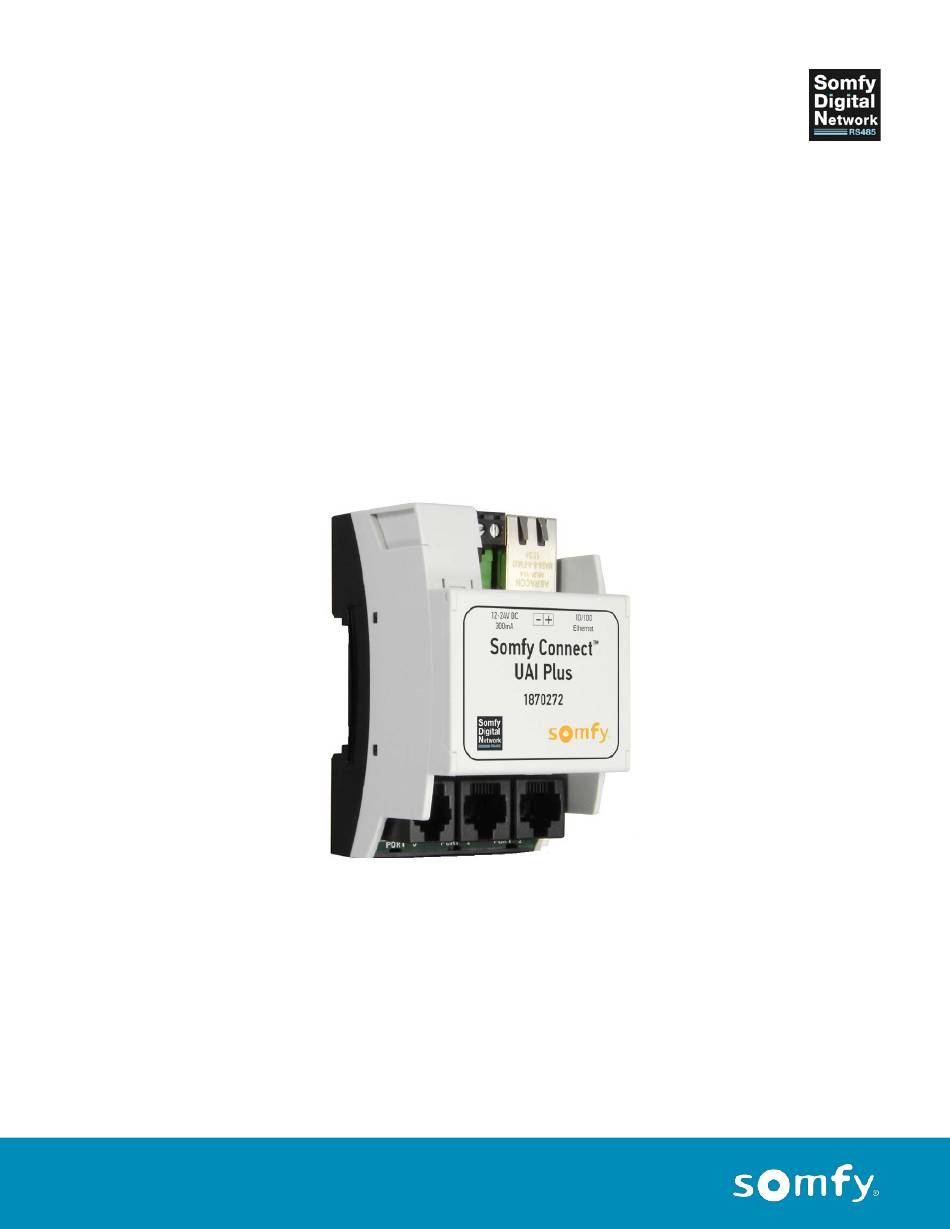

  • Page 1 INTEGRATION GUIDE LUTRON® INTEGRATION via SOMFY CONNECT™ UAI PLUS...

  • Page 2: Table Of Contents

    INTEGRATION GUIDE LUTRON® INTEGRATION via UAI PLUS V E R S I O N 1 . 0 O C T O B E R 2 0 2 0 P r e p a r e d b y P R O J E C T S E R V I C E S TABLE OF CONTENTS OVERVIEW --------------------------------------------------------- 3 DESCRIPTION...

  • Page 3: Overview

    NOTE: A PC running Windows 10 or higher with Chrome 59.0.3071 or higher is required for motor commissioning and Somfy Connect UAI Plus firmware updates. A mobile device can be used to control motors once commissioning is complete. C O N N E C T I O N S & L E D s...

  • Page 4: Installation

    M O U N T I N G & P O W E R The Somfy Connect UAI Plus is mounted on a DIN rail either near an automation system, network switch, or anywhere close to the beginning of an SDN network.

  • Page 5: Lutron System Settings

    III. LUTRON SYSTEM SETTINGS L U T R O N N E T W O R K S E T T I N G S The Lutron Integrator must disable DHCP and provide an assigned IP Address, entered in the UAI Plus Ethernet Settings NOTE: A Static IP Address is required to maintain Telnet connection HOMEWORKS QS: RADIO RA2:...

  • Page 6: Telnet Settings

    Passphrase, entered in the UAI Plus Telnet Settings NOTE: Telnet channels cannot be shared. If running the Lutron Home Control + app and the Somfy Connect UAI Plus application, it is necessary to establish two separate Telnet channels for these two operations to occur.

  • Page 7: Integration Settings

    L U T R O N I N T E G R A T I O N S E T T I N G S For the Somfy Connect UAI Plus to see Lutron devices they must be enabled for integration.

  • Page 8: Uai Plus System Settings

    IV. UAI PLUS SYSTEM SETTINGS C O N N E C T I N G T O U A I P L U S I N T E R F A C E 1. Disable the WiFi on the computer, unless connecting to the UAI Plus over a WiFi network 2.

  • Page 9: Network & Integration Settings

    NOTE: Prior to integration, confirm the UAI Plus and SDN System are fully configured and functional. From the Somfy Connect UAI Plus homepage, hover over the three bars on the top right then click “Settings”: Open the UAI Plus tab to enter the UAI Plus Settings & Properties page:...

  • Page 10: Sdn Integration Report

    S D N I N T E G R A T I O N R E P O R T To generate the SDN Integration Report, hover over the SDN tab then click “Report”. The Integration Report is downloaded as a .csv file and viewed in Excel. The Integration Report lists the available group addresses required for Lutron integration.

  • Page 11: Integration Configuration

    Device ID. The Lutron Device ID consists of three parts: DEVICE ID# – Individual Lutron Device identifier which can not be changed in the Somfy Connect UAI Plus BUTTON# – The specific keypad button, timeclock event, occupancy sensor and other devices COMMAND –...
  • Page 12 A D D I N G L U T R O N D E V I C E S There are two methods to add Lutron Device: USING THE LUTRON INTEGRATION REPORT: The Lutron Integration Report details all programmed device names, device IDs, button numbers and their text. Only the device ID is represented in the integration guide.
  • Page 13 C O M M A N D M A P P I N G L U T R O N D E V I C E S Command mapping links Lutron button presses to trigger SDN group commands. 1) In the Table tab, right-click in the LUTRON ID column to open the Device window 2) Select the device to control this particular group 3) Enter the button number...
  • Page 14 T E S T I N G & V A L I D A T I O N TROUBLESHOOTING: Refer to the Lutron Telnet tab to confirm the connection is active. (See “Lutron System Settings” section of this guide) CONFIRM LUTRON BUTTON ID, BUTTON # AND ACTION: With the Telnet tab open, make the physical button press to view the device information.
  • Page 15 B U T T O N P R O G R A M M I N G E X A M P L E S Sequential Programming a. Right-click in the Device column then select MOTOR b. Right-click in the Command column then select SEQUENCE NOTE: Sequence cycles Up, Stop, and Down commands.
  • Page 16 Over 270 million users worldwide enjoy the more than 170 million motors produced by Somfy. During the past 50 years, Somfy engineers have designed products for both the commercial and residential markets to motorize window coverings such as interior shades, wood blinds, draperies, awnings, rolling shutters, exterior solar screens and projection screens.
