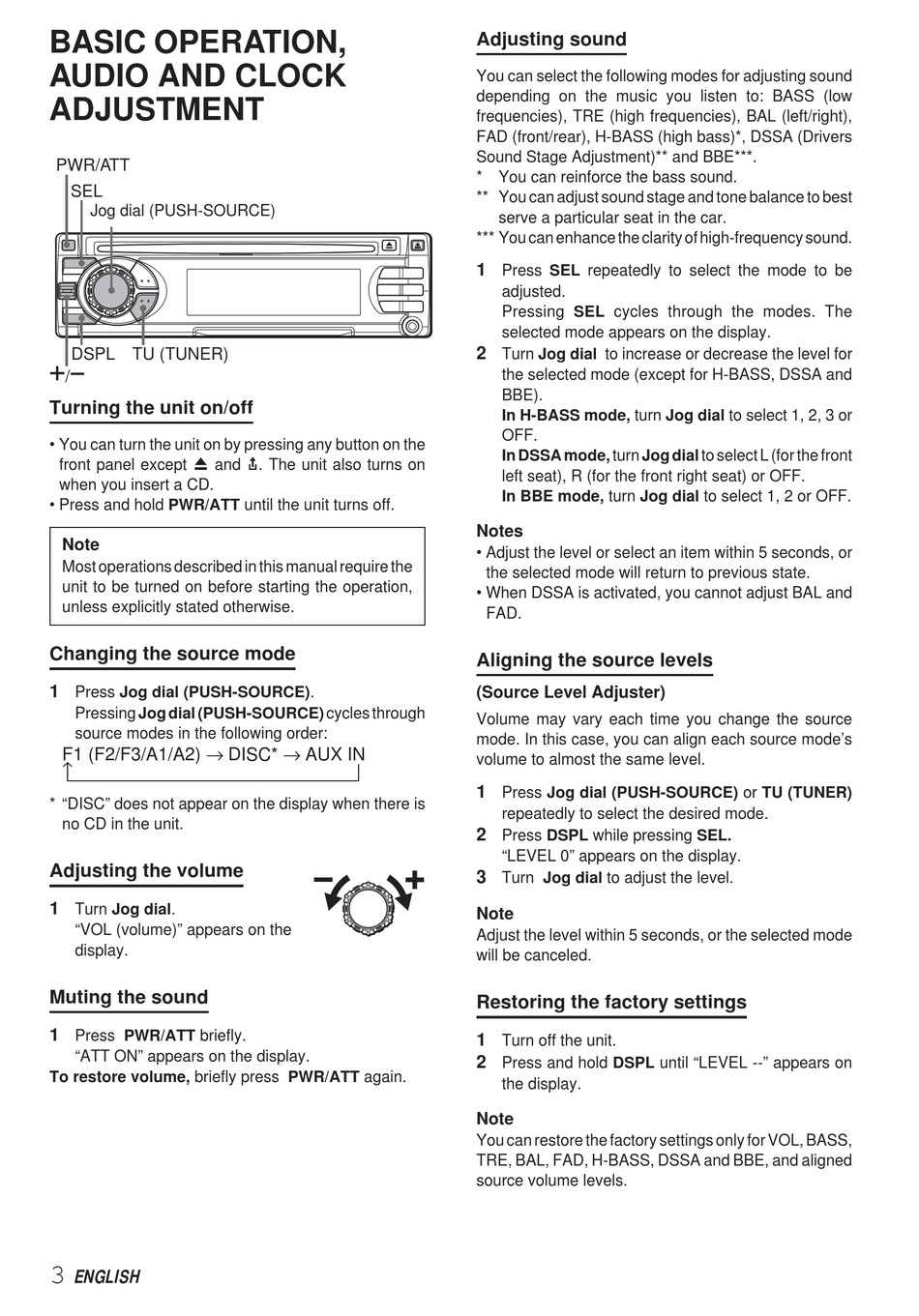

BASIC OPERATION,
AUDIO AND CLOCK
ADJUSTMENT
PWR/ATT
SEL
Jog dial (PUSH-SOURCE)
DSPL TU (TUNER)
+ / -
Turning the unit on/off
• You can turn the unit on by pressing any button on the
front panel except z and %. The unit also turns on
when you insert a CD.
• Press and hold PWR/ATT until the unit turns off.
Note
Most operations described in this manual require the
unit to be turned on before starting the operation,
unless explicitly stated otherwise.
Changing the source mode
1
Press Jog dial (PUSH-SOURCE).
Pressing Jog dial (PUSH-SOURCE) cycles through
source modes in the following order:
F1 (F2/F3/A1/A2)
* "DISC" does not appear on the display when there is
no CD in the unit.
Adjusting the volume
1
Turn Jog dial.
"VOL (volume)" appears on the
display.
Muting the sound
1
Press PWR/ATT briefly.
"ATT ON" appears on the display.
To restore volume, briefly press PWR/ATT again.
3
ENGLISH
DISC*
AUX IN
Adjusting sound
You can select the following modes for adjusting sound
depending on the music you listen to: BASS (low
frequencies), TRE (high frequencies), BAL (left/right),
FAD (front/rear), H-BASS (high bass)*, DSSA (Drivers
Sound Stage Adjustment)** and BBE***.
* You can reinforce the bass sound.
** You can adjust sound stage and tone balance to best
serve a particular seat in the car.
*** You can enhance the clarity of high-frequency sound.
1
Press SEL repeatedly to select the mode to be
adjusted.
Pressing SEL cycles through the modes. The
selected mode appears on the display.
2
Turn Jog dial to increase or decrease the level for
the selected mode (except for H-BASS, DSSA and
BBE).
In H-BASS mode, turn Jog dial to select 1, 2, 3 or
OFF.
In DSSA mode, turn Jog dial to select L (for the front
left seat), R (for the front right seat) or OFF.
In BBE mode, turn Jog dial to select 1, 2 or OFF.
Notes
• Adjust the level or select an item within 5 seconds, or
the selected mode will return to previous state.
• When DSSA is activated, you cannot adjust BAL and
FAD.
Aligning the source levels
(Source Level Adjuster)
Volume may vary each time you change the source
mode. In this case, you can align each source mode's
volume to almost the same level.
1
Press Jog dial (PUSH-SOURCE) or TU (TUNER)
repeatedly to select the desired mode.
2
Press DSPL while pressing SEL.
"LEVEL 0" appears on the display.
3
Turn Jog dial to adjust the level.
Note
Adjust the level within 5 seconds, or the selected mode
will be canceled.
Restoring the factory settings
1
Turn off the unit.
2
Press and hold DSPL until "LEVEL --" appears on
the display.
Note
You can restore the factory settings only for VOL, BASS,
TRE, BAL, FAD, H-BASS, DSSA and BBE, and aligned
source volume levels.
