Global Industrial WB413263 User Manual

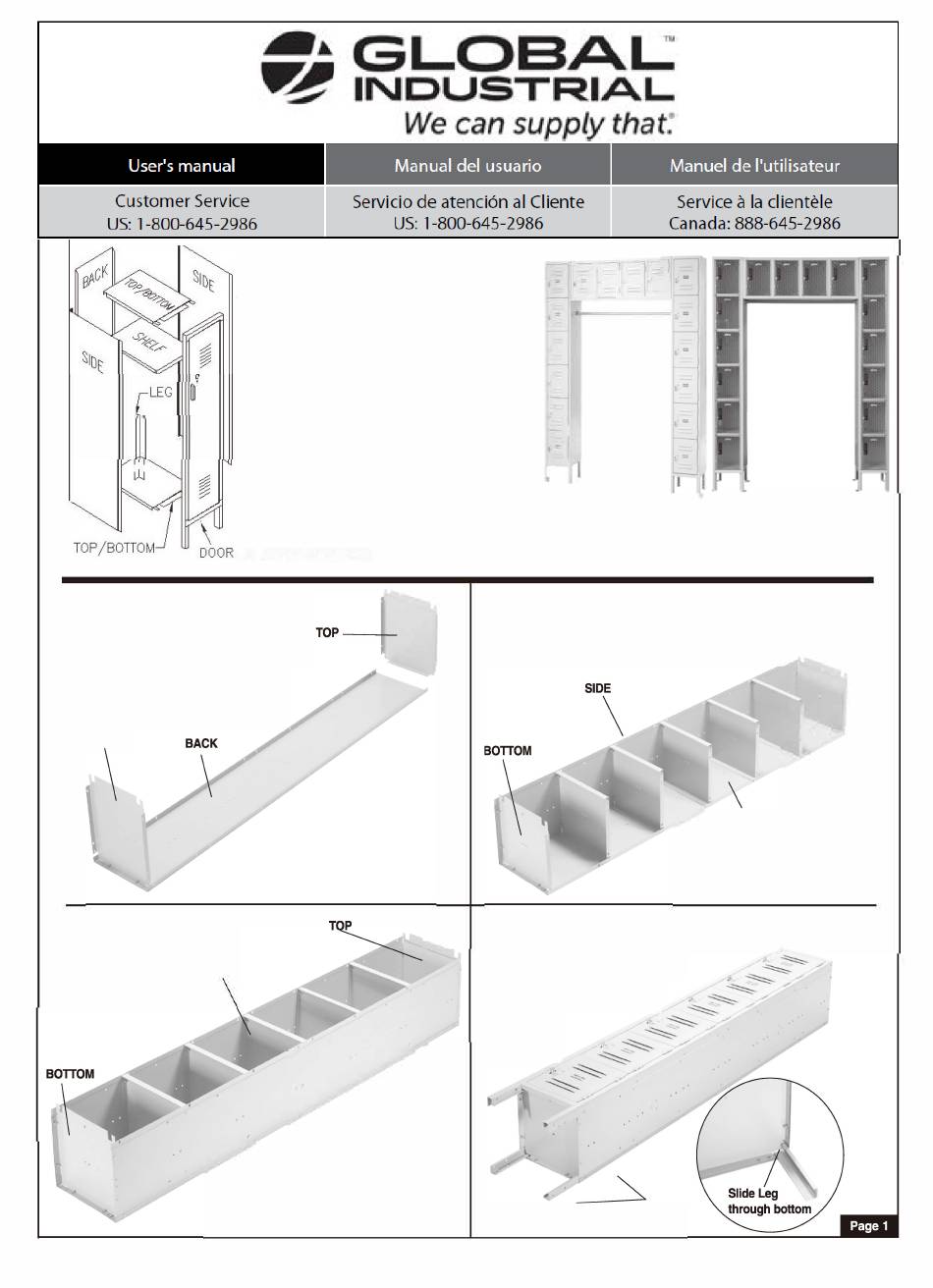

Locker Assembly
.
1
Bolt together top and bottom with bends
facing down and the back with the bends
facing up. Top and bottom are identical.
For single and double-tier models, bolt
hook to back.
BOTTOM
3.
Bolt on other side with rear
bend facing in.
SHELF
Before Assembly
Please read the complete instructions.
Check for missing or damaged parts.
Only use the specified hardware.
CAUTION: Some parts have sharp
edges and corners, wear gloves during
assembly.
Assembly will re q uire the following tools:
• 2 drift pins ( or 2 nail punches ) for hole
alignment
• 3/8" socket wrench
Lockers should be assembled on a flat,
level surface and anchored according to
the instructions found in Section 7 & 9.
& FRAME ASS EMBLY
\
SIDE
e ]'
I
= = ..,
___J. ,_· -�
,
=
,
=
, =
•
-j
2.
Bolt on side with bend in rear and facing in. Omit 2 bolts near bottom rear
for legs. Install shelf by bolting to side with bend facing down and 45
bend in front. (See Section 7 Punching Patterns for single, double and 6-
tier shelf hole locations.)
4.
Insert rear legs in each end of locker. Bolt each leg in
two places.
Attach Door Frame Assembly. Leave
top, center and bottom bolts out
if attaching to additional
lockers.
Bolt here
16 Person Locker
�
'
TOP
\
SHELF
BACK
SIX TIER
ASSEMBLY
°
