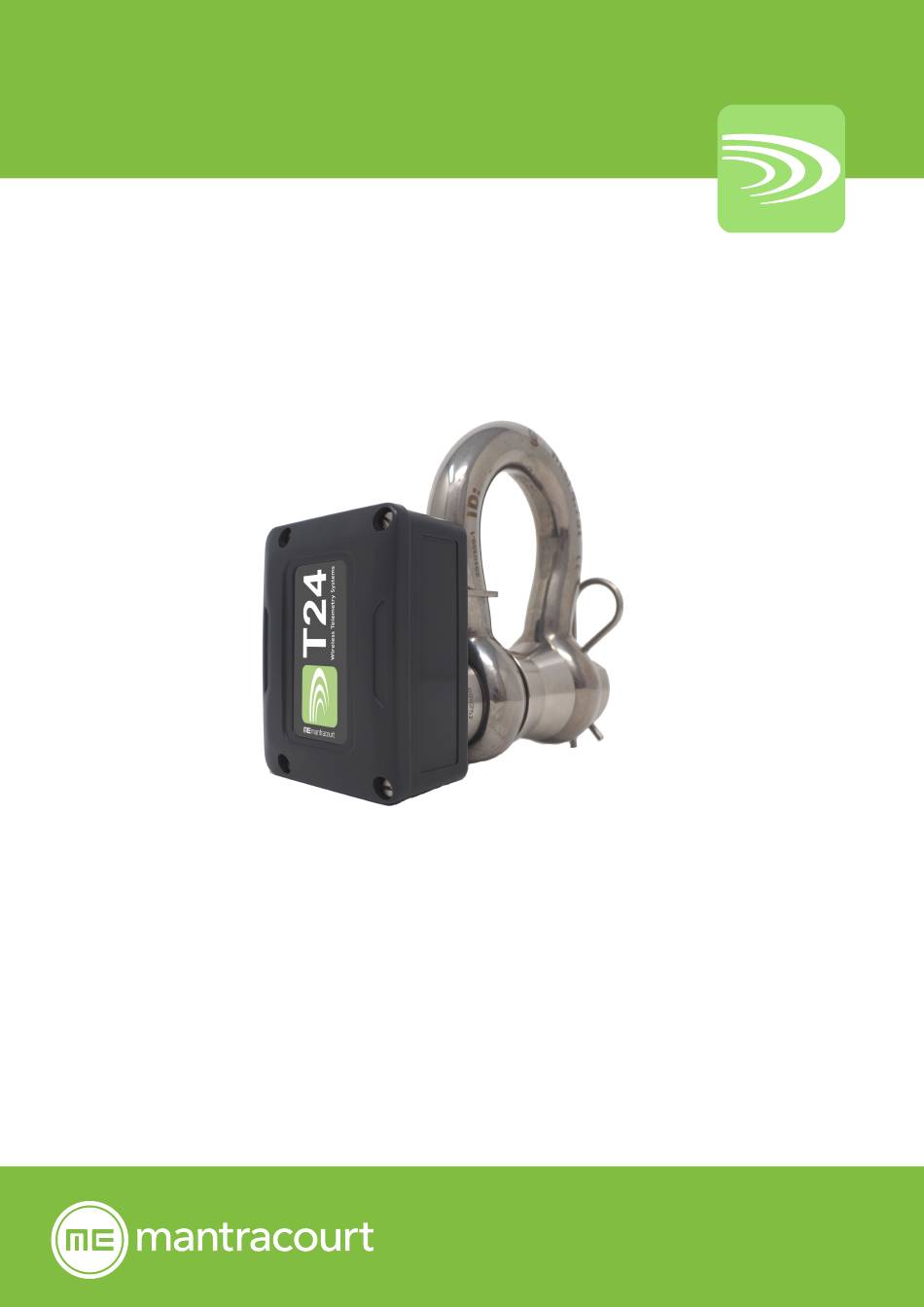

T24 Shackle Original Instructions
mantracourt.com
T24
Wireless Telemetry

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T24 and is the answer not in the manual?

Questions and answers

Related Manuals for Mantracourt T24

Summary of Contents for Mantracourt T24

  • Page 1 T24 Shackle Original Instructions mantracourt.com Wireless Telemetry...

  • Page 2: Introduction / Overview

    Introduction / Overview T24 is a portable modular wireless weighing system offering real-time load monitoring for a wide variety of applications without the need for cabling. T24 shackles enable users to know precise loads on any given point thereby ensuring structures and rigging points are balanced and within safe working loads.
  • Page 3 Each pin and bow must be kept as a pair and not interchanged. The bow is marked with the ID of the pin • it is associated with as shown. The T24 shackle is calibrated with the shackle markings and the label visible as shown below and must be • used in that orientation.
  • Page 4 If using the shackle as part of a bridle, remember that the load in legs of the bridle will increase with the angle. If the T24 shackle pin is not connected to that part of the leg then it will not register this increase.

  • Page 5: Inspection And Maintenance

    Mantracourt products are used within their published parameters at all times. T24 bows are subjected to a 200% proof load (static test coefficient of 2) and T24 pins are subjected to a 150% proof load (static test coefficient of 1.5) before being calibrated as a whole assembly.
  • Page 6 Mantracourt manufacture a large range of receivers and repeaters that is too great to go into useful detail here. Please talk to your distributor or visit our website to find out about other T24 products and how to use your shackles with them.

  • Page 7: Eu Declaration Of Conformity

    The Drive, Farringdon, Exeter, Devon, EX5 2JB Country: United Kingdom Declare under our sole responsibility that the T24 Telemetry Product Range is in conformity with the following relevant Union harmonisation legislation: LVD Directive 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU...
  • Page 8 In the interests of continued product development, Mantracourt Electronics Limited reserves the right to alter product specifications without prior notice. www.mantracourt.com Manufactured in the UK by: Mantracourt Electronics Ltd, The Drive, Farringdon, Exeter, Devon, EX5 2JB, UK Distributor: Mantracourt Electronics Limited...
