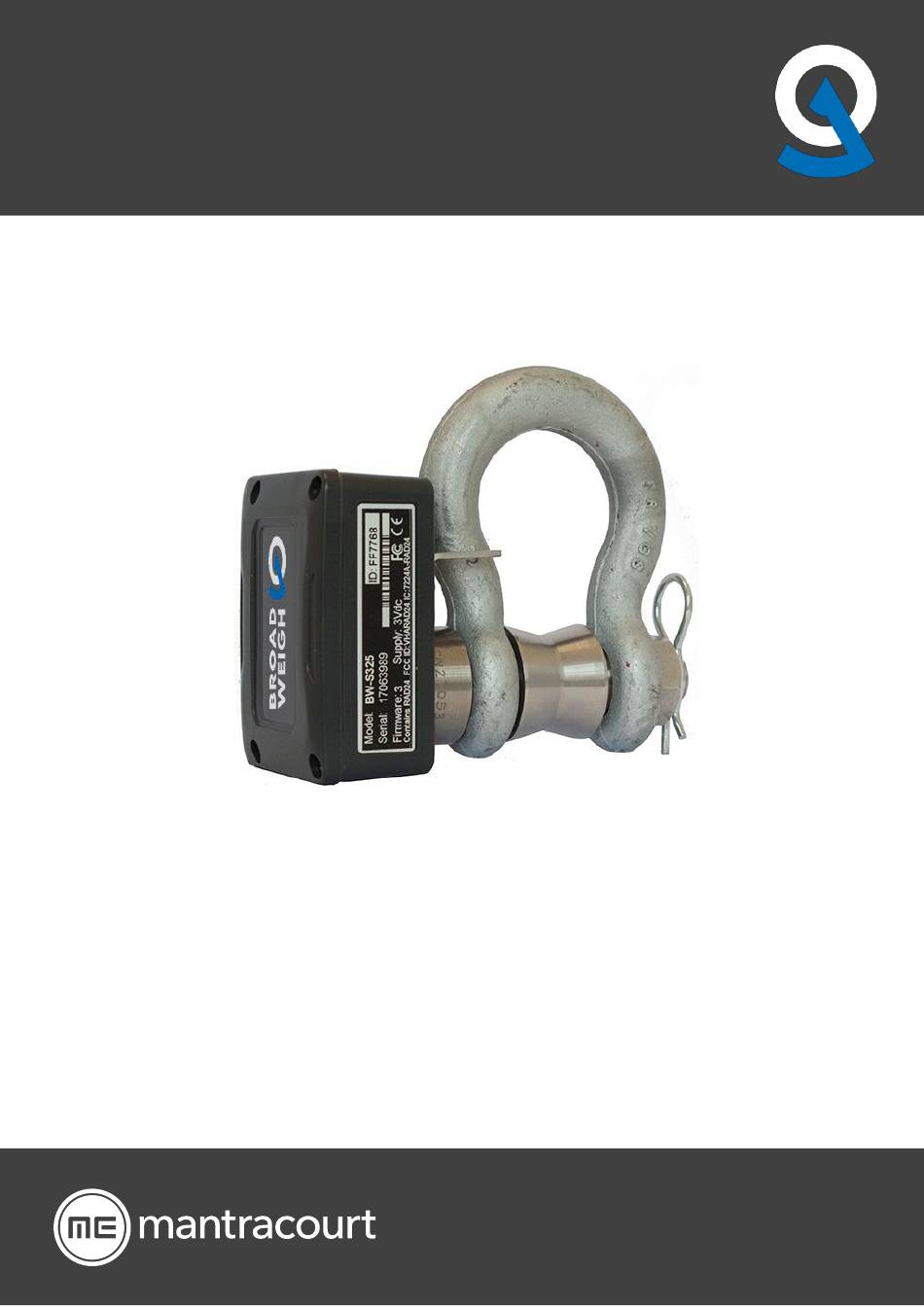

- Page 1 Broadweigh ® Bluetooth ® Original Instructions Broadweigh Load monitoring for live events Solved by Mantracourt ®...
- Page 2 Has the tile or inputs been tared? ..............................13 Has an unnecessary or incorrect function been used? ......................13 Are the units are as expected? ............................... 13 Declaration of Conformity ............................14 Warranty ..................................15 Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual...
-
Page 3: Introduction / Overview
Bluetooth Smart, broadcast advertising data which enables users to deliver the same data to multiple receivers and low power paired connections which can be used in a point to point connection for configuration. Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual... -
Page 4: Navigating This Manual
There may be a reduction in accuracy if these are swapped.) Shackles must be correctly selected for the specific application required. As well as safe working load, physical size and fitment with other components needs to be considered. Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual... - Page 5 The shackle must be used in conjunction with a bobbin, nut and retaining clip as shown: Any out of alignment, side or twist loading will affect the readings given as well as load the shackle in a way that it was not designed for. Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual...
- Page 6 Broadweigh shackle pin is not connected to that part of the leg then it will not register this increase. No part of the shackle, pin, bobbin should be modified by welding, grinding or similar. Always ensure that the load is stable. The allowable operating temperature range is -20°C to +50°C. Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual...
- Page 7 Broadweigh is not designed to be used as part of a safety critical control system. If it is required for one then the integrator would need to fully assess its suitability. Broadweigh shackle assemblies are subjected to a 150 % proof load (static test coefficient of 1.5) before being calibrated. Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual...
-
Page 8: Inspection And Maintenance
Do not overtighten screws when replacing batteries. Damage caused by overtightening is not covered under manufacturer warranty. Remove the batteries if being stored for an extended period. Leaking batteries can damage the circuitry and pin. Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual... -
Page 9: Pre Use Checks
It is a good idea to note down all the shackles’ data tags and where they are located within the rig plot. This is crucial for identifying which loads are being measured and where. Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual... -
Page 10: Getting Started With The App
This app requires access to the Bluetooth Services which are part of Location Services so the user may need to grant permission for the app to access Location even though the app does not use any location data. Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual... - Page 11 Click + the project(5) (you can only see transmitters that have been linked) Either assign manually by entering known data tags or use the magnifying Click + glass to pick from a list. Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual...
- Page 12 Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual...
- Page 13 Click to edit the tile. Click Click to add more tiles (see previous page) to delete it. Press and hold a tile to then drag it to or edit tiles another position Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual...
-
Page 14: Troubleshooting
Check the expression field of the tile. Remember that any multiplication will be applied before a unit conversion. Are the units are as expected? The settings in the tiles allow unit conversion. Make sure that they are set as required. Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual... -
Page 15: Eu Declaration Of Conformity
Declaration of Conformity EU DECLARATION OF CONFORMITY We, the undersigned: Name of Manufacturer: Mantracourt Electronics Ltd Address: The Drive, Farrington, Exeter, Devon, EX5 2JB Country: United Kingdom Declare under our sole responsibility that the Broadweigh Bluetooth Product Range is in... -
Page 16: Warranty
(1) year from the date of dispatch. If the 'Mantracourt' product you purchase appears to have a defect in material or workmanship or fails during normal use within the period, please contact your Distributor, who will assist you in resolving the problem. - Page 17 Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual...
- Page 18 Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual...
- Page 19 Mantracourt Electronics Limited BroadWeigh Blue Telemetry User Manual...
- Page 20 In the interests of continued product development, Mantracourt Electronics Limited reserves the right to alter product specifications without prior notice. www.mantracourt.com Manufactured in the UK by: Mantracourt Electronics Ltd, The Drive, Farringdon, Exeter, Devon, EX5 2JB, UK Distributor: Mantracourt Electronics Limited...
