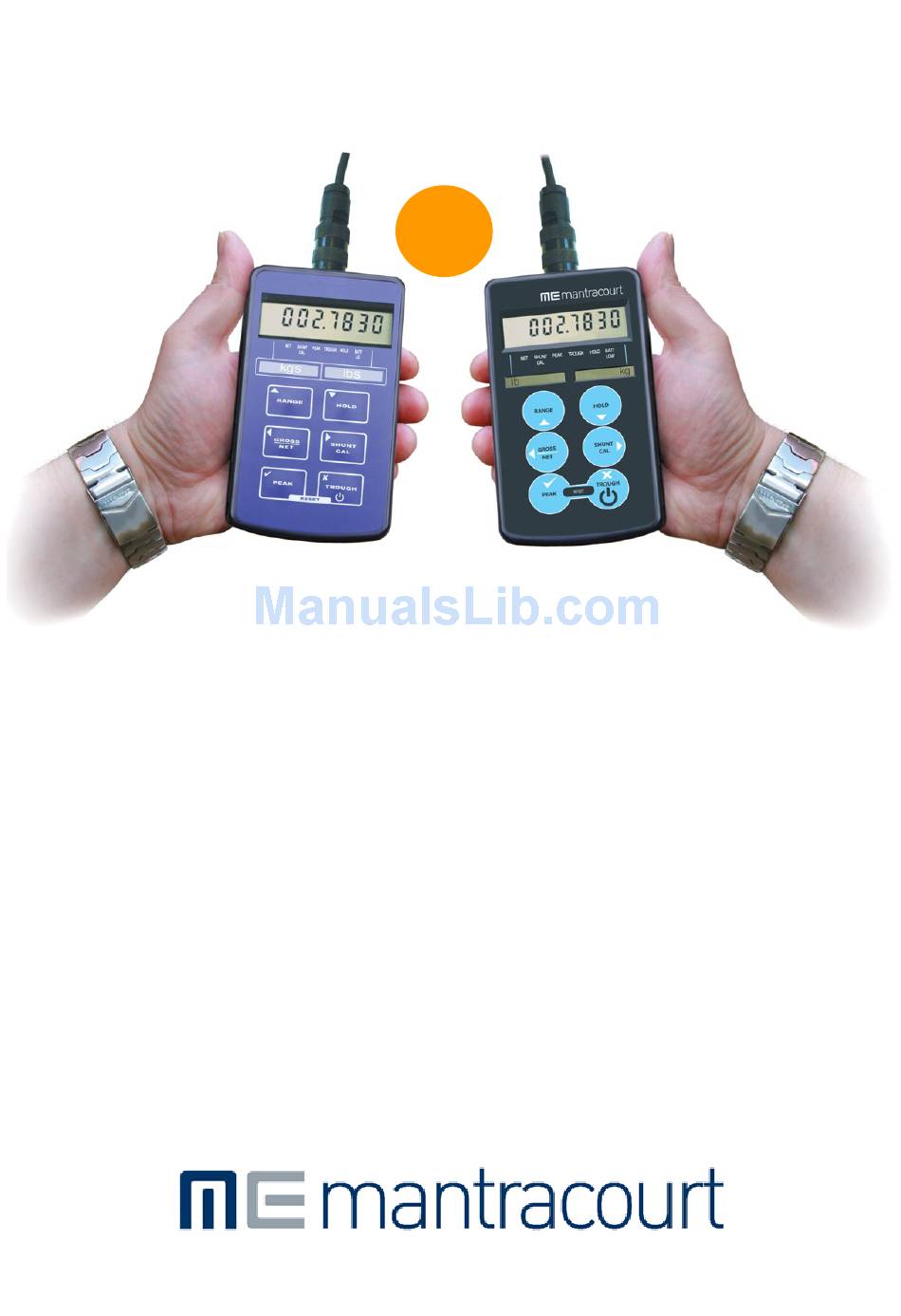

- Page 1 TEDS Enabled TEDS enabled 2 label options available for the PSD Strain Gauge or Load Cell Hand Held Display TEDS enabled User Manual MICRON METERS www.micronmeters.com metersinfo@micronmeters.com...
-
Page 2: Table Of Contents
Calibration Menu ......................12 Millivolt per Volt Calibration Menu ..................14 Operation Features ......................15 Normal Display Operation ....................15 Switching the PSD On/Off ....................15 RANGE Button ........................ 15 HOLD Button ........................16 GROSS/NET Button ......................16 SHUNT CAL Button ......................16 PEAK Button ........................ -
Page 3: What Is Teds
And because all sensors produced according to the standard will carry the same basic identically formatted self-identification information, you will be able to mix and match sensors and applicable signal conditioners across manufacturers. Mantracourt Electronics Limited PSD User Manual... -
Page 4: Advantages
Better sensor tracking by storing data sheets electronically • Improved accuracy by providing detailed calibration information • Simplified asset management by eliminating paper data sheets • Reliable sensor location by identifying individual sensors electronically Mantracourt Electronics Limited PSD User Manual... -
Page 5: Introduction
50mV/V. Bridge resistances from 85Ω upwards can be used with the PSD. Configuration and calibration of the PSD is achieved using the front panel push buttons to navigate through a very simple menu structure. -
Page 6: Electrical Connection Information
PIN 5 TEDS RS232 Port Connections If the PSD has been ordered with the optional RS232 output, then this will be available via a 8 pin 723 series Binder connector. The wiring for this is as detailed below:- PIN 1... - Page 7 There are six push buttons on the front panel of the PSD, which are available for use in normal operation. Each of these is described below:- Front Panel Button Function of Button in Normal Operation Mode To switch the PSD ON or OFF press and hold the...
-
Page 8: Menu Structure
Menu Structure The PSD has two menus, details of which are outlined below:- A CONFIGURATION MENU, which enables the user to tailor the operation to meet a specific application requirement. The values selected in the CONFIGURATION MENU are completely independent for each range. - Page 9 InPut LO 0000000 dISP LO 0000000 InPut HI 0000000 dISP HI 0000000 donE SEt OFFS 0000000 donE CAL VAL? SEt 9Ain 0000000 tedS EnAbLEd? RETURN TO NORMAL DISPLAY MODE * Note:Only when TEDS is disabled Mantracourt Electronics Limited PSD User Manual...
-
Page 10: Millivolt Per Volt Calibration Menu Structure
Millivolt per Volt Calibration Menu Structure To access the millivolt CALIBRATION MENU, Press and hold for 10 seconds Mantracourt Electronics Limited PSD User Manual... -
Page 11: Configuration Menu
OUEr Values between -9999999 +9999999 can be entered, using the arrows to select a digit and the arrows to increment or decrement the digits. Press accept the value and move onto the next parameter. Mantracourt Electronics Limited PSD User Manual... - Page 12 The RS232 output is an option that has to be rS232 ordered with the PSD. To conserve battery life, it is suggested that the RS232 output is disabled, when it is not required.
-
Page 13: Calibration Menu
To select 50mV/V you need to power down the unit and access the internal circuit board. Move link LK1 and place it onto JP1. Power on the PSD and return to this point of the calibration menu. You will notice that the menu parameter has changed to SEnS 50.0, press... - Page 14 EnAbLEd? if you do not press otherwise press . If you have selected enabled, two flashing indicators will appear. For more detailed TEDS calibration information, please refer to the TEDS section of the manual. Mantracourt Electronics Limited PSD User Manual...
-
Page 15: Millivolt Per Volt Calibration Menu
5mV/V offset. 50 OFFS Here the factory offset value can be changed to a measured value (see Milli-Volt Calibration Procedure – back end of manual). Once the derived value has been entered Press to confirm. Mantracourt Electronics Limited PSD User Manual... -
Page 16: Operation Features
Normal Display Operation The PSD has a full 7 digit display, which can be scaled using the calibration menu to suit the application it is to be used in. The display can display the instantaneous, peak or trough values. It is also possible to hold the display value (this only operates when not in peak or trough mode). -
Page 17: Hold Button
PEAK Button When pressed this button puts the PSD into peak mode. This will display the highest display reading and hold it on the display until it is reset or a higher value is reached. To reset the peak display, press the peak and trough buttons simultaneously. -
Page 18: Configuration Menu Parameters
The benefit is that the battery life, based on a 350Ω sensor bridge being connected, increases from 45 hours to 450 hours. It is also important to remember that when the PSD is re-calibrated with a sensor, the power save facility will be automatically turned off. The power save facility will therefore need to be re-activated after calibration has been completed. - Page 19 OFF). i.e. if this was set to 25, then if the PSD detects no keyboard activity for a continuous 25 minute period, then the PSD will power down, to conserve power. If keyboard activity is detected at any time during the 25 minute period, then the time period is restarted.
-
Page 20: Calibration Menu Parameters
If however, a higher sensitivity sensor is used with the PSD, it will be necessary to gain access to the internal PCB (you must turn the PSD off) to move link LK1 to JP1 (see picture below) to allow the PSD to accept sensitivities of up to 50mV/V. -
Page 21: Calibration Procedures
PSD automatically. If this is not possible, then the sensitivity figure (in mV/V) from the sensor calibration certificate can be used to scale the PSD, by using the tAbLE calibration. - Page 22 If you see FaiLEd, then you will need to repeat the calibration, checking that you have completed the procedure in the correct order, and that the sensor is connected correctly. Mantracourt Electronics Limited PSD User Manual...
-
Page 23: Millivolt Per Volt Calibration Procedure
1. Ensure that the factory settings for gain and offset are set to 1 and 0, respectively. See millivolt per volt calibration section to do this. 2. Begin by connecting up the model PSD and a high precision Multimeter to the calibration source set at 2.5mV/V with a 350Ω load. -
Page 24: Specifications
Environmental Rating: IP65 (when mating plug fitted) Enclosure Type: ABS, dark grey (Leather Carry Case Optional) European EMC Directive 2004/108/EC BS EN 61326—1:2006 BS EN 61326-2-3:2006 Mechanical Dimensions The Case is Registered Design No. 3021311 Mantracourt Electronics Limited PSD User Manual... -
Page 25: Warranty
Warranty The PSD is warranted against defective material and workmanship for a period of (1) one year from the date of dispatch. If the MANTRACOURT ELECTRONICS LTD' product you purchase appears to have a defect in material or workmanship or fails during normal use within the period, please contact your Distributor, who will assist you in resolving the problem.
