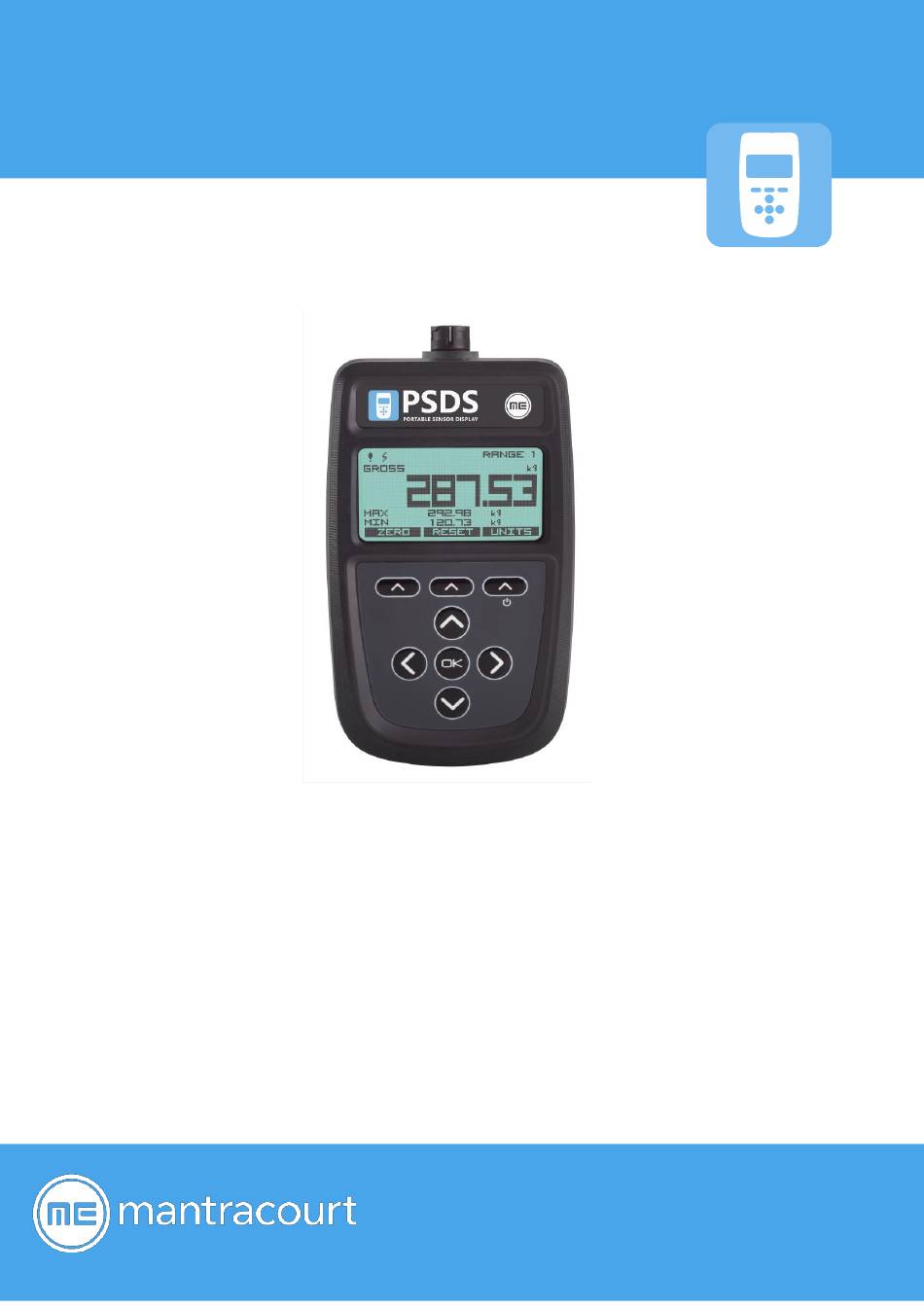

- Page 1 PSDS-HSBK Quick Start Guide mantracourt.com PSDS-HSBK Portable Sensor Display – Strain Bridge...
-
Page 2: Table Of Contents
Setting up without the Toolkit ..........................6 Calibration ........................................6 Change units ......................................... 8 Change decimal places ..................................... 8 Overload/underload alarm ..................................8 Using TEDS ......................................... 10 Toolkit ................................12 Toolkit overview ....................................... 12 Mantracourt Electronics Limited PSDS HSBK Quick Start Guide... -
Page 3: Introduction/Overview
Introduction/overview The PSDS-HSBK allows simple display of strain bridge based measurements such as load cells and pressure gauges with sensitivity up to +/-480 mV/V. Up to six calibration ranges are available allowing for different loading modes (tension and compression) or different sensors. -
Page 4: Getting Started
Getting started This document is designed to give a very quick overview of the PSDS-HSBK and its general, standard functionality. For more details, see the full manual. Hardware overview Front Mantracourt Electronics Limited PSDS HSBK Quick Start Guide... -
Page 5: Back
Back Mantracourt Electronics Limited PSDS HSBK Quick Start Guide... -
Page 6: Top
Loadcell Excitation -ve Blue TEDS Black Ground Screen Grey Cable screen should only be connected to chassis of the sensor. If this cannot be achieved, then it should be connected to Excitation -ve. Mantracourt Electronics Limited PSDS HSBK Quick Start Guide... -
Page 7: Setting Up Without The Toolkit
Scrolls through available characters Moves between digits ’LIVE CALIBRATION’ ’SENSITIVITY’ Select required input sensitivity (Note, this MUST be selected before the following steps) Return to previous menu ’UNITS’ Select required calibration units Mantracourt Electronics Limited PSDS HSBK Quick Start Guide... - Page 8 (You can manually edit the mV/V value to a value from a calibration certificate here) to save changes (long press cancels manual changes) If everything is as planned Return to previous menu Mantracourt Electronics Limited PSDS HSBK Quick Start Guide...
-
Page 9: Change Units
’ALARM’ ’ALARM SOURCE’ Select ‘GROSS’ or ‘NET’ Return to previous menu ’ALARM MODE’ Select ‘NORMAL’ or ‘LATCHED’ (When the alarm is latched but no longer being triggered, cancel the alarm by: ’ALARM’ Mantracourt Electronics Limited PSDS HSBK Quick Start Guide... - Page 10 (long press cancels changes and returns to display mode) Return to previous menu ’ALARM TRIGGER’ Select from: Disabled Outside limits (<low, >high) Inside limits (>low, <high) Above high (>high) Below high (<high) Above low (>low) Below low (<low) Mantracourt Electronics Limited PSDS HSBK Quick Start Guide...
-
Page 11: Using Teds
TEDS table(s) will be automatically loaded. Change selected TEDS calibration Change displayed units To disable TEDS and use the PSD-HSBK’s internal calibration: ’CALIBRATION’ ’USER CALIBRATION’ ’ENTER PASSWORD’ (if set) Scrolls through available characters Mantracourt Electronics Limited PSDS HSBK Quick Start Guide... - Page 12 ‘ENABLED (TEDS)’ ‘DISABLED (PSD)’ Return to previous menu Return to previous selected display mode. The next time that you connect that TEDS device you will get the message: ‘KNOWN TEDS DEVICE SESSION RESTORED’ Mantracourt Electronics Limited PSDS HSBK Quick Start Guide...
-
Page 13: Toolkit
Toolkit overview More complex setup is possible using the supplied toolkit software. Install the toolkit onto your windows PC and connect the USB to the PSDS-HSBK. Then open the toolkit: Navigation is achieved using the icons along the top of the toolkit. - Page 14 For further information, please see the PSDS-HSBK User Manual. Document Title: PSDS-HSBK Quick Start Applies To: PSD (Portable Sensor Display) Part Number: 517-952 Issue Number: 01.00 Dated: May 2022 In the interests of continued product development, Mantracourt Electronics Limited reserves the right to alter product specifications without prior notice.
