OEX

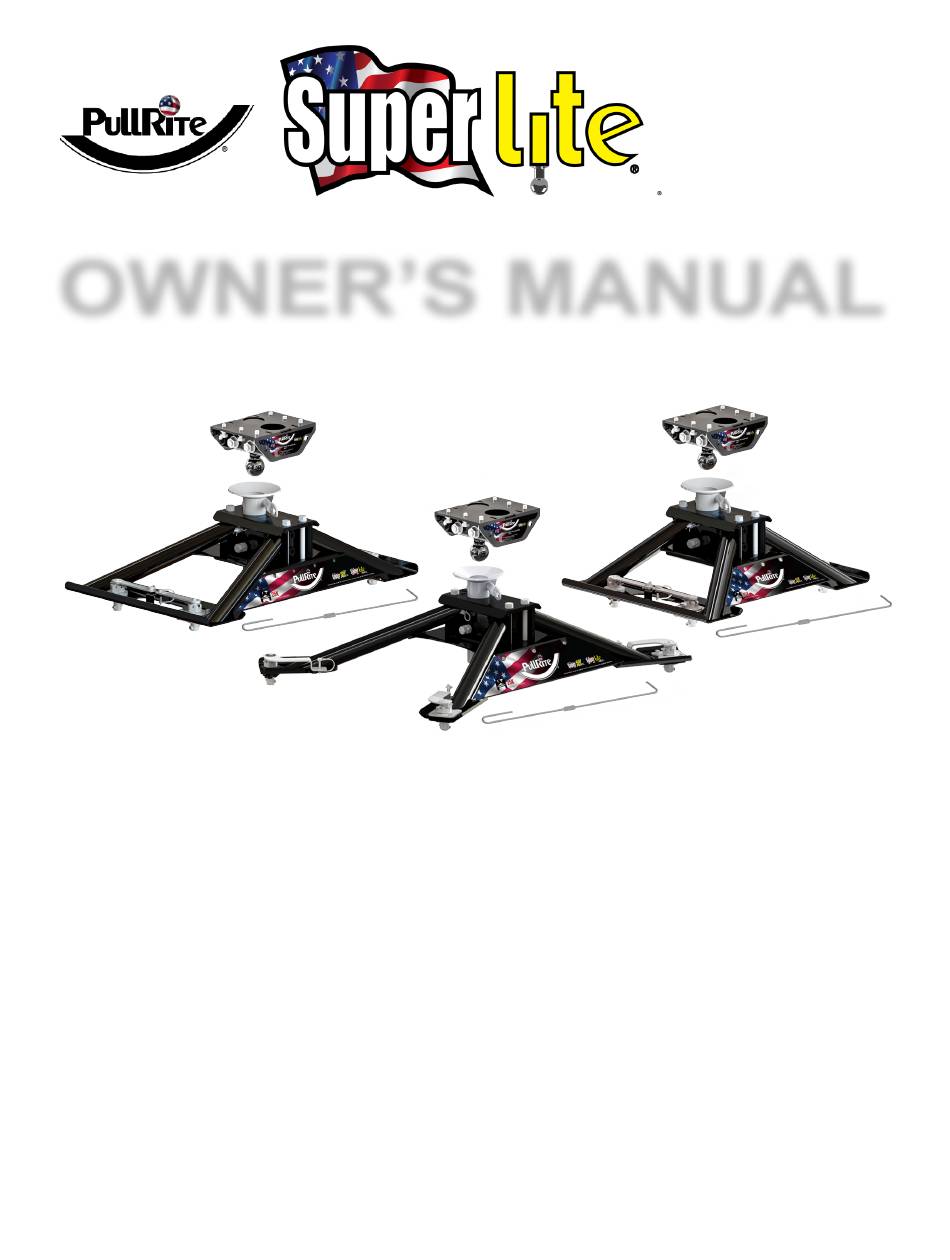

OWNER'S MANUAL
#4715 #4815 #4915
OEX Series Fifth Wheel Hitch (25K)
#4715 for 2010 to present model Ford trucks
#4815 for 2013 to present model Ram trucks
#4915 for 2020 to present model GM trucks
Gross Trailer Weight (Maximum)
25,000 lbs.
Vertical Load Weight (Max. Pin Weight)
6,000 lbs.
The following instructions provide valuable information regarding the function and proper use of the SuperLite OEX Fifth Wheel Towing System.
.
YOU MUST COMPLETELY READ THE INSTRUCTIONS WITHIN THIS MANUAL, PRIOR TO OPERATING THE HITCH TO PREVENT UNNECESSARY DAMAGE
TO THE HITCH, VEHICLE, OR TRAILER.
For more information, please call PullRite at (800) 443-2307.
7.23.24 Rev C RH
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PullRite Super Lite OEX Series
Summary of Contents for PullRite Super Lite OEX Series
- Page 1 The following instructions provide valuable information regarding the function and proper use of the SuperLite OEX Fifth Wheel Towing System. YOU MUST COMPLETELY READ THE INSTRUCTIONS WITHIN THIS MANUAL, PRIOR TO OPERATING THE HITCH TO PREVENT UNNECESSARY DAMAGE TO THE HITCH, VEHICLE, OR TRAILER. For more information, please call PullRite at (800) 443-2307. 7.23.24 Rev C RH...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SYSTEM WEIGHT RATING VS. COMPONENT WEIGHT RATING.............3 ..........................3 CAb ClEARANCE HITCH bASE MOdEl NuMbERS.......................4 ....SuPERlITE COuPlER kIT .....................5 lubRICATION / ANNuAl MAINTENANCE....................6 HEIGHT AdJuSTMENT..........................7 FuNNEl PlACEMENTS..........................8,9 kING PIN AdAPTER INSTAllATION......................10 OEX OFFSET OPTIONS..........................11 MOuNTING POST dIFFERENCES bETWEEN bASE MOdElS ............12 HITCH INSTAllATION..........................13,14 MOuNTING POST AdJuSTMENTS......................14... -
Page 3: System Weight Rating Vs. Component Weight Rating
For short bed truck applications the Pullrite SuperGlide hitch models will always provide better cab clearance, however, OEX Super 5th and SuperLite hitches do provide the option of additional cab clearance greater than any other fixed or stationary hitch. -
Page 4: Hitch Base Model Numbers
GM TRUCK SUPPORT BRACKET KIT #2616 HITCH BASE MODELS The SuperLite OEX is available for Ford, Ram, and GM trucks with OE hitch mounting system (years listed below). NOTE: This manual uses the #4715 as an example for instruction, however all bases listed below are similar in function. -
Page 5: Superlite Coupler Kit
SUPERLITE COUPLER KIT #4810 All model hitches with the SuperLite OEX coupling method use the same hardware kit as shown below. SuperLite OEX coupler kit #4810 HD KINGPIN ADAPTER ASSEMBLY 4811 # 9 PIN CLIP 98410143 5/8” DIA. X 4” HITCH PIN 010019 5/8”-11 X 2”... -
Page 6: Lubrication / Annual Maintenance
KING PIN ADAPTER BALL & FUNNEL The King Pin Adapter Ball, Funnel and Latch Pin must be lubricated before each trip or as needed. PullRite recommends using a dry graphite spray to prevent the attraction of dust and debris. A light wet lubricant such as WD-40 can also be used, but the two types of lubricants should not be used together. -
Page 7: Height Adjustment
HEIGHT ADJUSTMENT The SuperLite OEX is height adjustable and can be set in three positions. Refer to the illustration below, and follow each step to adjust your hitch height. 1. Insert Funnel into the hitch base to the desired height by lineing up the holes on hitch base and Funnel. Insert hitch pin through hole and clip in place. -
Page 8: Funnel Placements
FUNNEL PLACEMENT All SuperLite OEX hitches are adjustable to provide rearward offset. The over the axle position is in Figure 1, but if you would like to add 4” of cab clearance, you can move the funnel to the rear position in the base (Fig.2). Choose the desired setting and follow the steps listed below. - Page 9 FUNNEL PLACEMENT 8. Insert the funnel through both the top and bottom funnel plate (Fig.5) 9. Insert funnel hitch pin (Fig.6,8) through the height adjustment hole into desired height position (see page 7 for details). 10. Tighten the (4) 5/8” X 6” Column Location Plate Bolts and (4) 5/8 flange nuts with a 15/16” socket to 110 foot pounds. 11.
-
Page 10: King Pin Adapter Installation
KING PIN ADAPTER INSTALLATION 1. Verify that the king pin is clean and free of burrs before installing the King Pin Adapter. Remove any burrs with a flat file. If you are having fit issues, see “Challenge vs. Solution” on page 16. 2. -
Page 11: Oex Offset Options
OEX SUPERLITE OFFSET OPTIONS All SuperLite OEX hitches are adjustable front to back. When postioning the funnel behind the axle, along with the adjust- ments of the heavy duty pin box adapter, the OEX can allow up to 7.5" of rearward offset. The SuperLite OEX has four settings for towing to get the offset desired for more turning clearance. -
Page 12: Mounting Post Differences Between Base Models
MAINTENANCE NOTES MOUNTING POST DIFFERENCES BETWEEN HITCH BASE MODELS FRONT POSTS REAR POSTS #4715 for FORD 2010-Present DRIVER SIDE SAME AS DRIVER SIDE PASSENGER SIDE THE FRONT DRIVER SIDE POST HAS A THICK WASHER TO TRUCK CAB (FRONT POSTS) THICKER CROSS PINS ON BOTH PASSENGER SIDE REAR POSTS... -
Page 13: Hitch Installation
OEX SuperLite post holes directly over the pucks and drop hitch in place until seated firmly in the Brass Washers. The large PullRite decal should be facing the tailgate (see Fig.15). NOTE: Before inserting Mounting Posts for the first time, you will need to adjust them to obtain a custom fit as explained in the MOUNTING POST ADJUSTMENTS section on page 14. -
Page 14: Mounting Post Adjustments
HITCH INSTALLATION 5. Press down while inserting Mounting Posts and rotate 90º, until hole in handle lines up with the hole in the tab on hitch base (Fig.16).The Mounting Posts should feel firmly locked in place. 6.Tighten the Mounting Post Plate Hex Bolts with a 1/2” socket to 13 foot pounds. 7. -
Page 15: Hitching / Safety Checks Prior To Towing
HITCHING WARNING: Never perform any of the following actions while any LATCH IN, PIN TURNED OUT OF SLOT (CLOSED) part of a person is between the vehicle and trailer. LATCH 1. Verify that the Latch is pulled outward and rotated (left or right) into the latched open position (Fig. -
Page 16: Unhitching / Challenge Vs Solution
I need to have a professional evaluate my Contact PullRite’s Customer Service Dept. at (800) 443-2307. SuperLite OEX. Your needs will be assessed and resolved by PullRite or you will be directed to an authorized PullRite Service Center. 7.23.24 Rev C RH... -
Page 17: Rota-Flex Pinbox Rubber Isolator
In the case that you use a Rota-Flex pinbox or similar design, the rubber block inside the pinbox has a tendency to work its way out of place while towing with the SuperLite OEX hitch. PullRite’s Pinbox Rubber Isolator (Part # 4447) restricts and keeps the rubber block in place. -
Page 18: Torque Table
TORQUE TABLE Apply these torque specifications for the corrisponding items listed below upon installation and subsequent inspections of the SuperLite OEX See parts lists for identification of items listed on this table. HARDWARE SIZE TORQUE SPECS LATCH PIN HOUSING SET 1/4”... -
Page 19: Related Accessories
RELATED ACCESSORIES PullRite offers these excellent accessories for towing. These products are American made and available now through PullRite dealers. IMAGE DESCRIPTION PART # 30K OE Series Gooseneck Ball -Fits truck’s factory-equipped Tow Prep Package. 4436 -American made with patented TwistLock technology. -
Page 20: 4715 Exploded View / Parts List
SUPERLITE OEX # 4715 EXPLODED VIEW B2 B3 MOUNTING POST ASSEMBLY* TAILGATE SIDE 7.23.24 Rev C RH... - Page 21 #4715 SUPERLITE OEX PARTS LIST NAME PART NO DESCRIPTION HD KING PIN ADAPTER ASSEMBLY 4811 ATTACHES TO KING PIN FUNNEL ASSEMBLY 4813 FORD OEX BASE KIT 4730 OEX DS FRONT MOUNTING POST KIT 47341 OEX REAR MOUNTING POST KIT 47343 OEX PS FRONT MOUNTING POST KIT 47342 REMOTE LATCH HANDLE...
-
Page 22: 4815 Exploded View / Parts List
SUPERLITE OEX # 4815 EXPLODED VIEW MOUNTING POST ASSEMBLY* B2 B3 B6 B7 TAILGATE SIDE 7.23.24 Rev C RH... - Page 23 #4815 SUPERLITE OEX PARTS LIST NAME PART NO DESCRIPTION HD KING PIN ADAPTER ASSEMBLY 4811 FUNNEL ASSEMBLY 4813 RAM OEX HITCH BASE 4830 OEX DS FRONT MOUNTING POST 48341 OEX REAR MOUNTING POSTS 48343 OEX PS FRONT MOUNTING POST 48342 REMOTE LATCH HANDLE 4812 HD KING PIN ADAPTER HARDWARE KIT KIT (#4811)
-
Page 24: 4915 Exploded View / Parts List
SUPERLITE OEX # 4915 EXPLODED VIEW MOUNTING POST ASSEMBLY* B2 B3 TAILGATE SIDE 7.23.24 Rev C RH... - Page 25 #4915 SUPERLITE OEX PARTS LIST NAME PART NO DESCRIPTION HD KING PIN ADAPTER ASSEMBLY 4811 FUNNEL ASSEMBLY 4813 GM OEX BASE KIT 4930 OEX DS FRONT MOUNTING POST KIT 49341 OEX REAR MOUNTING POST KIT 49343 OEX PS FRONT MOUNTING POST KIT 49342 REMOTE LATCH HANDLE 4812...
-
Page 26: Year Limited Warranty
PULLIAM immediately, either in writing or by telephone call, Attention Customer Service Department. The owner will be instructed to return the hitch at his expense either to an authorized PullRite dealer or to PULLIAM to repair or replace any parts necessary to correct defects in material or workmanship. - Page 27 Product Warranty Registration As an owner of a PullRite product, you must register your product to be considered for warranty coverage. See Owners Manual for further details. Please note, that you can also register online at www.pullrite.com/warranty.htm. Name: ___________________________________________________________________________________ Address: _________________________________________________________________________________...
- Page 28 MANUFACTURED BY: PULLIAM ENTERPRISES, INC. 13790 East Jefferson Blvd. Mishawaka, IN 46545 (574) 259-1520 • (800) 443-2307 info@pullrite.com • www.pullrite.com...
