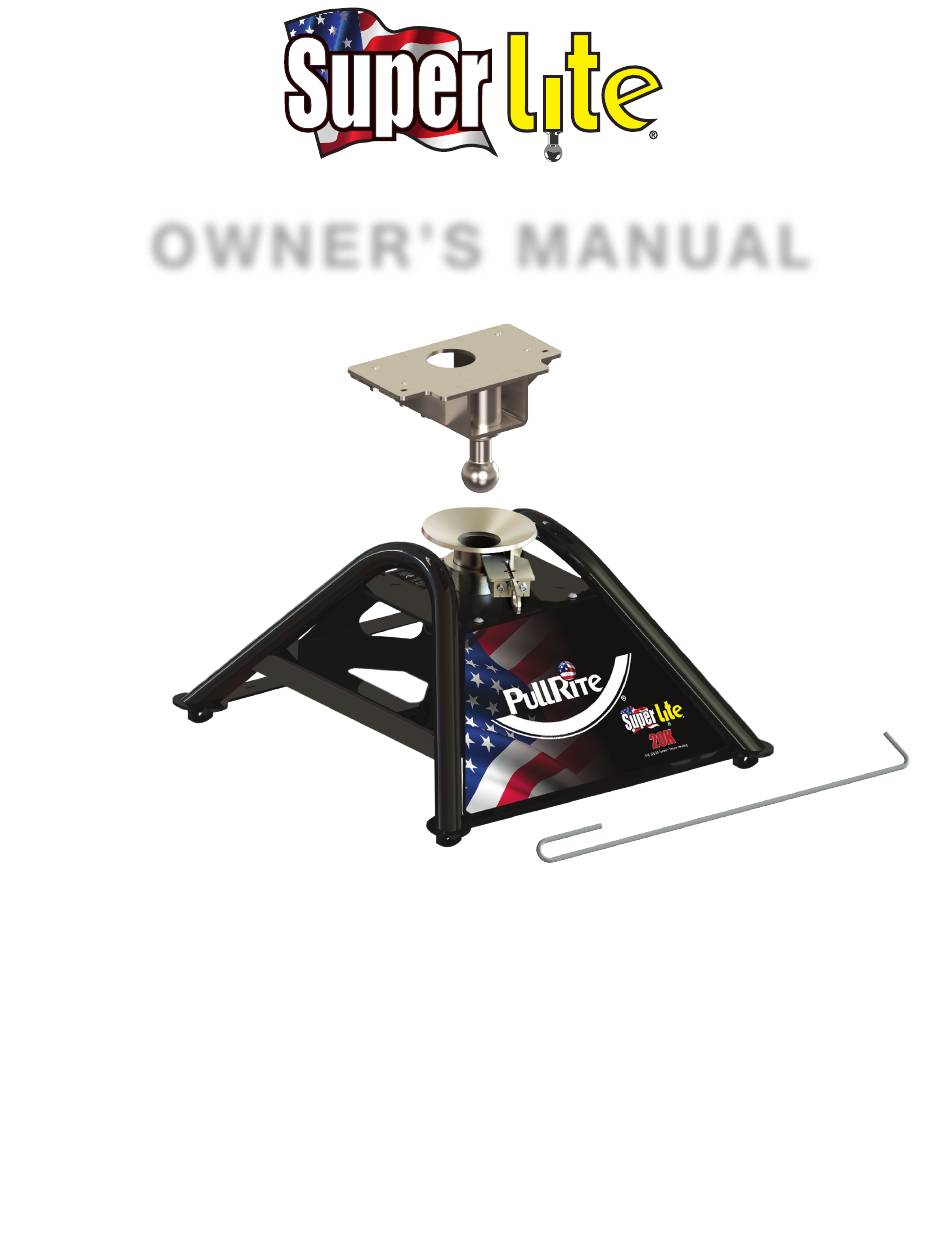

OWNER'S MANUAL

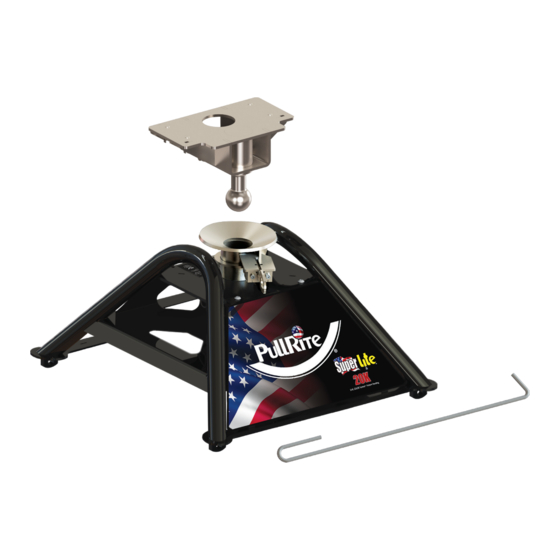

#2400 (20K) Industry Standard Super 5
th
Gross Trailer Weight (Maximum)
20,000 lbs.
Vertical Load Weight (Max. Pin Weight)
4,000 lbs.
The following instructions provide valuable information regarding the function and proper use of the Super 5
Fifth Wheel Towing System.
th
YOU MUST COMPLETELY READ THE INSTRUCTIONS WITHIN THIS MANUAL, PRIOR TO OPERATING THE HITCH TO PREVENT UNNECESSARY DAMAGE
TO THE HITCH, VEHICLE, OR TRAILER.
For more information, please call PullRite at (800) 443-2307.
12.14.15:revA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PullRite SuperLite 2400
Summary of Contents for PullRite SuperLite 2400
- Page 1 The following instructions provide valuable information regarding the function and proper use of the Super 5 Fifth Wheel Towing System. YOU MUST COMPLETELY READ THE INSTRUCTIONS WITHIN THIS MANUAL, PRIOR TO OPERATING THE HITCH TO PREVENT UNNECESSARY DAMAGE TO THE HITCH, VEHICLE, OR TRAILER. For more information, please call PullRite at (800) 443-2307. 12.14.15:revA...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SYSTEM WEIGHT RATING vs. COMPONENT WEIGHT RATING ..................3 LUBRICATION ..................................3 KING PIN ADAPTER BALL & COUPLER TUBE ......................3 ANNUAL MAINTENANCE ..............................3 HEIGHT ADJUSTMENT .................................4 KING PIN ADAPTER INSTALLATION ............................5 HITCHING ....................................6 SAFETY CHECKS PRIOR TO TOWING ..........................6 UNHITCHING ..................................7 CHALLENGE VS. -
Page 3: System Weight Rating Vs. Component Weight Rating
KING PIN ADAPTER BALL & COUPLER TUBE The King Pin Adapter Ball and Remote Latch System must be lubricated before each trip or as needed. PullRite recommends using a dry graphite spray to prevent the attraction of dust and debris. A light wet lubricant such as WD-40 can also be used, but the two types of lubricants should not be used together. -
Page 4: Height Adjustment
HEIGHT ADJUSTMENT The #2400 SuperLite is height adjustable and can be set at three positions. Refer to the illustration below and the “#2400 Exploded View” drawing on page 8, following each step below to adjust your hitch’s height: 1. Loosen the three coupler jam nuts (7/8” socket) as well as the three coupler bolts (3/4” socket). It is not necessary to remove the bolts - just back out about two complete turns or until the coupler is loose in the base. -
Page 5: King Pin Adapter Installation
KING PIN ADAPTER INSTALLATION 1. Verify that the king pin is clean and free of burrs before installing the King Pin Adapter {A}. Remove any burrs with a flat file. If you are having fit issues, see “Challenge vs. Solution” on page 7. 2. -
Page 6: Hitching
HITCHING WARNING: Never perform any of the following actions while any part of a latch handle pulled person is between the vehicle and trailer. outward, pin centered to slot opening 1. Verify that the Latch Handle {B1} is pulled outward and rotated (left or right) into the latched open position . -
Page 7: Unhitching
I need to have a professional evaluate my Contact PullRite’s Customer Service Dept. at (800) 443-2307. SuperLite. Your needs will be assessed and resolved by PullRite or you will be directed to an authorized PullRite Service Center. Page 7... -
Page 8: 2400 Exploded View
#2400 EXPLODED VIEW Page 8... -
Page 9: 2400 Parts List
PINS AND CLIPS MOUNTING KIT -- 080601 MOUNTING PIN 08060001 MOUNTING PIN CLIP 98410127 BASE RAIL KIT PULLRITE INDUSTRY STANDARD BASE RAILS ARE SOLD SEPARATELY. CALL (800) 443-2307 FOR MORE INFORMATION. TORQUE TABLE Hardware Size Torque Specs Latch Pin Housing Set Screws 1/4”... -
Page 10: Year Limited Warranty
PULLIAM immediately, either in writing or by telephone call, Attention Customer Service Department. The owner will be instructed to return the hitch at his expense either to an authorized PullRite dealer or to PULLIAM to repair or replace any parts necessary to correct defects in material or workmanship. -
Page 11: Product Registration
PRODUCT REGISTRATION Product Warranty Registration As an owner of a PullRite product, you must register your product to be considered for warranty coverage. See Owners Manual for further details. Please note, that you can also register online at www.pullrite.com/warranty.htm. Name: ________________________________________________________________________________... - Page 12 MANUFACTURED BY: PULLIAM ENTERPRISES, INC. 13790 East Jefferson Blvd. Mishawaka, IN 46545 (574) 259-1520 • (800) 443-2307 info@pullrite.com • www.pullrite.com...
