OWNER'S MANUAL

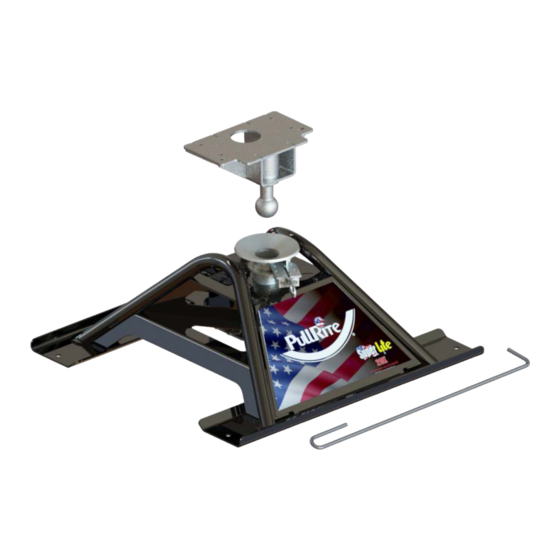

#2600 (20K) Single Point Attachment Fifth Wheel Hitch
Gross Trailer Weight (Maximum)
20,000 lbs.
Vertical Load Weight (Max. Pin Weight)
5,000 lbs.
The following instructions provide valuable information regarding the function and proper use of the SuperLite Fifth Wheel Towing System.
.
YOU MUST COMPLETELY READ THE INSTRUCTIONS WITHIN THIS MANUAL, PRIOR TO OPERATING THE HITCH TO PREVENT UNNECESSARY DAMAGE
TO THE HITCH, VEHICLE, OR TRAILER.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PullRite Super Lite 2600
Summary of Contents for PullRite Super Lite 2600
- Page 1 OWNER’S MANUAL #2600 (20K) Single Point Attachment Fifth Wheel Hitch Gross Trailer Weight (Maximum) 20,000 lbs. Vertical Load Weight (Max. Pin Weight) 5,000 lbs. The following instructions provide valuable information regarding the function and proper use of the SuperLite Fifth Wheel Towing System. YOU MUST COMPLETELY READ THE INSTRUCTIONS WITHIN THIS MANUAL, PRIOR TO OPERATING THE HITCH TO PREVENT UNNECESSARY DAMAGE TO THE HITCH, VEHICLE, OR TRAILER.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SYSTEM WEIGHT RATING . COMPONENT WEIGHT RATING..............3 CAB CLEARANCE............................3 GM TRUCK SUPPORT INFO........................4,5 KNG PIN ADAPTER BALL & COUPLER TUBE..................6 BED SAVER RAILS............................6 ANNUAL MAINTANANCE..........................6 HEIGHT ADJUSTMENT..........................7 KING PIN ADAPTER INSTALLATION......................8 GOOSENECK RECEIVER INSTALLATION....................9 ATTACHING THE HITCH..........................10 HITCHING..............................11 SAFETY CHECKS PRIOR TO TOWING.....................11 UNHITCHING..............................12... -
Page 3: System Weight Rating Vs. Component Weight Rating
Depending on the gooseneck ball install location, the offset could move the king pin slightly behind the truck’s rear axle. While the #2600 can be used with these shorter bed trucks, keep in mind that PullRite only recommends the use of a slider type hitch for any towing application without 100% cab clearance. -
Page 4: Gm Truck Support Info
If OE bracket is present, your truck is equipted with the OE prep package. For this you will need the PullRite OE Puck Plug kit #2620 2. Hand tighten (4) flange nuts on brackets {fig D}, and then torque all nuts to 75 foot pounds. - Page 5 - Holding the top of the plug, place the bottom of the Plug into the GM Puck. The Plug will fit loosely. Center within hole. - Repeat with the other three plugs. Make sure all (4) plugs are set into each puck location. The Pullrite 2600 hitch is ready to Install. GM TRUCK BED...
-
Page 6: Kng Pin Adapter Ball & Coupler Tube
KING PIN ADAPTER BALL & COUPLER TUBE The King Pin Adapter Ball and Remote Latch System must be lubricated before each trip or as needed. PullRite recommends using a dry graphite spray to prevent the attraction of dust and debris. A light wet lubricant such as WD-40 can also be used, but the two types of lubricants should not be used together. -
Page 7: Height Adjustment
King Pin 17 3/8” Adapter (bottom of your trailer’s pin box skidplate) BENT HITCH PIN once properly installed. 18 7/8” NOTE: Two of the three set screws are located behind the PullRite logo plate 3 SET SCREWS AND JAM NUTS... -
Page 8: King Pin Adapter Installation
KING PIN ADAPTER INSTALLATION 1. Verify that the king pin is clean and free of burrs before installing the King Pin Adapter. Remove any burrs with a flat file. If you are having fit issues, see A6 A5 A4 “Challenge vs. Solution” on page 11. 2. -
Page 9: Gooseneck Receiver Installation
GOOSENECK RECEIVER INSTALLATION The Gooseneck Receiver is the box that fastens to the original equipment (prep kit) gooseneck ball or aftermarket gooseneck ball (2 5/16”, 20,000 lbs rated) in the bed of the truck. Its purpose is to secure the connection of the hitch to the truck bed by way of the Draw Down Bolt (3/4”... -
Page 10: Attaching The Hitch
ATTACHING THE HITCH 1. Set the hitch over the Gooseneck Receiver with the PullRite logo plate facing the truck tailgate. Make sure that the Draw Down Bolt from the Gooseneck Receiver extends up through the oval slot in the top of the hitch near the Coupler Tube. -
Page 11: Hitching
HITCHING WARNING: Never perform any of the following actions while any part of LATCH HANDLE PULLED OUTWARD, PIN CENERED a person is between the vehicle and trailer. TO SLOT OPENING 1. Verify that the Latch Handle is pulled outward and rotated (left or right) into the latched open position (right). -
Page 12: Unhitching
I need to have a professional evaluate my Contact PullRite’s Customer Service Dept. at (800) 443-2307. SuperLite 2600. Your needs will be assessed and resolved by PullRite or you will be directed to an authorized PullRite Service Center. -
Page 13: Rota-Flex Pinbox Rubber Isolator
In the case that you use a Rota-Flex pinbox or similar design, the rubber block inside the pinbox has a tendency to work its way out of place while towing with the SuperLite hitch. PullRite’s Pinbox Rubber Isolator (Part # 4446) restricts and keeps the rubber block in place. -
Page 14: Related Accessories
RELATED ACCESSORIES PullRite offers these excellent accessories for towing with the #2600 hitch. These products are American made and available now through PullRite dealers. IMAGE DESCRIPTION PART # 30K OE Series Gooseneck Ball -Fits truck’s factory-equipped Tow Prep Package. 4436 -American made with patented TwistLock technology. -
Page 15: Torque Table
TORQUE TABLE Apply these torque specifications for the corrisponding items listed below upon installation and subsequent inspections of the #2600. See parts list (pg. 17) for identification of items listed on this table. HARDWARE SIZE TORQUE SPECS LATCH PIN HOUSING SET 1/4”... -
Page 16: 2600 Exploded View
#2600 EXPLODED VIEW E1 E2... -
Page 17: 2600 Parts List
3/4 - 10 - 6 NOTCH PALNUT 98410526 DRAW DOWN BOLT 3/4-10 X 4” CARRIAGE BOLT GRADE 5 26020207 FRONT PLATE FRONT PULLRITE LOGO PLATE 260203 BASE RAILS BED SAVER RAILS 26030101 Discover other trailer hitches and towing on our website.
