OEX
OWNER'S MANUAL
#4715 #4815 #4915

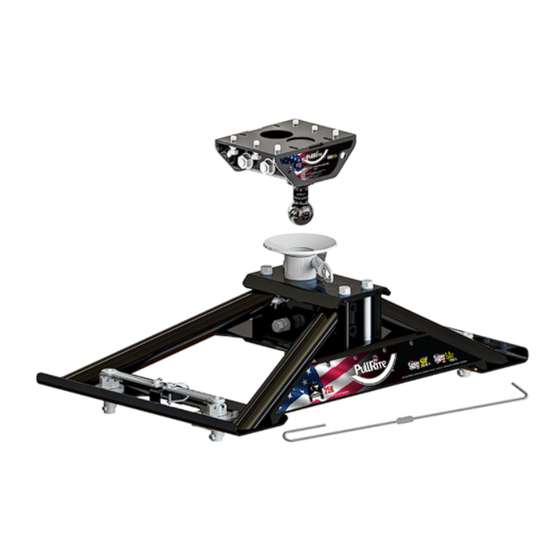

OEX Series Fifth Wheel Hitch (25K)
#4715 for 2010 to present model Ford trucks
#4815 for 2013 to present model Ram trucks
#4915 for 2020 to present model GM trucks
Gross Trailer Weight (Maximum)
25,000 lbs.
Vertical Load Weight (Max. Pin Weight)
6,000 lbs.
The following instructions provide valuable information regarding the function and proper use of the SuperLite OEX Fifth Wheel Towing System.
.
YOU MUST COMPLETELY READ THE INSTRUCTIONS WITHIN THIS MANUAL, PRIOR TO OPERATING THE HITCH TO PREVENT UNNECESSARY DAMAGE
TO THE HITCH, VEHICLE, OR TRAILER.
For more information, please call PullRite at (800) 443-2307.
2.7.24 Rev B RH
Advertisement
Table of Contents
Related Manuals for PullRite Super Lite OEX Series
Summary of Contents for PullRite Super Lite OEX Series
- Page 1 The following instructions provide valuable information regarding the function and proper use of the SuperLite OEX Fifth Wheel Towing System. YOU MUST COMPLETELY READ THE INSTRUCTIONS WITHIN THIS MANUAL, PRIOR TO OPERATING THE HITCH TO PREVENT UNNECESSARY DAMAGE TO THE HITCH, VEHICLE, OR TRAILER. For more information, please call PullRite at (800) 443-2307. 2.7.24 Rev B RH...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SYSTEM WEIGHT RATING VS. COMPONENT WEIGHT RATING.............3 ..........................3 CAb ClEARANCE bASE MOdElS.............................4 ....SuPERlITE COuPlER kIT .....................5 lubRICATION / ANNuAl MAINTANANCE....................6 kING PIN AdAPTER INSTAllATION......................7 OEX OFFSET OPTIONS..........................8 FRONT TO bACk FuNNEl AdJuSTMENTS..................9,10 HEIGHT AdJuSTMENT..........................11 HITCH INSTAllATION..........................12,13 MOuNTING POST AdJuSTMENTS......................13 HITCHING..............................14 SAFETY CHECkS PRIOR TO TOWING......................14... -
Page 3: System Weight Rating Vs. Component Weight Rating
Depending on the funnel install location, the offset could move the king pin behind the truck’s rear axle. While the SuperLite OEX can be used with these shorter bed trucks, keep in mind that PullRite only recommends the use of a slider type hitch for any towing application without 100% cab clearance. -
Page 4: Base Models
GM TRUCK SUPPORT BRACKET KIT #2616 BASE MODELS The SuperLite OEX is available for Ford, Ram, and GM trucks with OE hitch mounting system (years listed below). NOTE: This manual uses the #4715 as an example for instruction, however all bases listed below are similar in function. -
Page 5: Superlite Coupler Kit
SUPERLITE COUPLER KIT #4810 All model hitches with the SuperLite OEX coupling method use the same hardware kit as shown below. SuperLite OEX coupler kit #4810 HD KINGPIN ADAPTER ASSEMBLY 4811 # 9 PIN CLIP 98410143 5/8” DIA. X 4” HITCH PIN 010019 5/8”-11 X 2”... -
Page 6: Lubrication / Annual Maintanance
KING PIN ADAPTER BALL & FUNNEL The King Pin Adapter Ball, Funnel and Latch Pin must be lubricated before each trip or as needed. PullRite recommends using a dry graphite spray to prevent the attraction of dust and debris. A light wet lubricant such as WD-40 can also be used, but the two types of lubricants should not be used together. -
Page 7: King Pin Adapter Installation
KING PIN ADAPTER INSTALLATION 1. Verify that the king pin is clean and free of burrs before installing the King Pin Adapter. Remove any burrs with a flat file. If you are having fit issues, see “Challenge vs. Solution” on page 15. 2. -
Page 8: Oex Offset Options
OEX OFFSET OPTIONS All SuperLite OEX hitches are adjustable front to back and can place the funnel behind the axle, along with the adjust- ments of the heavy duty pin box adapter, the OEX can allow up to 7" of rearward offset (Fig.4). The OEX has four settings for towing to get the offset desired for more turning clearance. -
Page 9: Front To Back Funnel Adjustments
FRONT TO BACK FUNNEL ADJUSTMENT All SuperLite OEX hitches are adjustable front to back and can place the funnel behind the axle, allowing up to 7” of rear- ward offset. The OEX forward position is in Figure 1, but if you find the best position for towing is with the funnel closer to the tailgate (Fig. - Page 10 FRONT TO BACK FUNNEL ADJUSTMENT 6. Remove the (4) 5/8" X 6" hex bolts holding the funnel plates (Fig.6). 7. Turn the top and bottom plates to the rearward position (Fig.7). 8. Replace the (4) 5/8" X 6" hex bolts and (4) 5/8 nuts and set the funnel through both plates in the rearward position. Place funnel hitch pin through the height adjustment hole into desired height position.
-
Page 11: Height Adjustment
HEIGHT ADJUSTMENT The SuperLite OEX is height adjustable and can be set at three positions. Refer to the illustration below and follow each step below to adjust the height of your hitch: 1. Loosen the two Funnel jam nuts as well as the two bolts on the passenger side and driver side. It is not necessary to remove the bolts, just back out about two complete turns or until the funnel is loose in the base. -
Page 12: Hitch Installation
HITCH INSTALLATION Place the OEX post holes directly over the pucks,the cover plate should be facing the tailgate. You will be able to adjust OEX foot plates so that each Mounting Post drops into place as you go around the hitch. 1. -
Page 13: Mounting Post Adjustments
HITCH INSTALLATION 4. Rotate handles 90º (Fig. 4), posts may need to be adjusted as explained below in MOUNTING POST ADJUSTMENTS. 5. After Inserting and locking all posts (Fig. 4), tighten the adjustment plates on the OEX feet to 13 foot pounds. 6. -
Page 14: Hitching
HITCHING WARNING: Never perform any of the following actions while any LATCH IN, PIN TURNED OUT OF SLOT (CLOSED) part of a person is between the vehicle and trailer. LATCH 1. Verify that the Latch is pulled outward and rotated (left or right) into the latched open position (right). -
Page 15: Unhitching / Challenge Vs Solution
I need to have a professional evaluate my Contact PullRite’s Customer Service Dept. at (800) 443-2307. SuperLite OEX. Your needs will be assessed and resolved by PullRite or you will be directed to an authorized PullRite Service Center. 2.7.24 Rev B RH... -
Page 16: Rota-Flex Pinbox Rubber Isolator
In the case that you use a Rota-Flex pinbox or similar design, the rubber block inside the pinbox has a tendency to work its way out of place while towing with the SuperLite OEX hitch. PullRite’s Pinbox Rubber Isolator (Part # 4447) restricts and keeps the rubber block in place. -
Page 17: Torque Table
TORQUE TABLE Apply these torque specifications for the corrisponding items listed below upon installation and subsequent inspections of the SuperLite OEX See parts lists for identification of items listed on this table. HARDWARE SIZE TORQUE SPECS LATCH PIN HOUSING SET 1/4”... -
Page 18: 4715 Exploded View / Parts List
SUPERLITE OEX # 4715 EXPLODED VIEW B2 B3 MOUNTING POST ASSEMBLY* TAILGATE SIDE 2.7.24 Rev B RH... - Page 19 #4715 SUPERLITE OEX PARTS LIST NAME PART NO DESCRIPTION HD KING PIN ADAPTER ASSEMBLY 4811 ATTACHES TO KING PIN FUNNEL ASSEMBLY 4813 ATTACHES TO KING PIN FORD OEX BASE KIT 4730 ATTACHES TO KING PIN REMOTE LATCH HANDLE 4812 ATTACHES TO KING PIN OEX DS FRONT MOUNTING POST KIT 47341 ATTACHES TO KING PIN...
-
Page 20: 4815 Exploded View / Parts List
SUPERLITE OEX # 4815 EXPLODED VIEW MOUNTING POST ASSEMBLY* B2 B3 B6 B7 TAILGATE SIDE 2.7.24 Rev B RH... - Page 21 #4815 SUPERLITE OEX PARTS LIST NAME PART NO DESCRIPTION HD KING PIN ADAPTER ASSEMBLY 4811 FUNNEL ASSEMBLY 4813 RAM OEX HITCH BASE 4830 REMOTE LATCH HANDLE 4812 OEX DS FRONT MOUNTING POST 48341 OEX REAR MOUNTING POSTS 48343 OEX PS FRONT MOUNTING POST 48342 HD KING PIN ADAPTER HARDWARE KIT KIT (#4811) HD KING PIN ADAPTER BOLT...
-
Page 22: 4915 Exploded View / Parts List
SUPERLITE OEX # 4915 EXPLODED VIEW MOUNTING POST ASSEMBLY* B2 B3 TAILGATE SIDE 2.7.24 Rev B RH... - Page 23 #4915 SUPERLITE OEX PARTS LIST NAME PART NO DESCRIPTION HD KING PIN ADAPTER ASSEMBLY 4811 FUNNEL ASSEMBLY 4813 GM OEX BASE KIT 4930 REMOTE LATCH HANDLE 4812 OEX DS FRONT MOUNTING POST KIT 49341 OEX REAR MOUNTING POST KIT 49343 OEX PS FRONT MOUNTING POST KIT 49342 HD KING PIN ADAPTER HARDWARE KIT KIT (#4811)
-
Page 24: Year Limited Warranty
PULLIAM immediately, either in writing or by telephone call, Attention Customer Service Department. The owner will be instructed to return the hitch at his expense either to an authorized PullRite dealer or to PULLIAM to repair or replace any parts necessary to correct defects in material or workmanship. - Page 25 Product Warranty Registration As an owner of a PullRite product, you must register your product to be considered for warranty coverage. See Owners Manual for further details. Please note, that you can also register online at www.pullrite.com/warranty.htm. Name: ___________________________________________________________________________________ Address: _________________________________________________________________________________...
- Page 26 MANUFACTURED BY: PULLIAM ENTERPRISES, INC. 13790 East Jefferson Blvd. Mishawaka, IN 46545 (574) 259-1520 • (800) 443-2307 info@pullrite.com • www.pullrite.com...
