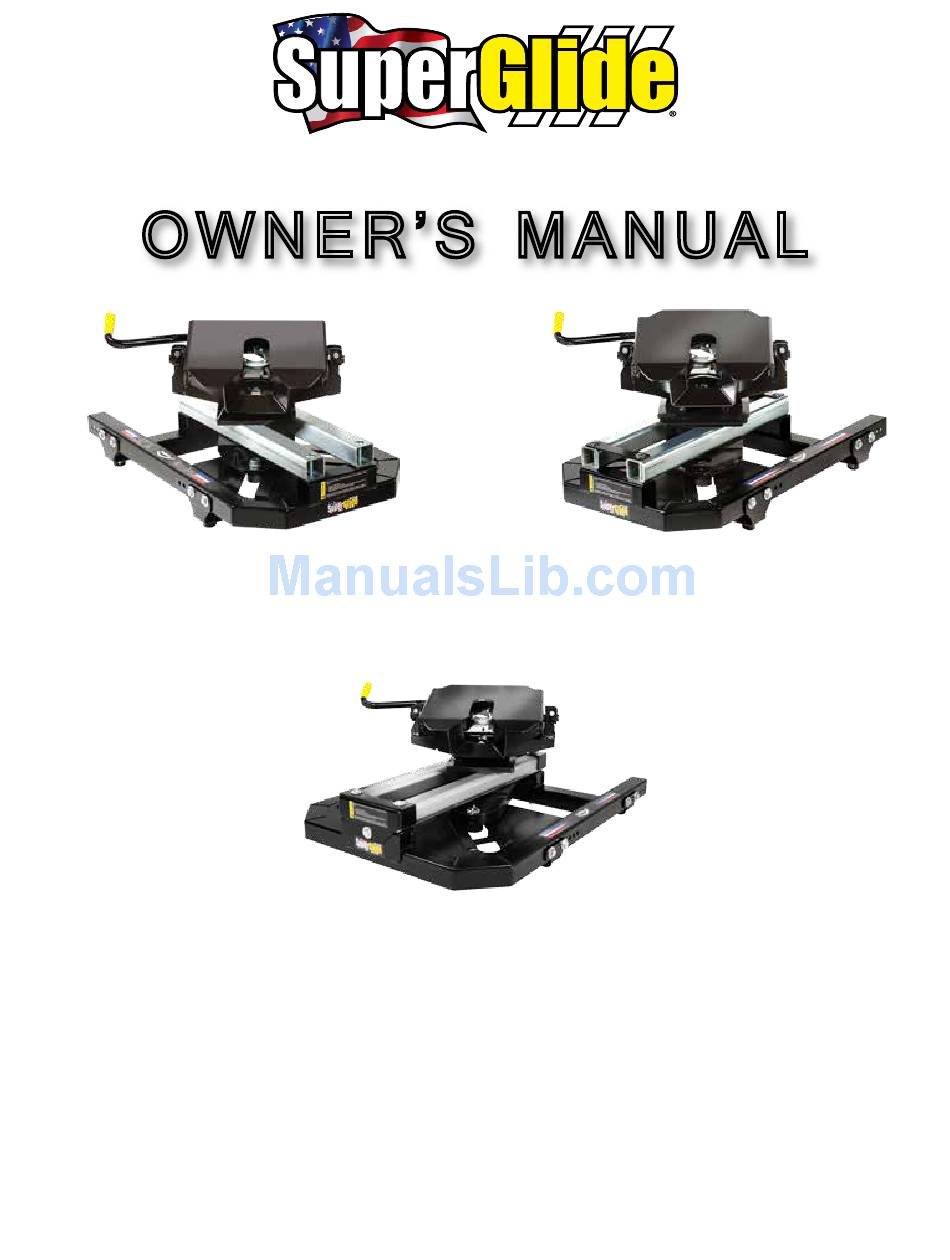

OWNER'S MANUAL
#2700 (16K) Industry Standard
#2900 (18K) Industry Standard
SuperGlide
SuperGlide
Gross Trailer Weight (Maximum)
16,000 lbs.
Gross Trailer Weight (Maximum)
18,000 lbs.
Vertical Load Weight (Max. Pin Weight)
4,000 lbs.
Vertical Load Weight (Max. Pin Weight)
4,500 lbs.
#2300 (24K) Industry Standard
SuperGlide
Gross Trailer Weight (Maximum)
24,000 lbs.
Vertical Load Weight (Max. Pin Weight)
6,000 lbs.
The following instructions provide valuable information regarding the function and proper
use of the SuperGlide Fifth Wheel Towing System.
YOU MUST COMPLETELY READ THE INSTRUCTIONS WITHIN THIS MANUAL, PRIOR TO OPERATING THE HITCH
TO PREVENT UNNECESSARY DAMAGE TO THE HITCH, VEHICLE, OR TRAILER.
For more information, please call PullRite at (800) 443-2307.
1.3.17:revD3a
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PullRite SuperGlide 2700
Summary of Contents for PullRite SuperGlide 2700
- Page 1 SuperGlide Fifth Wheel Towing System. YOU MUST COMPLETELY READ THE INSTRUCTIONS WITHIN THIS MANUAL, PRIOR TO OPERATING THE HITCH TO PREVENT UNNECESSARY DAMAGE TO THE HITCH, VEHICLE, OR TRAILER. For more information, please call PullRite at (800) 443-2307. 1.3.17:revD3a...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SYSTEM WEIGHT RATING vs. COMPONENT WEIGHT RATING ..................1 HOW DOES THE SUPERGLIDE WORK? ..........................2 CAUTION ....................................3 TESTING CLEARANCE .................................3 BASE RAIL FOOT ASSEMBLY ..............................4 INSTALLING THE BASE RAIL FEET ..........................4 LUBRICATION ..................................6 MAINTENANCE ................................6 HITCH LUBRICATION..............................6 FIFTH WHEEL PLATE & KING PIN ..........................7 FIFTH WHEEL PLATE OPERATION ............................8 HITCHING ....................................10 SAFETY CHECKS ................................ -
Page 3: System Weight Rating Vs. Component Weight Rating
SYSTEM WEIGHT RATING vs. COMPONENT WEIGHT RATING A towing system includes each vehicle and component involved in towing. Each item in your towing system has a capacity or weight rating. You trailer has a Gross Vehicle Weight Rating, or GVWR. Your truck has a tow capacity, payload capacity, and possibly more. -
Page 4: How Does The Superglide Work
HOW DOES THE SUPERGLIDE WORK? The SuperGlide is an automatically sliding Fifth wheel hitch based on a mechanical, cam action. Other sliding hitches on the market today require you to get in and out of the vehicle multiple times before and after a turn, throwing levers to allow it to move back and forth. -
Page 5: Caution
SuperGlide. If your king pin is located too far under the nose of the trailer, the cam action of the SuperGlide may not move the trailer back fast enough to allow the necessary clearance. Call PullRite Customer Service at (800) 443-2307 with trailer width, make and year of truck, and the distance of the king pin from the leading edge of the trailer (Dimension A). -
Page 6: Base Rail Foot Assembly
BASE RAIL FOOT ASSEMBLY The Industry Standard SuperGlides are equipped with base feet that must be attached to the base rails by the installer prior to mounting the adjustable base unit. There are two groups of holes on each side of the base assembly that will allow you to move the Base Rail Foot Assemblies fore-to-aft, locating the trailer’s king pin over the axle. - Page 7 BASE RAIL FOOT ASSEMBLY 5. To minimize any forward and aft movement when towing, secure the feet as far apart, fore-to-aft, as the slot opening on the base rail will allow. If you still experience movement, consider loosening the base rail fasteners and tapping the base rails toward each other to achieve optimal positioning.
-
Page 8: Lubrication
Way Tubes. Since it’s release in 1998, we have made several advancements in the design, strength, and durability of these components. November 2009 brings a new innovation from PullRite Towing Systems with the use of plastics. The Turntable Cam Arm Assembly is now equipped with Plastic Wear Plates. It is imperative that you read each of the following sections so you can learn how to care for your hitch properly. -
Page 9: Fifth Wheel Plate & King Pin
LUBRICATION DO NOT OPERATE HITCH UNTIL YOU READ THIS SECTION! 1. WAY TUBES: Cover the tops and inside face of each Way Tube 2. TURNTABLE SHAFT: Using a directional straw attached to the spray nozzle, direct oil between the openings in the Plastic Wear Plates at both the front and rear 3. -
Page 10: Fifth Wheel Plate Operation
FIFTH WHEEL PLATE OPERATION A better understanding of the plates locking and un-locking operation can be obtained by viewing the working parts from the underside of the plate (#3601 plate pictured below). The Fifth Wheel Plate {A} can be removed and turned over to view the workings of the mechanism. - Page 11 FIFTH WHEEL PLATE OPERATION CAUTION: DO NOT ATTEMPT TO TRIP THE LOCK MECHANISM WITH YOUR HAND. USE A PROBE DEVICE TO SIMULATE THE KING PIN ACTION CLOSED LIFT UPWARD AND PULL OUT WITH FORCE UNTIL LOCK CATCH ENGAGES OPEN (feature available only on #2700 SuperGlide) Page 9...
-
Page 12: Hitching
HITCHING WARNING: Never perform any of the following actions while any part of a person is between the vehicle and trailer. 1. Align your truck with the center of the trailer. The truck should be close to parallel to the centerline of the trailer. Hitching can only be accomplished when the tow vehicle and the trailer are aligned within 10°... -
Page 13: Safety Checks
SAFETY CHECKS 1. Shine a light on the Fifth Wheel Plate Lock Jaw Assembly making sure it has closed around the king pin. 2. Pull the Release Handle towards you without lifting it up. If the Lock Jaw Assembly is completely closed the Handle Catch will prevent you from being able to pull the Release Handle open. -
Page 14: Adjusting The Turntable Cam Arm Assembly
ADJUSTING THE TURNTABLE CAM ARM ASSEMBLY This adjustment will need to be made periodically. If you are experiencing a bump or “clunk” when starting or stopping, or if the hitch is sliding up and down the way tubes when you are not hooked up to the trailer you can perform this adjustment to reduce the noise and keep the hitch in the forward towing position when not trailering. -
Page 15: Challenge Vs. Solution
I need to have a professional evaluate my Contact PullRite’s Customer Service Dept. at (800) 443-2307. SuperGlide. Your needs will be assessed and resolved by PullRite, or you will be directed to an authorized PullRite Service Center. Page 13... -
Page 16: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS 1. Can I pull other Fifth wheel trailers with my SuperGlide hitch? Your SuperGlide hitch can only pull trailers equipped with the SuperGlide Capture Plate. If you hook up to a trailer that does not have a Capture Plate installed, there is no control to keep the hitch in the forward towing position and the weight of the trailer will cause the head to turn and slam or “free fall”... - Page 17 FREQUENTLY ASKED QUESTIONS 7. Can I hook up or unhook at a 90 degree angle? Hooking up can only be accomplished when the truck and trailer are aligned within 10 degrees of each other. See “Hitching” on page 16 for more information on hooking up. Unhooking by pulling the release handle can only be accomplished when the truck and trailer are aligned within 10 degrees of each other.
-
Page 18: 2300 Parts Section
ILLUSTRATION — #2300 EXPLODED VIEW Page 16... -
Page 19: 2300 Parts List
#2300 PARTS LIST ITEM DESCRIPTION PART NO. QTY. MATERIAL FIFTH WHEEL PLATE ASSEMBLY 2901 ROCKER ARM 2302 (See assembly components below in hardware kit) TURNTABLE CAM ARM 2303 CAM ARM SHAFT WEAR PLATES 44120003 ROLLER ASSEMBLY 2304 ROLLER SLOTTED NUT 98150121 1”-14 SLOTTED NUT, ROLLER COTTER PIN... -
Page 20: 2900 Parts Section
ILLUSTRATION — #2900 EXPLODED VIEW Page 18... -
Page 21: 2900 Parts List
#2900 PARTS LIST ITEM DESCRIPTION PART NO. QTY. MATERIAL FIFTH WHEEL PLATE ASSEMBLY 2901 ROCKER ARM 3302 TURNTABLE CAM ARM 2903 ROLLER 2904 ROLLER ASSEMBLY PLASTIC WEAR PLATE KIT 2910 MOLDED PLASTIC WEAR PLATES TURNTABLE WAY TUBES 2906 CAM ARM STOP ASSEMBLY 2705 STOP ASSEMBLY BOLT 98010219... -
Page 22: 2700 Parts Section
ILLUSTRATION — #2700 EXPLODED VIEW Page 20... -
Page 23: 2700 Parts List
#2700 PARTS LIST ITEM DESCRIPTION PART NO. QTY. FIFTH WHEEL PLATE ASSEMBLY 3601 ROCKER ARM 3302 TURNTABLE CAM ARM 2702 PLASTIC WEAR PLATE KIT 2910 MOLDED PLASTIC WEAR PLATES ROLLER ASSEMBLY 2913 ROLLER SLOTTED NUT 98150121 1” - 14 SLOTTED NUT ROLLER COTTER PIN 98410567 1/4”... - Page 24 Hook-up must be performed in a Step 2 straight line. SuperGlide Trailer Plate MANUFACTURED BY: PULLIAM ENTERPRISES, INC. Step 3 13790 East Jefferson Blvd. Mishawaka, IN 46545 (574) 259-1520 • (800) 443-2307 info@pullrite.com • www.pullrite.com #3336 SG Conversion Adapter Instructions (rev. 10.1.14)
- Page 25 PULLIAM immediately, either in writing or by telephone call, Attention Customer Service Department. The owner will be instructed to return the hitch at his expense either to an authorized PullRite dealer or to PULLIAM to repair or replace any parts necessary to correct defects in material or workmanship.
- Page 26 Product Warranty Registration As an owner of a PullRite product, you must register your product to be considered for warranty coverage. See Owners Manual for further details. Please note, that you can also register online at www.pullrite.com/warranty.htm. Name: ________________________________________________________________________________ Address: ________________________________________________________________________________...
- Page 27 MANUFACTURED BY: PULLIAM ENTERPRISES, INC. 13790 East Jefferson Blvd. Mishawaka, IN 46545 (574) 259-1520 • (800) 443-2307 info@pullrite.com • www.pullrite.com U.S. Pat. No’s. 6,308,977 and 8,220,818...
