Draper 20114 Manual

Version 1: January 2024
First release
1. Product Introduction
1.1 Intended Use
This heavy-duty pump is designed for pumping low viscosity fluids such as oils, anti-freeze, add-blue, diesel & other
fluids which are non-corrosive. The pump is supplied with a 2" BSP adaptor suitable for most 205litre drums.
Any other application beyond the conditions established for use will be considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
1.2 Specification
Stock No.
Part No.
Pump type
Flow Rate
Adaptor Collar Size:
Nett Weight
2. Health and Safety Information
Important: Read all the Health and Safety instructions before assembling, operating or maintaining this product.
Non-compliance with these instructions may result in injury or damage to the user or the product.
• DO NOT modify the pump and only use for its intended purpose.
• The pump is designed specifically for the transfer of low viscosity and non-corrosive fluids from reservoirs, tanks
and drums. Always refer to the Safety Data Sheets for the substances being used before use.
• Maintain the pump in good condition and when replacing any parts only use spare parts recommended by Draper.
• Keep children and unauthorised persons away from the working area.
• Always wear protective gloves during operation and wash hands after use.
• DO NOT use the pump as a handle to move the fluid drum.
• Always clear up any spillages to avoid creating dangerous surfaces and environmental pollution.

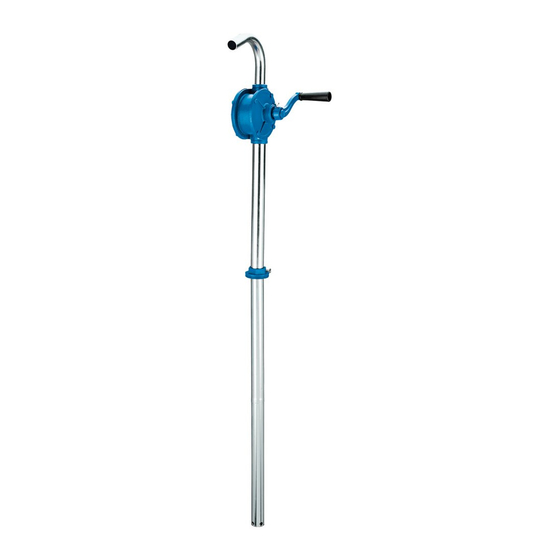

ROTARY
PUMP
20114
20114
RP-3
Rotary vane
600ml/revolution
2" BSP
3kg
EN
Original Instructions
Version 1 – January 2024
