IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
Stock No.38241
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

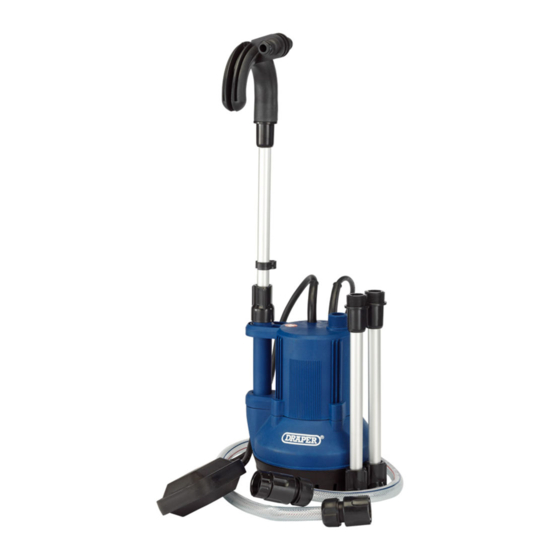

350W Submersible
Water Butt Pumps
Stock No.36327
EFFECTIVE USE OF THIS PRODUCT.
INSTRUCTIONS FOR
36376
38241
Stock No.36376
Stock No.36327
Part No.WBP2A
WBP3A
SWBP4A
Advertisement
Table of Contents
Related Manuals for Draper WBP2A
Summary of Contents for Draper WBP2A
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
These pumps are designed for pumping rain water out of a water butt for garden/plant watering. 4.2 SPECIFICATION Stock No..........36327 ......36376......38241 Part No..........WBP2A ......WBP3A ....... SWBP4A Rated voltage ......230V AC 50Hz....12V DC......12V DC Rated input ........350W......65W......... 65W Maximum total head ......11M.......11M ......... 11M Maximum operating depth ....3M.........3M ........ -
Page 6: Health & Safety Information
If the power cable becomes damaged it must be changed by the manufacturer or it’s service agents. IMPORTANT: Any pump returned to Draper Tools Ltd under warranty must be CLEAN. If a pump is received that has NOT been cleaned, it will be returned to you at your cost. -
Page 7: Specific Safety Instructions For Pump Use
6. The float switch fitted to this pump is not suitable for continuous use as an on/off switch. IMPORTANT: ANY PUMP RETURNED TO DRAPER TOOLS UNDER WARRANTY MUST BE CLEAN. IF A PUMP IS RECEIVED THAT IS NOT, OR HAS NOT BEEN CLEANED, IT WILL BE RETURNED TO YOU AT YOUR COST. -
Page 8: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Stock No.38241 Extension pipe connection. Filtered inlet. Straight extension pieces. Curved extension piece. Male hose connector/pump outlet. Hose. Flow control and On/Off switch. Solar Panel. Ground spike. Charger (not shown). Stock No.36376 Extension pipe connection. Filtered inlet. Straight extension pieces. - Page 9 TECHNICAL DESCRIPTION Stock No.36327 Extension pipe connection. Filtered inlet. Straight extension piece × 2. Curved extension piece. Male hose connector/pump outlet. Moulded plug & cable. Float switch.
-
Page 10: Unpacking & Checking
Technical Description sections on pages 8 and 9. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 11: Assembling The Water Butt Pump
ASSEMBLING THE WATER BUTT PUMP NOTE: Remove the plug from the socket before FIG.1 carrying out adjustment, servicing or maintenance. 8.1 EXTENSION TUBES - FIGS.1 - 2 Attach the straight extension piece to the threaded spigot by tightening clockwise. Ensure seal is installed correctly to achieve a water tight connection. -
Page 12: Operating The Water Butt Pump
OPERATING THE WATER BUTT PUMP 9.1 HORIZONTAL PUMPING DISTANCE The horizontal pumping distance is directly affected by the working head height (maximum total head minus measured working head height, times factor of 10, equals the approximate horizontal pumping distance in metres using solid delivery hose). For example: maximum total head is 7M, minus actual working head of 3M, equals 4M x 10 = 40M approximate pumping distance. -
Page 13: Installation
OPERATING THE WATER BUTT PUMP 9.3 INSTALLATION - FIG. 5 FIG.5 * The pump must be fully submersed before the power is switched on. Do not turn the pump on when its dry. Models 36376 & 38241 These models include a Li-ion (Lithium Ion) battery. This battery must be fully charged before use. -
Page 14: Maintenance
10. MAINTENANCE NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. If the replacement of the power cable is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. 10.1 FILTER REMOVAL - FIGS. -
Page 15: Troubleshooting
11. TROUBLESHOOTING 11.1 TROUBLESHOOTING WARNING: For your own safety always turn the main switch on the machine "off" and remove the plug from the power supply before carrying out any maintenance or trouble shooting. Problem Cause Remedy No power 1. Fuse. 1. -
Page 16: Disposal
12. DISPOSAL 12.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... -
Page 17: Explanation Of Symbols
13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish * Waste Electrical & Electronic Equipment. - Page 18 NOTES...
- Page 19 NOTES...
- Page 20 - Sales Fax: (023) 8049 4209 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST KCDH180815...
