MACHINE SHIPPED WITH NO OIL, ADD OIL BEFORE TRYING TO START THIS MACHINE.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.
Water Pumps
Stock No.64065
Stock No.24580
EFFECTIVE USE OF THIS PRODUCT.
INSTRUCTIONS FOR
Petrol
Part No.PWP52
Part No.PWP81

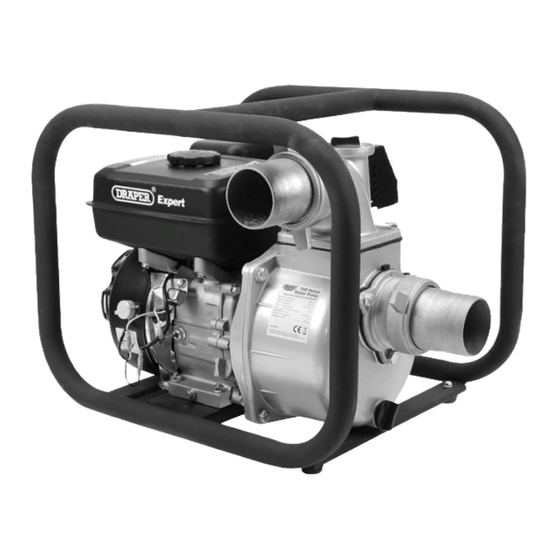

24580 Shown
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper PWP52
Summary of Contents for Draper PWP52
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
11.10 RISK FROM LIFTING ..................19 OPTIONAL ACCESSORIES 12.1 DRAPER SUCTION HOSES................. 20 12.2 DRAPER HOSE CLAMPS..................20 12.3 DRAPER FOOT/NON RETURN VALVES............. 20 TROUBLE SHOOTING......................21 EXPLANATION OF SYMBOLS 14.1 EXPLANATION OF SYMBOLS ................22 DISPOSAL 15.1 DISPOSAL ......................23... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the 12 month period. -
Page 5: Introduction
4.1 SCOPE Ideal for building sites and agricultural applications where mains power is not available. 4.2 SPECIFICATION The Draper Tools policy of continuous improvement determines the right to change specification without notice. Stock no..........64065 ..............24580 Part no..........PWP52 ..............PWP81 Engine .......... -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS NOTE: Water pumps are designed to give safe and dependable service if operated according to instructions. Read and understand this owners manual fully before operating this pump. You can help prevent accidents by being familiar with the pump controls and by observing safe operating procedures. - Page 7 HEALTH & SAFETY INFORMATION MAINTENANCE • Never modify the pump in anyway. • Always maintain the pump in good working order regularly serviced by an authorised service agent. • Only use replacement parts supplied by the manufacturer. • Only use fresh, clean and good quality fuel in the engine. •...
-
Page 8: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION 24580 Shown Fuel tank Oil level dipstick Fuel tank cap Inlet [suction] Muffler [exhaust] Priming opening Air filter housing Drain Throttle lever Outlet Choke lever HT lead Fuel lever Spark plug cap Recoil [pull] start handle Hose barb Anti vibration feet Hose barb coupling... -
Page 9: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the water pump. -
Page 10: Preparing The Water Pump
PREPARING THE WATER PUMP 8.1 HOSE CONNECTION - FIGS. 1 - 2 To stop the hose collapsing on the suction side of the pump; a solid wall (reinforced) hose must be used. Please see optional accessories section for recommended suction hose. i. -
Page 11: Setting The Water Pump
SETTING THE WATER PUMP 9.1 PREPARING THE PUMP - FIGS. 3 - 6 FIG.3 It is important to check the pump before you commence operating the unit. IMPORTANT: Ensure that the engine has oil. When leaving the factory, this water pump has NO OIL in the engine. -
Page 12: Checking The Engine Oil
SETTING THE WATER PUMP 9.3 CHECKING THE ENGINE OIL - FIGS. 7 - 8 The motor of this pump is not filled with oil. Prior to starting the motor ensure the crank case is filled with SAE #30 4 stroke oil. Damage to the motor is not covered under warranty if the motor is run without oil. -
Page 13: Basic Water Pump Operation
10. BASIC WATER PUMP OPERATION 10.1 PRIMING THE PUMP - FIG. 9 FIG.9 CAUTION!: Never use the pump without priming it first. It is necessary to prime the pump before use. You must first fill the impeller housing with water before you connect the top outlet hose. -
Page 14: Starting The Machine
10. BASIC WATER PUMP OPERATION 10.3 STARTING THE MACHINE - FIG.11 FIGS. 11 - 14 After all the instructions and warnings have been followed and observed the engine is ready to start. i. Slide the fuel lever to the right; turning on the fuel supply. -
Page 15: Maintenance
11. MAINTENANCE Make sure that the pump is not running when carrying out maintenance work. The ‘Draper’ water pump has been designed to operate over a long period of time. Continuous satisfactory operation depends upon proper machine care, regular cleaning and by following the periodic maintenance schedule. -
Page 16: Periodic Maintenance
11. MAINTENANCE 11.3 PERIODIC MAINTENANCE Pre- Item Remarks Initial 1 Every 3 Every 6 Every 12 operation month months months months check or 20Hrs or 50Hrs or 100Hrs or 300Hrs (daily) Check condition, adjust gap Spark plug and clean. Replace if necessary. Check oil level. -
Page 17: Risk Of Fire
11. MAINTENANCE 11.4 RISK OF FIRE HAZARD WHAT COULD HAPPEN HOW TO PREVENT IT Attempting to fill the Fuel and fuel vapours can become ignited Turn engine off and allow it to cool before fuel tank while the by coming in contact with hot components adding fuel to the tank. -
Page 18: Risk Of Injury And Property Damage When Transporting Water Pump
11. MAINTENANCE 11.5 RISK OF INJURY AND PROPERTY DAMAGE WHEN TRANSPORTING WATER PUMP HAZARD WHAT COULD HAPPEN HOW TO PREVENT IT Fire, inhalation, damage The water pump is equipped with a fuel Fuel or oil can leak or spill and could result to vehicle surfaces in fire or breathing hazard, serious injury or drain valve, turn the valve to the off... -
Page 19: Risk Of Moving Parts
11. MAINTENANCE 11.9 RISK OF MOVING PARTS HAZARD WHAT COULD HAPPEN HOW TO PREVENT IT Contact with moving The water pump contains parts which Never operate water pump with guarding parts can result in or cover plates removed. Avoid wearing rotate at high speed during operation. -
Page 20: Optional Accessories
12.2 Draper hose clamps Description Stock No. Part No. 2" hose clamps x2 22599 ASHC2 3" hose clamps x2 22601 ASHC3 12.3 Draper foot/non return valves Description Stock No. Part No. 2" Foot/Non return valve 19548 FVS2 3" Foot/Non return valve 19552 FVS3... -
Page 21: Troubleshooting
13. TROUBLESHOOTING PROBLEM CAUSE REMEDY Engine does not 1. Fuel. 1. Check fuel level, if low, refill. start. 2. Spark 2. Remove plug and check spark. 3. Other 3. Contact an authorised service agent. 1. Priming water. 1. Check water level, if low, Pumping failure. -
Page 22: Explanation Of Symbols
14. EXPLANATION OF SYMBOLS 14.1 EXPLANATION OF SYMBOLS Warning! Do not use in the wet. Read the instruction manual For outdoor use only. Caution! Do not expose to rain. Engine and exhaust Danger! become hot during use; Highly flammable liquid do not touch. -
Page 23: Disposal
14. DISPOSAL 14.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 24 NOTES...
- Page 25 NOTES...
- Page 26 NOTES...
- Page 27 NOTES...
- Page 28 - Sales Fax: (023) 8049 4209 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST KCAN121216...
