Summary of Contents for Clarke POWER IG1100

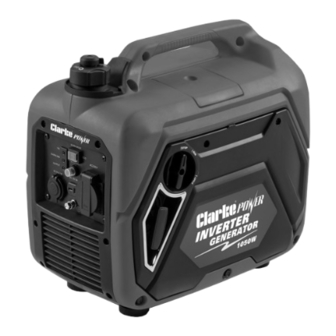

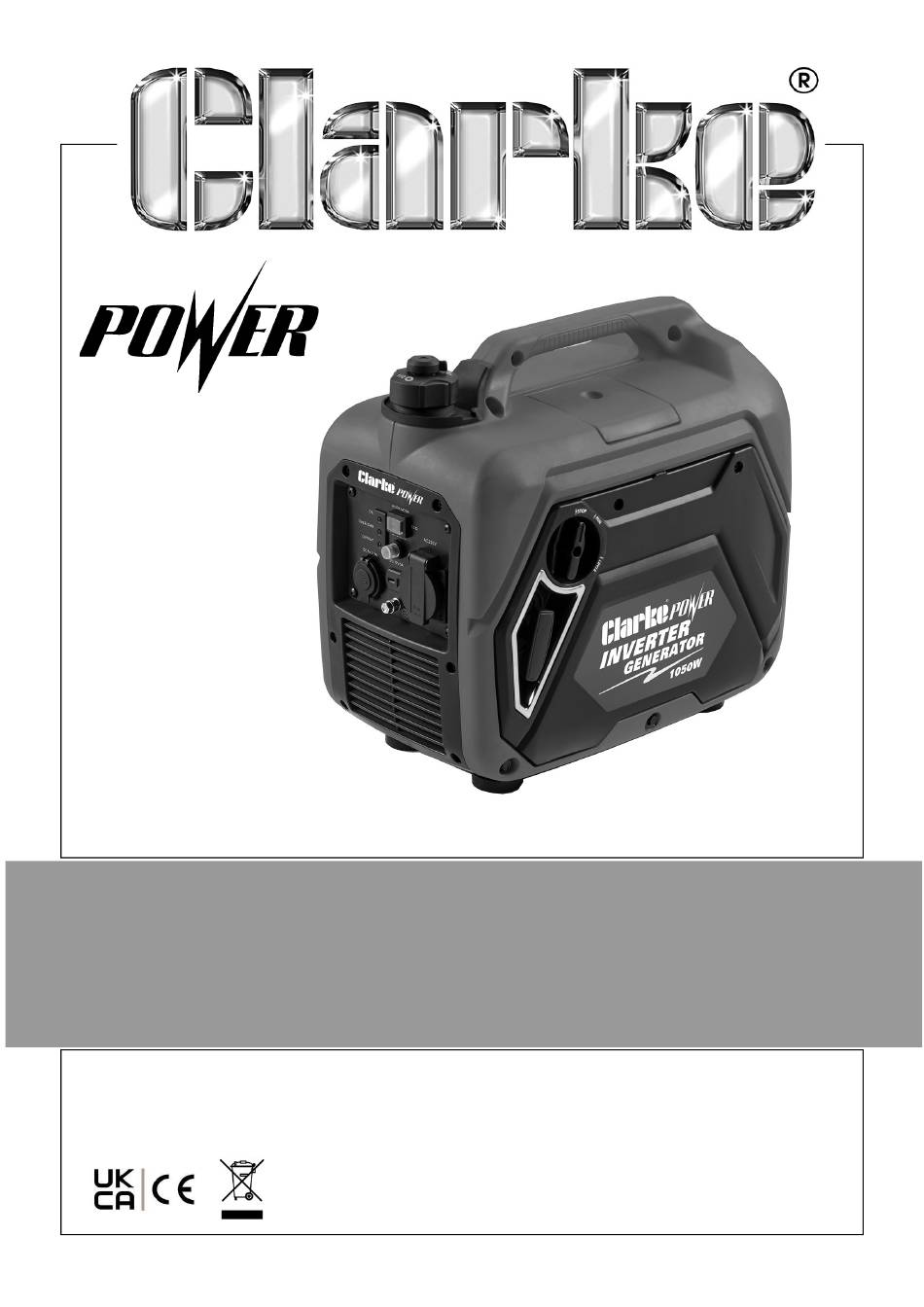

- Page 1 WARNING: Do not use the generator without reading this manual 1050W INVERTER GENERATOR MODEL NO: IG1100 PART NO: 8877113 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL0724...
-
Page 2: Environmental Protection
INTRODUCTION Before you use this product, read this manual and follow the instructions carefully. In doing so you will ensure the safety of yourself and others around you, and you can also expect your purchase to give you a long and satisfactory service. GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. -
Page 3: Specifications
SPECIFICATIONS Engine Engine Model LY144F Type Petrol Displacement (cc) 53.5 5000 Ignition type Fuel tank capacity: Safe Fuel Level (L) Fuel Consumption at 3/4 Load (L/h) Maximum run time at 3/4 load (h) Approx. 2h 50m Engine oil capacity (L) 0.15 Emissions (g/kWh) CO, HC, NOx 240.12, 34.84, 1.93... -
Page 4: General Safety Rules
GENERAL SAFETY RULES WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED WORK AREA • ALWAYS use in a well ventilated area. • ALWAYS position the exhaust outlet away from people. • Read these safety instructions before using the equipment. •... -
Page 5: Additional Safety Rules For Generators
4. Make sure you ground (earth) the generator. ADDITIONAL SAFETY RULES FOR GENERATORS 1. ALWAYS make sure the applied load does not exceed the generator rating. Overloading the generator is dangerous and could cause serious damage. 2. ALWAYS turn off and disconnect any appliance from the generator when carrying out any maintenance. -
Page 6: Overview - Control Panel
OVERVIEW - CONTROL PANEL NO DESCRIPTION NO DESCRIPTION Oil Alarm, Overload & Output 2 Pin 12V/5A DC Outlet Indicator Lights Economy Control Switch 2 x 5V/2.1A USB DC Outlets DC Breaker Reset Switch Earthing Point 3 Pin 13A 230V AC Outlet Parts &... - Page 7 OVERVIEW - GENERAL COMPONENTS NO DESCRIPTION NO DESCRIPTION Recoil Starter Fuel Cap/Fuel Tank Vacuum Relief Valve Stop/Run/Start Engine Switch Spark Plug Cover Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 8: Unpacking And Assembly
UNPACKING AND ASSEMBLY Unpack your generator and check the following items are present. Should there be any missing or damaged during transit contact your CLARKE dealer. 1 x 1050 Watt Inverter Generator 1 x 12 Volt Crocodile Clip Lead Assembly 1 x Spark Plug Box Spanner with Arm 1 x Oil Bottle &... -
Page 9: Checking And Adding Engine Oil
Attach the cable to the generator at the earthing point (shown on the right). Connect the other end of the cable to a steel or copper earth rod. If you have purchased a rod, make sure you connect it in accordance with the installation instructions supplied with the rod. -
Page 10: Checking & Adding Fuel
(0.15 litres) • We recommend the use of SAE 10W-30 oil in this generator. (CLARKE part number 3050845) • DO NOT tilt the generator when adding engine oil. This could result in overfilling and damage to the engine. -
Page 11: Using Your Generator
1. Open the fuel cap located on top of the generator. 2. Slowly add fuel to the fuel tank, until the fuel level float is at the top of the fuel filter. • DO NOT overfill the fuel tank. Maximum safe level is 2 litres. 3. - Page 12 3. Turn the engine switch to the ‘START’ position. 4. Hold the recoil starter handle firmly and pull lightly until you start to feel resistance and then pull up sharply to start the engine. NOTE: You may have to do this more than once.
-
Page 13: Connecting Electrical Devices
ECONOMY (ECO) CONTROL SWITCH When the Economy Control Switch is turned to ‘ON (I)’, the engine keeps running at idle state automatically when an electrical appliance is disconnected. It will return to the correct speed with the requirements of an electrical load. Switching the ECO switch to ‘ON (I)’... - Page 14 DC POWER 1. Set the economy switch to ‘OFF (O)’. 2. Start the generator, see pages 11-12. 3. Make sure the appliance is turned off before connecting it to the generator. 4. Connect the USB appliance (max 5A) to the generator. 12V DC POWER (TOPPING UP CAR BATTERIES) WARNING: FOR YOUR SAFETY PERFORM THE FOLLOWING INSTRUCTIONS IN THE ORDER SHOWN.
-
Page 15: Indicator Lights
INDICATOR LIGHTS OUTPUT The Output Indicator Light (Green) will remain on during normal operation. OVERLOAD If the generator becomes overloaded or the connected appliance short circuits, the Overload Light will turn red, the Output Indicator Light will turn from Green to Red. The power will switch OFF, but the engine will continue running. -
Page 16: Shutting Down The Generator
SHUTTING DOWN THE GENERATOR To stop the generator in an emergency simply turn the Stop/Run/Start Engine Switch to the ‘STOP’ position. NOTE: Turn off any electric devices. NOTE: Set the economy control switch to the ‘OFF (O)’ position. 1. Disconnect any electric devices. 2. -
Page 17: Maintenance
• DO NOT fill above the max level mark (0.15 litres) • We recommend the use of SAE 10W-30 oil in this generator. (CLARKE part number 3050845) 5. Replace the oil filler cap and maintenance panel. ENVIRONMENTAL PROTECTION One of the most damaging sources of pollution is oil. DO NOT throw away used engine oil in with your domestic waste or down drains and sinks. - Page 18 3. Remove the air filter cover. 4. Remove the air filter element. 5. If the air filter is damaged contact the CLARKE spare parts department for a replacement. • If the filter is dirty, wash it in a solution of warm water and mild detergent and then rinse thoroughly.
- Page 19 SPARK PLUG (EVERY 300 HOURS OR 2 YEARS OF USE) CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK PLUG. 1. Slide out the spark plug cover panel located on top of the generator. 2. Remove the spark plug cap from the spark plug.
- Page 20 1. Remove the fuel tank cap. 2. Lift out the filter inside. 3. Clean the filter with solvent. If the filter is damaged, contact CLARKE Spare Parts department 020 8988 7400 for a replacement. 4. Replace the filter and fuel tank cap.
-
Page 21: Troubleshooting
TROUBLESHOOTING WHEN THE ENGINE CAN NOT BE STARTED APPLIANCE DOES NOT OPERATE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 22 DC RECEPTACLE WITHOUT ANY ELECTRICITY If these do not solve your problem, please contact the CLARKE service department. see below. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 23 EXPLODED DIAGRAM - ENGINE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 24: Parts List - Engine
PARTS LIST - ENGINE Description Description Flange Bolt M5 x 12 Oil Scale Gasket Gasket Lower Crankcase Recoil Starter Oil Sensor O Sealing Ring Flange Bolt M5 x 20 Oil Sensor High Voltage Transformer Flange Bolt M5 x 12 Fan Cover Flange Bolt M5 x 12 Line Cord Bolt Gasket 5 x 14 x 1... - Page 25 Bolt M3 x 6 Circlip 3 Flange Bolt M5 x 12 Jilt Oil Gear Cylinder Head Cover Jilt Oil Gear Shaft Cylinder Head Gasket Gasket Spring Upper Retainer Crankcase Cover Exhaust Valve Exhaust Pipe Gasket Valve Oil Seal Exhaust Pipe Exhaust Valve Muffler Gasket Intake Valve...
- Page 26 EXPLODED DIAGRAM - GENERAL Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 27: Parts List - General
PARTS LIST - GENERAL Description Description Right Side Cover Rubber Feet Trim Bolt Rubber Foot Fixing Bolt Skeleton Step Fixing Bolt Inverter Right Frame Panel Cover Skeleton Bolt Panel Muffler Housing Fixing Bolts M5 Screw Muffler Housing M5 Screw Card Fuel tank 3 in 1 Igniter Fuel Filter... -
Page 28: Wiring Diagram - Engine
WIRING DIAGRAM - ENGINE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 29 WIRING DIAGRAM - GENERAL Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 30 DECLARATION OF CONFORMITY -UKCA Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 31: Declaration Of Conformity (Ce)
DECLARATION OF CONFORMITY -CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
