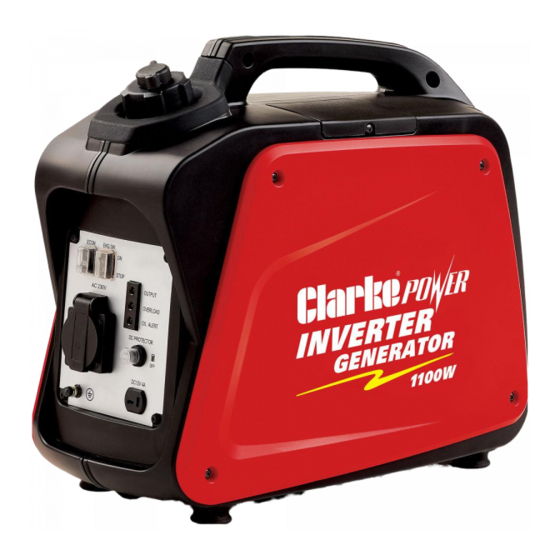

- Page 1 1100W INVERTER GENERATOR MODEL NO: IG1200D PART NO: 8877112 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0521...
-
Page 2: Environmental Protection
INTRODUCTION Thank you for purchasing this CLARKE Inverter Generator. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED WORK AREA • ALWAYS use in a well ventilated area. • ALWAYS position the exhaust outlet away from people. • Read these safety instructions before using the equipment. •... -
Page 4: Prevention Of Electric Shock
PREVENTION OF ELECTRIC SHOCK 1. NEVER use the generator in wet conditions unless it is well protected/ covered. Under these conditions, adequate ventilation MUST be provided. 2. NEVER operate the generator with wet hands. 3. NEVER use water or any other liquids to clean the generator. 4. -
Page 5: Generator Overview
GENERATOR OVERVIEW NO DESCRIPTION NO DESCRIPTION Air Vent Knob 10 Earthing Point Fuel Cap 11 Economy Control Switch Fuel Valve Knob 12 AC Socket (230V) Starting Handle 13 DC Socket (12V) Side Maintenance Cover 14 DC Circuit Breaker Top Maintenance Cover 15 Output Indicator Muffler 16 Overload Indicator... -
Page 6: Unpacking And Assembly
UNPACKING AND ASSEMBLY Unpack your generator and check the following items are present. Should there be any missing or damaged during transit contact your CLARKE dealer. 1 x 1100 Watt Inverter Generator 1 x 12 Volt Connecting Lead Assembly 1 x Spark Plug Box Spanner... -
Page 7: Checking The Air Filter
Connect the other end to the spike between a flat washer and the copper rod with a lock washer under the head of the M6 machine screw in a similar fashion to the earth point screw on the generator. When pushing the spike into the ground the generator must not be running and it is suggested that the spike is pushed into the ground by at... -
Page 8: Check The Engine Oil Level
4. Remove the air filter element. 5. If the air filter is damaged contact the CLARKE spare parts department for a replacement. • If the filter is dirty, wash it in a solution of warm water and mild detergent and rinse thoroughly. -
Page 9: Check The Fuel Level
(0.27 litres) Max Level • We recommend the use of 1L SAE10W/30 oil in this generator. (CLARKE part number 3050845) Min. Level • Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine. -
Page 10: Using Your Generator
USING YOUR GENERATOR STARTING THE ENGINE 1. Remove all connections from the AC sockets. 2. Hold the fuel tank cap so that it will not move, and turn the air vent knob to the ‘open’ position. 3. Turn fuel valve to the ON position (pointing right). - Page 11 NOTE: When you first start the generator, the overload indicator may light up for a few seconds, this is normal. If the overload indicator is still lit after 5 seconds, stop the engine and contact your CLARKE dealer. 8. Once the engine has warmed up, move the choke lever to the left, to the “run”...
-
Page 12: Economy Switch
ECONOMY SWITCH Recommended to minimize fuel consumption and further reduce noise levels when no load is applied to the generator. Engine speed varies with the load. OFF: The smart throttle system does not operate. CAUTION: THE ECONOMY CONTROL DOES NOT WORK EFFECTIVELY IF THE ELECTRICAL APPLIANCE REQUIRES ‘BURSTS’... - Page 13 DC POWER 1. Set the economy control switch to ‘OFF’. 2. Start the generator. See page 10. 3. Make sure the appliance is turned off before connecting it to the generator. 4. Connect the 12V appliance (max 4A) to the generator. DC POWER (TOPPING UP CAR BATTERIES) WARNING: FOR YOUR SAFETY PERFORM THE FOLLOWING INSTRUCTIONS IN THE ORDER SHOWN.
-
Page 14: Indicator Lights
DC OVER LOAD PROTECTOR If the DC overload protector activates, wait for a few minutes and then press the reset button shown on the right. INDICATOR LIGHTS OUTPUT The output indicator (Green) will remain on during normal operation. OVERLOAD The overload indicator (Red) will light up if there is an overload or a short circuit in the connected appliance. -
Page 15: Shutting Down The Generator
SHUTTING DOWN THE GENERATOR To stop the generator in an emergency simply set the engine switch to ‘OFF’. NOTE: Turn off any electric devices. NOTE: Set the economy control switch to the ‘0’ (OFF) position. 1. Disconnect any electric devices. 2. -
Page 16: Maintenance
4. Fill the oil reservoir with fresh oil. • Do not fill above the max level mark (0.27 litres) • We recommend the use of SAE10W/30 oil in this generator. (CLARKE part number 3050845) Max Level 5. Replace the oil filler cap and Min. Level maintenance panel. - Page 17 3. Remove the air filter panel. 4. Remove the air filter element. 5. If the air filter is damaged contact the CLARKE spare parts department for a replacement. • If the filter is dirty, wash it in a solution of warm water and mild detergent and then rinse thoroughly.
- Page 18 SPARK PLUG (EVERY 50 HOURS OF USE) CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK PLUG. 1. Remove the top maintenance panel. 2. Remove the spark plug cap from the spark plug. 3. Fit the spark plug box spanner over the spark plug as shown.
- Page 19 • Adjust if necessary. 7. Check the overall condition of the spark plug and replace if damaged. NOTE: Spark plugs are available from CLARKE Spare Parts department 020 8988 7400. 8. Reinstall the spark plug and replace the spark plug cap and top panel.
-
Page 20: Troubleshooting
The generator is The air filter is dirty Clean the air filter. See page 17. difficult to start If this does not solve your problem, please contact the CLARKE service department. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 21: Specifications
SPECIFICATIONS Engine Engine Model XY144F-1 Type Petrol Displacement (cc) Ignition type C.D.I Fuel tank capacity (L) Maximum run time at 3/4 load (h) Engine oil capacity (L) 0.27 Guaranteed sound power (LWA dB) 93 dB Generator Rated Frequency (Hz) Rated AC Voltage (V) Rated Output Power: (Continuous) (W) 1000 Maximum Measured Output Power (W) -
Page 22: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 23 DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
