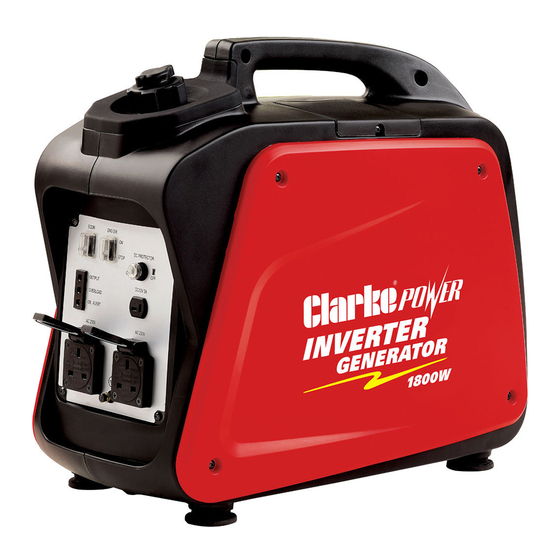

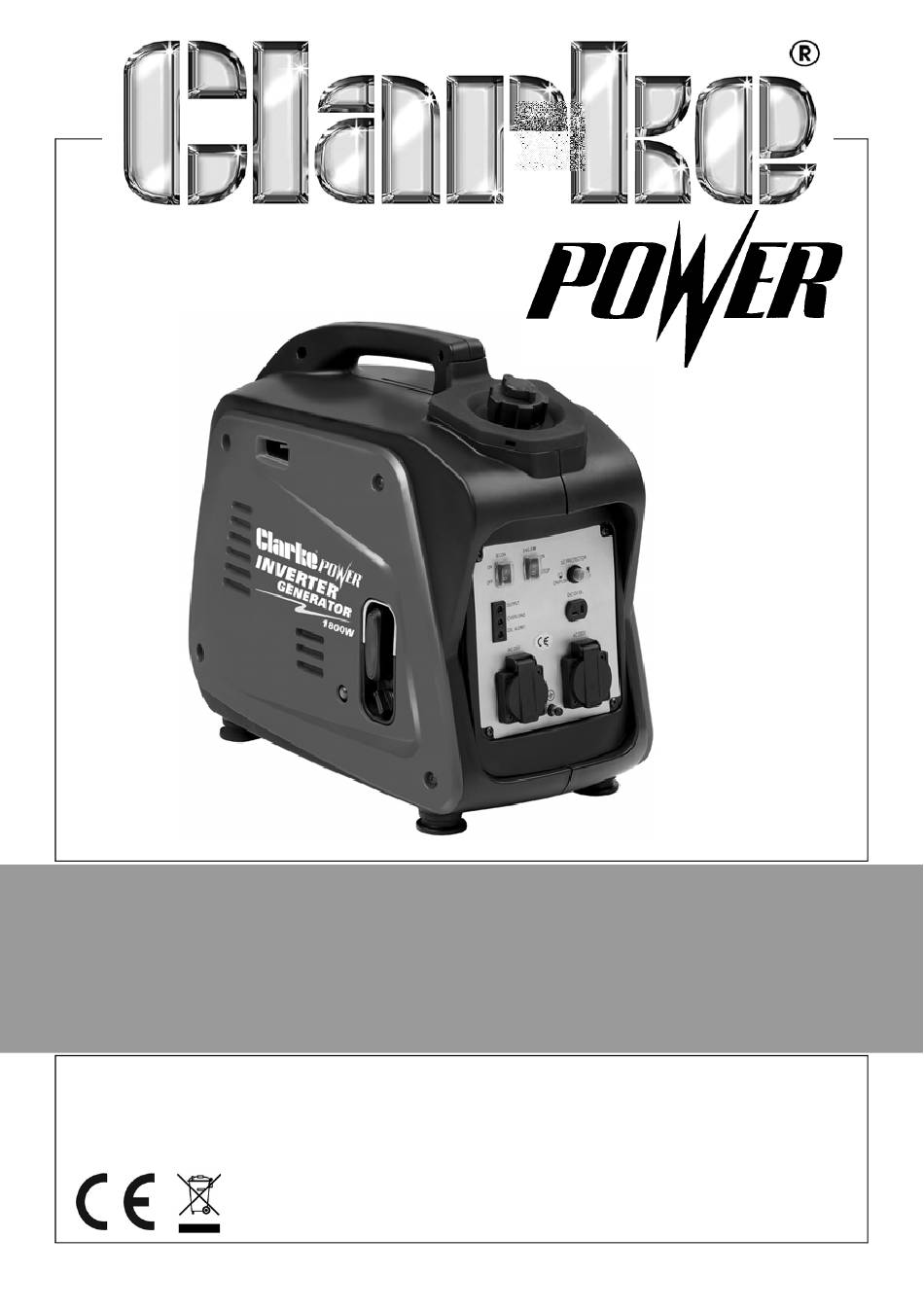

- Page 1 1800W INVERTER GENERATOR MODEL NO: IG2000B PART NO: 8877081 OPERATION & MAINTENANCE INSTRUCTIONS LS0718 - ISS 4 ORIGINAL INSTRUCTIONS...
-
Page 2: Introduction
INTRODUCTION Thank you for purchasing this CLARKE 1800W Inverter Generator. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Table Of Contents
Fuel tank filter (every 100 hours of use or every 6 months) ..22 TROUBLESHOOTING ............23 SPECIFICATIONS ..............24 DECLARATION OF CONFORMITY ........25 OTHER GENERATORS IN THE CLARKE RANGE ....27 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 4: General Safety Rules
GENERAL SAFETY RULES WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED WORK AREA • Always use in a well ventilated area. • Always position the exhaust outlet away from people. • Read these safety instructions before using the equipment. •... -
Page 5: Prevention Of Electric Shock
PREVENTION OF ELECTRIC SHOCK 1. Never use the generator in wet conditions unless it is well protected/ covered. Under these conditions, adequate ventilation MUST be provided 2. Never operate the generator with wet hands 3. Never use water or any other liquids to clean the generator. 4. -
Page 6: Safety Symbols
SAFETY SYMBOLS Caution - The user should be aware of a general hazard Dangerous Voltage Flammable Hot Surface - Do not touch Poisonous fumes - Do not use the generator in an enclosed space. Read Instruction manual before use. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 7: Generator Overview
GENERATOR OVERVIEW DESCRIPTION NO DESCRIPTION Air Vent Knob Earthing Point Fuel Cap Economy Control Switch Fuel Valve Knob AC Socket Starting Handle DC Socket Side Maintenance Cover DC Circuit Breaker Top Maintenance Cover Output Indicator Muffler Overload Indicator Choke Oil Alarm Indicator Engine ON/OFF Switch Primer Bulb Parts &... -
Page 8: Unpacking And Assembly
UNPACKING AND ASSEMBLY Unpack your generator and check the following items are present. Should there be any missing or damaged during transit contact your Clarke dealer. 1 x 1800 Watt Inverter Generator 1 x 12 Volt Connecting Lead Assembly 1 x Spark Plug Box Spanner... -
Page 9: Earthing
EARTHING WARNING: IT IS ADVISABLE TO PROPERLY EARTH YOUR GENERATOR BEFORE STARTING USING A WIRE AND A SMALL METAL EARTH SPIKE. THE WIRE AND EARTH SPIKE ARE NOT SUPPLIED WITH THE UNIT. An earth spike and cable can be purchased at your local camping supplier, or alternatively an earth spike can be made, and it is suggested you get advice from a qualified electrician. -
Page 10: Checking The Air Filter
3. Slide out the air filter panel. 4. Remove the air filter element. 5. If the air filter is damaged contact the Clarke spare parts department for a replacement. • If the filter is dirty, wash it in a solution of warm water and mild detergent and rinse thoroughly. -
Page 11: Check The Engine Oil Level
• Do not fill above the max level mark (0.75 litres) • We recommend the use of SAE30 oil in this generator. (Clarke part number 3050852) • Do not tilt the generator when adding engine oil. This could result in overfilling and damage to the engine. -
Page 12: Check The Fuel Level
CHECK THE FUEL LEVEL WARNING: MAKE SURE THERE IS FUEL IN THE TANK WHEN USING THE GENERATOR. RUNNING OUT OF FUEL OR STOPPING THE ENGINE SUDDENLY WITH A LOAD CONNECTED COULD CAUSE SERIOUS DAMAGE. 1. To check the fuel level, open the fuel filler cap. -
Page 13: Using Your Generator
USING YOUR GENERATOR STARTING THE ENGINE 1. Remove all connections from the AC sockets. 2. Hold the fuel tank cap so that it will not move, and turn the air vent knob to the ‘open’ position. 3. Turn fuel valve to the ON position (pointing right). - Page 14 NOTE: When you first start the generator, the overload indicator may light up for a few seconds, this is normal. If the overload indicator is still lit after 5 seconds, stop the engine and contact your Clarke dealer. 8. Once the engine has warmed up, move the choke lever to the left, to the “run”...
-
Page 15: Economy Switch
ECONOMY SWITCH Recommended to minimize fuel consumption and further reduce noise levels when no load is applied to the generator. Engine speed varies with the load. OFF: The smart throttle system does not operate. CAUTION: THE ECONOMY CONTROL DOES NOT WORK EFFECTIVELY IF THE ELECTRICAL APPLIANCE REQUIRES ‘BURSTS’... - Page 16 DC POWER 1. Set the economy control switch to ‘OFF’. 2. Start the generator. See page 13. 3. Make sure the appliance is turned off before connecting it to the generator. 4. Connect the 12V appliance (max 4A) to the generator. DC POWER (TOPPING UP CAR BATTERIES) WARNING: FOR YOUR SAFETY PERFORM THE FOLLOWING INSTRUCTIONS IN THE ORDER SHOWN.
-
Page 17: Indicator Lights
DC OVER LOAD PROTECTOR If the DC overload protector activates, wait for a few minutes and then press the reset button shown on the right. INDICATOR LIGHTS OUTPUT The output indicator (Green) will remain on during normal operation. OVERLOAD The overload indicator (Red) will light up if there is an overload or a short circuit in the connected appliance. -
Page 18: Shutting Down The Generator
SHUTTING DOWN THE GENERATOR To stop the generator in an emergency simply set the engine switch to ‘OFF’. NOTE: Turn off any electric devices. NOTE: Set the economy control switch to the ‘0’ (OFF) position. 1. Disconnect any electric devices. 2. -
Page 19: Maintenance
Fill the oil reservoir with fresh oil. • Do not fill above the max level mark (0.75 litres) • We recommend the use of SAE30 oil in this generator. (Clarke part number 3050852) 5. Replace the oil filler cap and Max Level maintenance panel. Min Level ENVIRONMENTAL PROTECTION One of the most damaging sources of pollution is oil. -
Page 20: Air Filter (Every 50 Hours Of Use)
3. Remove the air filter panel. 4. Remove the air filter element. 5. If the air filter is damaged contact the Clarke spare parts department for a replacement. • If the filter is dirty, wash it in a solution of warm water and mild detergent and then rinse thoroughly. -
Page 21: Spark Plug (Every 50 Hours Of Use)
SPARK PLUG (EVERY 50 HOURS OF USE) CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK PLUG. 1. Remove the top maintenance panel. 2. Remove the spark plug cap from the spark plug. 3. Fit the spark plug box spanner over the spark plug as shown. -
Page 22: Fuel Tank Filter (Every 100 Hours Of Use Or Every 6 Months)
1. Remove the fuel tank cap 2. Lift out the filter inside. 3. Clean the filter with solvent. If the filter is damaged, contact Clarke Spare Parts department 020 8988 7400 for a replacement. 4. Replace the filter and fuel tank cap. -
Page 23: Troubleshooting
The air filter is dirty Clean the air filter. See page 20 difficult to start If this does not solve your problem, please contact the Clarke service department. see below. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 24: Specifications
SPECIFICATIONS Engine Engine Model XY152F-4 Type Petrol Displacement (cc) Ignition type C.D.I Fuel tank capacity (L) Maximum run time at 3/4 load (h) Engine oil capacity (L) 0.75 Guaranteed sound power (LWA dB) 93 dB Generator Rated Frequency (Hz) Rated AC Voltage (V) Rated Output Power: (Continuous) (W) 1700 Maximum Rated Output Power (W) -
Page 25: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 26 DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 27: Other Generators In The Clarke Range
OTHER GENERATORS IN THE CLARKE RANGE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
