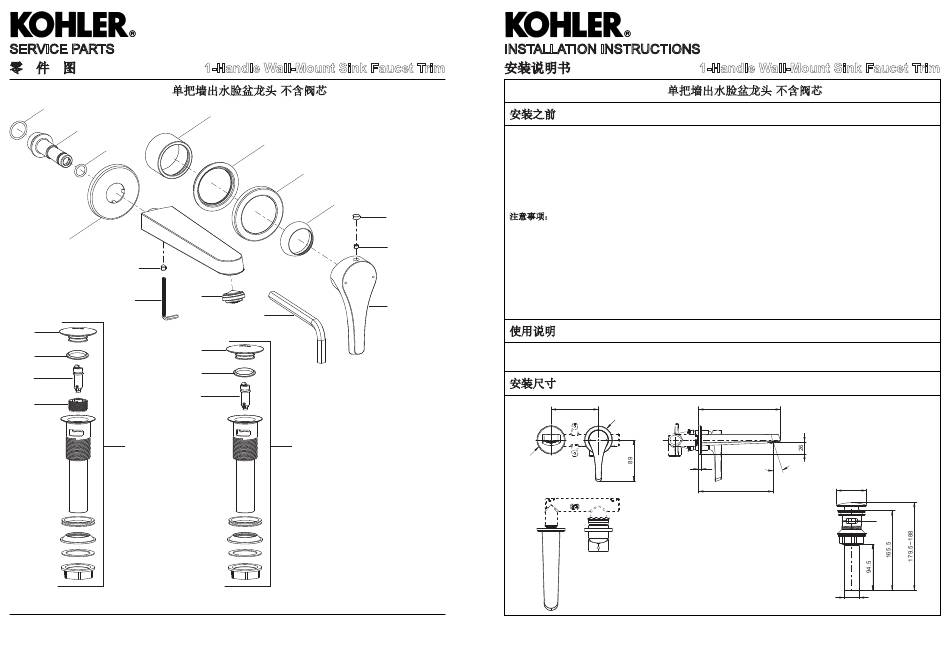

Kohler BEAM 26048T-4 Installation Instructions

SERVICE PARTS
零 件 图
26048T-4 单把墙出水脸盆龙头 不含阀芯 6P
34353
1462743
42451
1207242**
3013706
1213964
833730
1381533**
1470997**
1381534
1381534
1381535
1381535
1381536
1381421**
(仅用于CP表面)
(Only for CP finish)
**订购时请说明颜色编号
**Color code must be specified when ordering
1444406-T2-C
爵明
BEAM
1-Handle Wall-Mount Sink Faucet Trim
1433535**
1433532
1386369**
1209778**
1490520
1446971**
(仅用于BL表面)
(Only for BL finish)
INSTALLATION INSTRUCTIONS
(PJ)
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
1245237 说明书包括重要的安装、保养及清洁方面的内容，请
(仅用于BL表面)
把这些资料交给用户阅读。
(Only for BL finish)
3008523
注意事项：
(用于其它表面)
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
(For other finishes)
2. 检查供水管有无损坏和漏水。如需要，进行替换和
1249005
维修。
3. 遵守当地管路安装条例。
4. 本产品需与单把墙出水脸盆龙头阀芯26088T-NA
搭配使用。
5. 确保安装此产品之前，单把墙出水脸盆龙头阀芯
1441922**
26088T-NA已安装完毕。
使用说明
轻轻提起把手，顺时针旋转把手为热水，逆时针旋
转把手为冷水。
安装尺寸
Ø60
4
1444406-T2-C
1-Handle Wall-Mount Sink Faucet Trim
26048T-4 单把墙出水脸盆龙头 不含阀芯 6P
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
3. Observe local plumbing codes.
4. This product should match with the wall mount
lavatory faucet valve 26088T-NA.
5. Install the wall mount lavatory faucet valve
26088T-NA before installing this product.
HANDLE OPERATION
Lift the handle gently. Turn clockwise for hot water,
turn counter-clockwise for cold water.
ROUGH-IN DIMENSIONS
102 176
Ø60
6
160
爵明
BEAM
(PJ)
18°
Ø64
Ø42
Ø31.75
1
