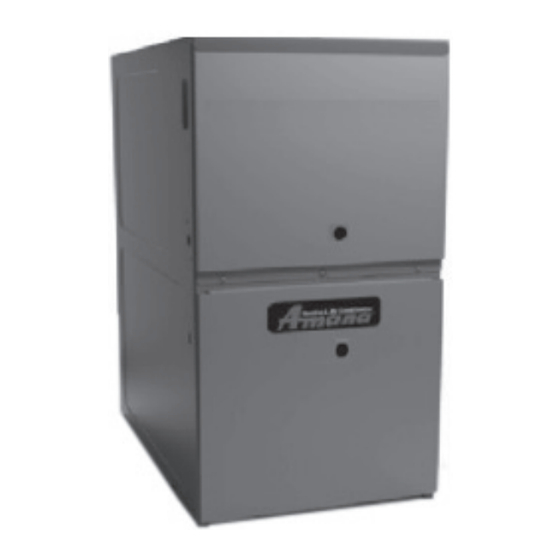

Amana AR9T80 Manual

Heating Input: 40,000-120,000 BTU/h
Standard Features
• Two-stage gas valve provides quiet,
economical heating
• Efficient and quiet multi-speed ECM circulator motor
• SureStart® Silicon Nitride igniter
designed for long igniter life
• Self-diagnostic control board
• Low constant fan speed circulates air
throughout the home
• Quiet, two-speed induced draft blower
• California Low NOx emissions-compliant
models available
• Can not be installed in California's South Coast
AirQuality Management District (SCAQMD)
and San Joaquin Valley Air Pollution Control
District (SJVAPCD).
• AHRI Certified; ETL Listed
SS-AR9T80_AD9T80-R32
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.
AR9T80 / AD9T80
Contents
Cabinet Features
• Fully insulated, heavy-gauge steel cabinet
with durable baked-enamel finish
• Multi-position installation:
AR9T80: upflow, horizontal left or right
AD9T80: downflow, horizontal left or right
• Removable bottom for side- or
bottom-return applications
• Convenient left or right connection
for gas/electric service
• Cabinet air leakage ≤ 2%
• Coil and furnace fit flush
for most installations
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the
Lifetime Unit Replacement Limited Warranty (good for as long as you own your home) and 10-Year Parts
Limited Warranty, online registration must be completed within 60 days of installation. Online registration
is not required in California or Québec. The duration of warranty coverage in Texas and Florida differs in
some cases.
www.amana-hac.com
Two-Stage, 9-Speed ECM
Gas Furnace
80% AFUE
Nomenclature ........................................ 2
Product Specifications ........................... 3
Dimensions ............................................ 5
Airflow Data ........................................... 7
Wiring Diagram ................................... 15
Accessories .......................................... 16
08/24
