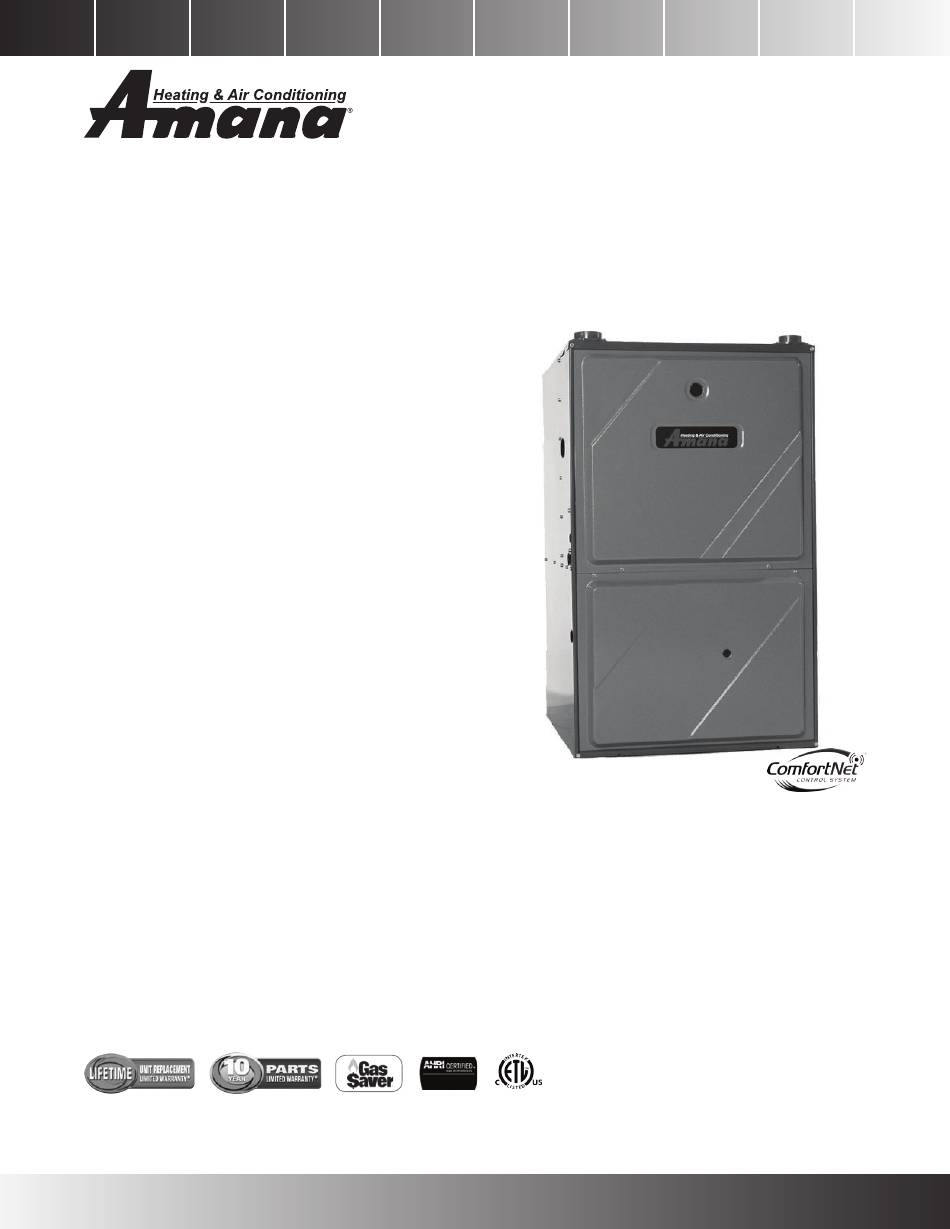

Amana AMVM96 Manual

H i :
60,000-115,000 btu/
eAting nPut
Product Features
• Heavy-duty Million-Air® stainless-steel dual-diameter,
tubular heat exchanger
• Stainless-steel secondary heat exchanger
• ComfortNet™ Communicating Systems compatible
• Self-calibrating modulating gas valve operates with Comfort-
Net communicating two-stage or single-stage thermostats
• Color-coded low-voltage terminals with provisions for
electronic air cleaners and humidifiers
• Efficient and quiet variable-speed airflow system gently
ramps up or down according to heating or cooling demand
• Durable SureStart® Silicon Nitride igniter
• Self-diagnostic control board with constant memory fault
code history output to a dual 7-segment display
• Multiple continuous fan speed options offer quiet air circulation
• Auto-Comfort and enhanced dehumidification modes available
• Variable-speed induced draft blower
• All models comply with California NOx emissions standards
Cabinet Features
• Fully insulated heavy-gauge steel cabinet with durable baked-
enamel finish
• Foil-faced insulation lines the heat exchanger section
• Designed for multi-position installation -
AMVM96: upflow, horizontal left or right
ACVM96: downflow, horizontal left or right
• Easy-to-install top venting is standard; alternate flue/vent
locations available
• Airtight solid bottom for side-return applications and easy-cut
tabs for effortless removal in bottom air-inlet applications
• Convenient left or right connection for gas and electric service
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the
Lifetime Unit Replacement Limited Warranty (good for as long as you own your home) and the 10-Year Parts
Limited Warranty, online registration must be completed within 60 days of installation. Online registration is
not required in California or Québec.
SS-AMVM96
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.
AMVM96 / ACVM96
M
ulti
V
AriAble
H
Contents
Nomenclature .........................................................................2
Product Specifications ........................................................... 3
Dimensions .............................................................................4
Airflow Specifications ............................................................. 6
Wiring Diagram .....................................................................11
Accessories ............................................................................12
Thermostats ..........................................................................12
www.amana-hac.com
-P , M
osition odulAting
s g F
Peed As urnACes
96% AFue
uP to
4/12
Supersedes 11/11
