Heating Input : 40,000 - 80,000 BTU/h
Standard Features
• Heavy-duty stainless-steel, dual-
diameter tubular heat exchanger
• Single-stage gas valve
• Durable Hot-surface igniter
• Quiet, modulating draft inducer
• Self-diagnostic control board
• Multi-speed ECM blower motor
• Eligible for installation in California's South Coast
Air Quality Management District (SCAQMD) and San
Joaquin Valley Air Pollution Control District (SJVUAPCD).
This furnace complies with the 14 ng/J NOx emission
limit in SCAQMD Rule 1111 and SJVUAPCD Rule 4905.
• AHRI Certified; ETL Listed
SS-AR9S80-U-R32
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Manufacturing Company, L.P., Houston, Texas.
Single-Stage, Multi-Speed ECM,
Multi-Position, Ultra-Low NOx
Cabinet Features
• Installation: upflow, horizontal left or right
• Convenient left or right connection
for gas and electrical service
• Heavy-gauge steel cabinet with
durable baked-enamel finish
• Foil faced insulated heat exchanger
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the Lifetime Heat Exchanger
Limited Warranty (good for as long as you own your home), 2-Year Unit Replacement Limited Warranty and 10-Year Parts Limited
Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or
The duration of warranty coverage in Texas and Florida differs in some cases.
Quebec.
www.amana-hac.com

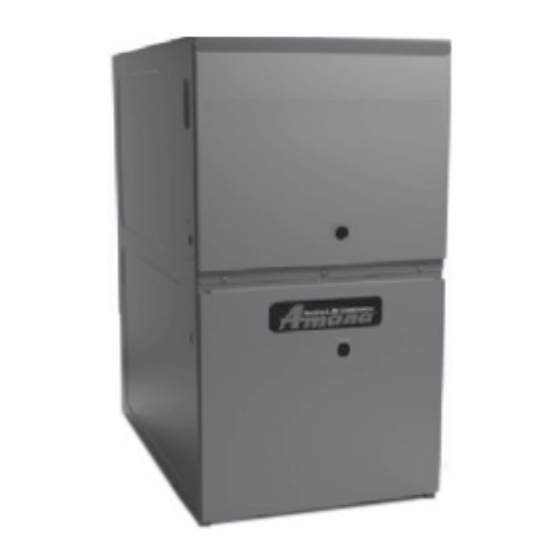

AR9S80-U
Gas Furnace
80% AFUE
Contents
Nomenclature ........................................ 2
Product Specifications ........................... 3
Dimensions ............................................ 4
Airflow Data ........................................... 5
Wiring Diagrams .................................... 8
Accessories ............................................ 9
Minimum Filter Sizes ............................ 9
08/24
Advertisement
Table of Contents
Related Manuals for Amana AR9S80-U
Summary of Contents for Amana AR9S80-U
-
Page 1: Table Of Contents
Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or The duration of warranty coverage in Texas and Florida differs in some cases. Quebec. SS-AR9S80-U-R32 www.amana-hac.com 08/24 Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Manufacturing Company, L.P., Houston, Texas. -
Page 2: Nomenclature
Nomenclature 7,8,9 Minor Revision Brand A - Initial Release B - 1st Revision A - Amana® Brand Configuration Major Revision R - Upflow/Horizontal A - Initial Release B - 1st Revision Motor 9 - Nine Speed ECM N = > 40 NG/J NOx X = <... -
Page 3: Product Specifications
AR9S80-U Product Specifications AR9S80 AR9S80 AR9S80 AR9S80 AR9S80 0403AU* 0603AU* 0604BU* 0804BU* 0805CU* Heating Capacity Input ¹ 40,000 60,000 60,000 80,000 80,000 Natural Gas Output ¹ 32,000 48,000 48,000 64,000 64,000 AFUE ² Available AC @ 0.5” ESP 1 - 3 1 - 3 1.5 - 4... -
Page 4: Dimensions
² Single Wall Vent (SW) to be used only as a connector. Refer to the latest editions of the National Fuel Gas Code NFPA 54/ ANSI Z223.1 (in the USA) and the Canada National Standard of Canada, CAN/CSA B149.1 and CAN/CSA B142.2 (in Canada). Note: AR9S80 approved for line contact in the horizontal position. www.amana-hac.com SS-AR9S80-U-R32... -
Page 5: Airflow Data
AR9S80-U COOLING & CIRCULATION AIFLOW EXTERNAL STATIC PRESSURE (INCHES OF WATER COLUMN) THERMOSTAT MODEL TAP # 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 CALL WATTS CFM WATTS WATTS WATTS AR9S80 Y1/Y2/G F05^ 0403AU* 1058 1015 1116 1071 1036 1003... - Page 6 AR9S80-U Heating Airflow Data Heating AIFLOW EXTERNAL STATIC PRESSURE, (INCHES WATER COLUMN) TEMP THERMOSTAT RANGE MODEL CALL Rise Rise Rise Rise Rise F03^ AR9S80 W/W1 25 - 55 0403AU* 1058 1015 1116 1071 1036 1003 1060 1017 AR9S80 W/W1 20 - 50...
- Page 7 Temperature Rise Range Chart SS-AR9S80-U-R32 www.amana-hac.com...
-
Page 8: Wiring Diagrams
PRESSURE SWITCH OPEN WHEN EXPECTED TO BE CLOSED OPEN HIGH LIMIT SWITCH FLAME DETECTED WHEN NO FLAME SHOULD BE PRESENT OPEN FUSE LOW FLAME SIGNAL IGNITOR FAULT OR IGNITOR RELAY FAULT REVERSED LINE POLARITY 0140F20034-A GROUNDING ERROR INTERNAL GAS VALVE ERROR EXTERNAL GAS VALVE ERROR www.amana-hac.com SS-AR9S80-U-R32... -
Page 9: Accessories
Note: Larger filters may be used; filters may also be centrally located. ¹ Use 2 - 16 x 25 filters on side returns or 20 x 25 filter on bottom return if furnace is connected to a cooling unit over 4 tons nominal capacity. SS-AR9S80-U-R32 www.amana-hac.com... - Page 10 Notes www.amana-hac.com SS-AR9S80-U-R32...
- Page 11 Notes SS-AR9S80-U-R32 www.amana-hac.com...
- Page 12 Notes Amana® is a registered trademark of Maytag Corporation or its related companies and is used under license. All rights reserved. Our continuing commitment to quality products may mean a change in specifications without notice. ©2024 • Houston, Texas • Printed in the USA.
