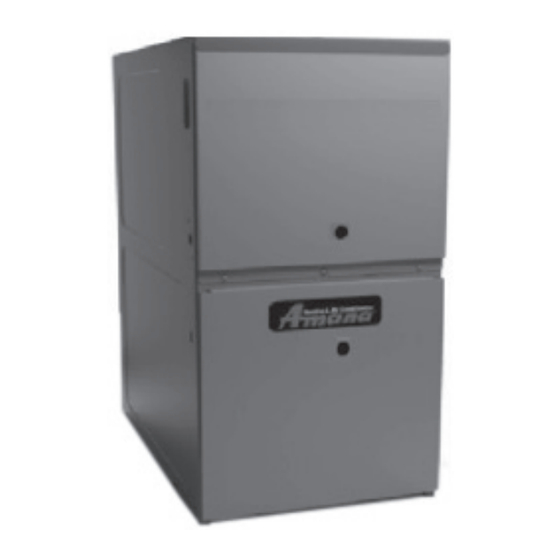

Amana AR9S80 Manual

Heating Input : 40,000-120,000 BTU/h
Standard Features
• Heavy-duty stainless-steel, dual-
diameter tubular heat exchanger
• Single-stage gas valve
• Durable Hot-surface igniter
• Quiet, single-speed draft induced
• Self-diagnostic control board
• Color-coded low-voltage terminals
• Multi-speed ECM blower motor
• California Low NOx emissions models available
• Can not be installed in California's South Coast
AirQuality Management District (SCAQMD)
and San Joaquin Valley Air Pollution Control
District (SJVAPCD).
• AHRI Certified; ETL Listed
SS-AR9S80_AD9S80-R32
Amana® is a registered trademark of Maytag Corporation or its related companies and is used under license. All rights reserved.
AR9S80 / AD9S80
Single-Stage, Multi-Speed ECM,
Cabinet Features
• Installation:
- AR9S80 -upflow,
horizontal left or right
- AD9S80- downflow,
horizontal left or right
• Convenient left or right connection
for gas and electrical service
• Heavy-gauge steel cabinet with
durable baked-enamel finish
• Foil faced insulated heat exchanger
Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the Lifetime
*
Heat Exchanger Limited Warranty (good for as long as you own your home) and 10-Year Parts Limited
Warranty, online registration must be completed within 60 days of installation. Online registration is not
required in California or Québec. The duration of warranty coverage in Texas and Florida differs in some cases.
www.amana-hac.com
Multi-Position Gas Furnace
80% AFUE
Contents
Nomenclature ........................................ 2
Product Specifications ........................... 3
Dimensions ............................................ 5
Airflow Data ........................................... 7
Wiring Diagrams .................................. 19
Accessories .......................................... 20
Minimum Filter Sizes .......................... 20
