Amana AR9S96 Manual

Heating Input: 40,000-120,000 BTU/h
Standard Features
• Heavy-duty stainless-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Single-stage gas valve
• Durable Silicon Nitride igniter
• Quiet single-speed induced draft blower
• Self-diagnostic control board with constant
memory fault code history output to a LED
• All models comply with California 40 ng/J
Low NOx emissions standard
• Can not be installed in California's South Coast
AirQuality Management District (SCAQMD)
and San Joaquin Valley Air Pollution Control
District (SJVAPCD).
• AHRI Certified; ETL Listed
SS-AR9S96_AD9S96-R32
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.
Cabinet Features
• Designed for multi-position installation -
AR9S96: upflow, horizontal left or right
AD9S96: downflow, horizontal left or right
• Certified for direct vent (2-pipe)
or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting -
AR9S96/upflow models only
• Convenient left or right connection
for gas and electrical service
• Cabinet air leakage (Q
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with
easy-cut tabs for effortless removal in
bottom air-inlet applications
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the Lifetime Heat Exchanger Limited
Warranty (good for as long as you own your home), 10-Year Unit Replacement Limited Warranty and 10-Year Parts Limited Warranty, online
registration must be completed within 60 days of installation. Online registration is not required in California or Québec. The duration of
warranty coverage in Texas and Florida differs in some cases.
www.amana-hac.com

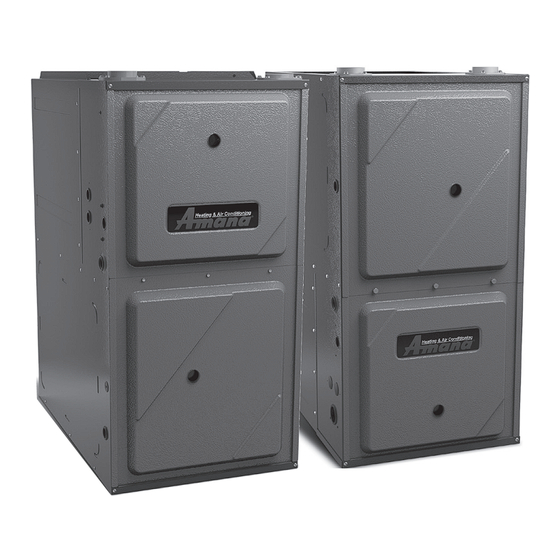

AR9S96 / AD9S96
Single-Stage, Multi-Speed
ECM Gas Furnace
Up to 96% AFUE
Contents
Nomenclature ............................................2
Product Specifications ............................... 3
Dimensions ................................................5
Airflow Specifications ................................7
Wiring Diagram ........................................13
Accessories ..............................................14
) ≤ 2%
Leak
05/24
