Installation Box
Installation Guide

1.2 Mechanical Dimensions

331.5 mm (13.05 in)
280 mm (11.02 in)
41 mm
(1.61 in)
315 mm (12.4 in)
349.5 mm (13.75 in)

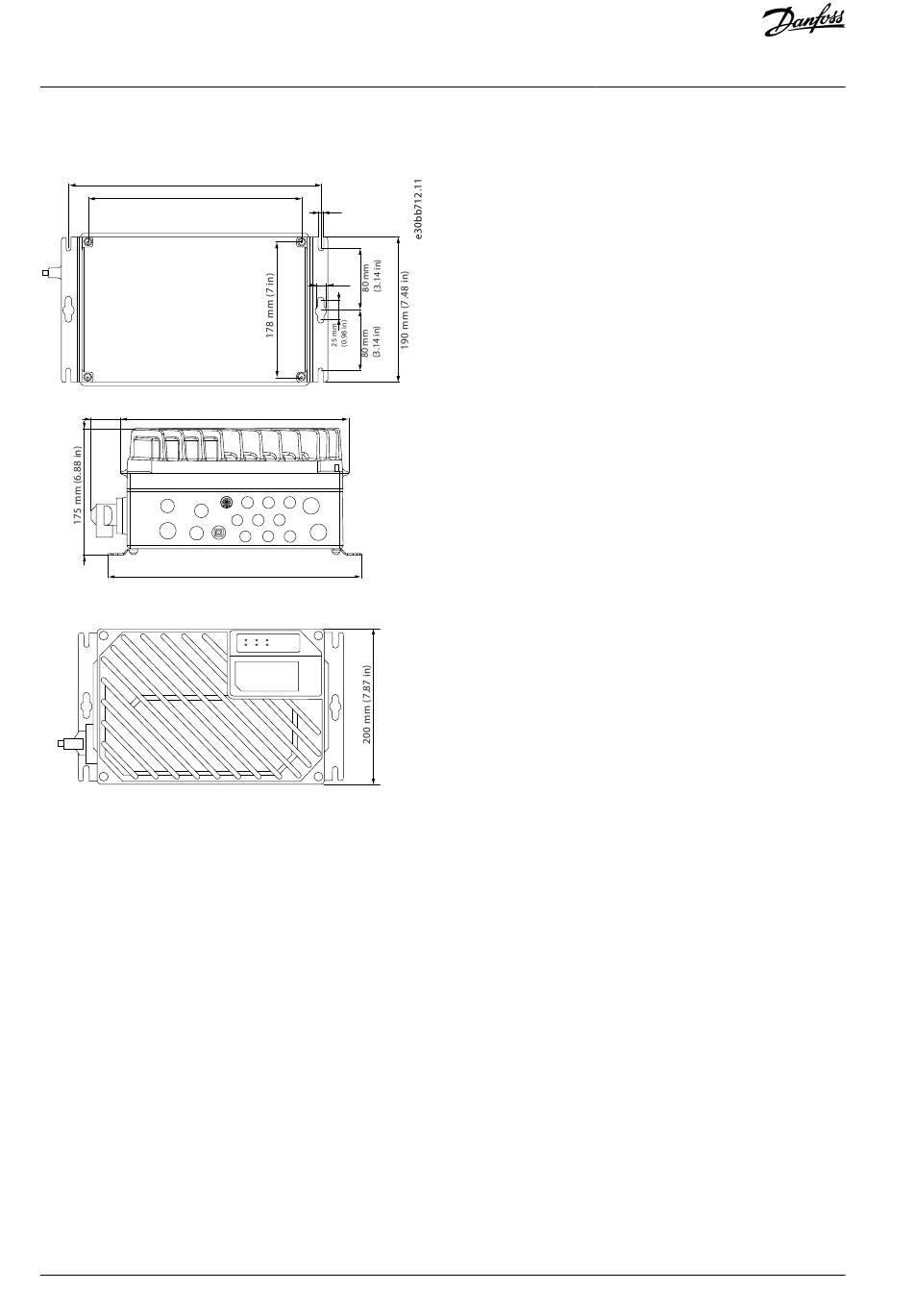

Illustration 1: Cable Entries and Hole Sizes (Small Unit)
2 | Danfoss A/S © 2021.07
6.5 mm
(0.25 in)
Ø13 mm
(0,51 in)
ON WARNING ALARM
Bus MS NS1 NS2
Introduction
AN378444290006en-000101 / 130R1214
