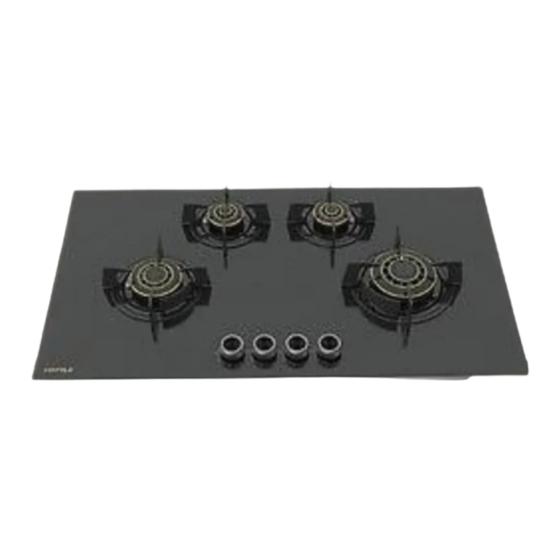

Summary of Contents for Häfele SAUBER 4.90

  • Page 1 KOMPOR GAS (GAS HOB) Panduan Instalasi dan Penggunaan www.hafele.co.id...
  • Page 2 No. Pendaftaran : IMKG.666.03.2021 PANDUAN INSTALASI DAN PENGGUNAAN UNTUK KOMPOR GAS 538.66.308 SAUBER 4.90 538.66.511 STARK 4.60 538.66.511 STARK 5.90 HANYA UNTUK PENGGUNAAN DALAM RUANGAN www.hafele.co.id...
  • Page 3 DAFTAR ISI Bagian 1 : Informasi Keselamatan ..............2 1.1 Keselamatan Umum ..................2 Bagian 2 : Pemasangan .................. 4 Bagian 3 : Pengoperasian ................5 Bagian 4 : Perawatan ..................6 Bagian 5 : Spesifikasi ..................7 www.hafele.co.id Halaman 1...
  • Page 4: Informasi Keselamatan

    INFORMASI KESELAMATAN Sebelum memasang dan menggunakan alat, harap baca instruksi ini dengan cermat. Hanya dengan begitu Anda akan dapat mengoperasikan alat Anda dengan aman dan benar. Sebaiknya simpan instruksi manual dan instruksi pemasangan untuk penggunaan di masa mendatang atau untuk pengguna alat berikutnya.
  • Page 5 11. Jangan tinggalkan alat tanpa pengawasan. 12. Jangan letakkan panci atau wajan dengan alas yang tidak stabil untuk menghindari terbalik dan menumpahkan cairan panas selama proses memasak. 13. Jangan menyimpan bahan yang mudah terbakar pada laci di bawah kompor. Selama memasak dalam waktu lama atau kemungkinan kebocoran, zat tersebut dapat menyebabkan kebakaran.
  • Page 6 PEMASANGAN Catatan: Gambar-gambar di bawah ini hanya untuk panduan. 30mm 40mm [01] [02] [02] x 4 [01] x 4 [01] [02] [03] [03] [03] x 4 [03] [03] www.hafele.co.id Halaman 4...
  • Page 7 PENGOPERASIAN Silakan periksa indikasi dan tanda operasi di permukaan kompor: Tanda Fungsi Api besar: Maks 4.7 kW Api sedang 3.0 kW Api kecil: 0.5 kW Indikasi Tungku Mengoperasikan Tungku 1. Tekan dan tahan kenop kontrol tungku yang ingin Anda nyalakan dan putar berlawanan arah jarum jam ke posisi maksimum.
  • Page 8 3. Hanya gunakan panci, panci saus, dan wajan dengan dasar tebal serta rata. 4. Selalu letakkan peralatan masak tepat di atas tungku, bukan ke satu sisi dengan perataan tengah. 5. Selalu letakkan peralatan masak di atas tatakan panci yang disediakan untuk tungku untuk menghindari kerusakan pada tungku.
  • Page 9 Keringkan setelah dicuci. Membersihkan Nampan Tetes Makanan apa pun yang jatuh di atas nampan tetes atau tumpahan apa pun harus dibersihkan dengan kain lembut. SPESIFIKASI SAUBER 4.90 STARK 4.60 STARK 5.90 Model 538.66.308 538.66.511...
  • Page 10 INSTALLATIONS AND USER GUIDE FOR GAS HOB 538.66.308 SAUBER 4.90 538.66.511 STARK 4.60 538.66.511 STARK 5.90 FOR INDOOR USE ONLY www.hafele.co.id...
  • Page 11: Table Of Contents

    TABLE OF CONTENT Chapter 1 : Safety Information ............... 2 1.1 General Safety ..................... 2 Chapter 2 : Installations .................. 4 Chapter 3 : Operations ..................5 Chapter 4 : Maintenance ................. 6 Chapter 5 : Specification ................. 7 www.hafele.co.id Page 1...
  • Page 12: Chapter 1 : Safety Information

    SAFETY INFORMATION Before installing and using the appliance, please read these instructions carefully. Only then you will be able to operate your appliance safely and correctly. We recommend keeping the instruction manual and installation instructions for future use or for subsequent users of the appliance. 1.
  • Page 13 13. Do not store any flammable substance in the drawer beneath the hob. During prolonged cooking or possible leakage, the substance may case fire accident. 14. Perishable food plastic items should be kept at a safe distance from the hob. 15.
  • Page 14: Chapter 2 : Installations

    INSTALLATIONS Note: These images below are for guidance only. 30mm 40mm [01] [02] [02] x 4 [01] x 4 [01] [02] [03] [03] [03] x 4 [03] [03] www.hafele.co.id Page 4...
  • Page 15: Chapter 3 : Operations

    OPERATIONS Please check the indication and operating marks on the surface: Marks Function High flame: Max 4.7 kW Medium flame: 3.0 kW Simmer flame: 0.5 kW Burner indication Operating the Burner 1. Press and hold the control knob of the burner that you wish to light and turn it anticlockwise to the maximum position.
  • Page 16: Chapter 4 : Maintenance

    center alignment. 5. Always place the cookware on the pan support provided for the burner to avoid damage to the burner. 6. Always use proper cooking utensils for fast and efficient cooking. 7. Handle cookware carefully when they are on the burner. Place the cookware gently on the hob.
  • Page 17: Chapter 5 : Specification

    Cleaning the Dip Tray Any food dropped on the drip tray or any spillovers should be cleaned with a mild cloth. SPECIFICATION SAUBER STARK STARK 5.90 Model 538.66.308 538.66.511 538.66.511 Burner Quantity 4 Glass 8mm Tempered Glass 8mm Tempered Glass 8mm Tempered Glass Control Panel Knobs...
  • Page 18 PT. Hafele Indotama Taman Tekno Blok A No. 3 Serpong, Tangerang 15314 Phone, +62 21 7587 8888 Email: service@hafeleindonesia.com www.hafele.co.id AUTHORIZED SERVICE CENTER 0816 862 937 www.hafele.co.id Page 1...
