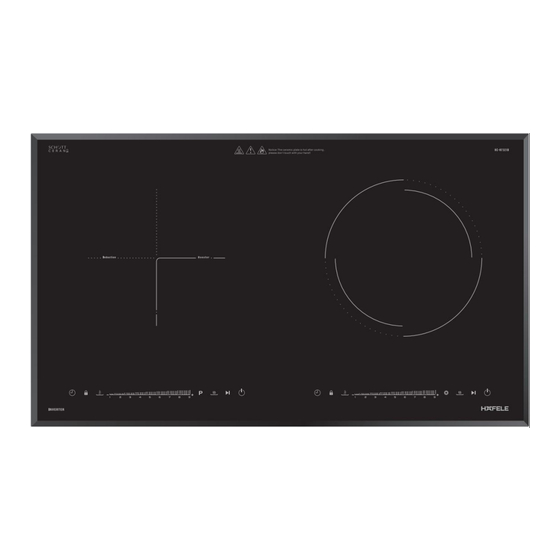

Product Name: : 2 ZONES HYBRID HOB HC-H7321B
Product Applied: 536.61.856

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HC-H7321B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Häfele HC-H7321B

  • Page 1 Product Name: : 2 ZONES HYBRID HOB HC-H7321B Product Applied: 536.61.856...
  • Page 2 INSTRUCTION MANUAL Note: Before use please read this manual carefully. Thanks for using our product. Please kindly read this user manual carefully before use it, and please well-keep the user manual for future reference. We believe the excellent performance will make your life much more easy and comfortable.
  • Page 3: Safety Percautions

    SAFETY PERCAUTIONS 1. Do not plug with wet hands. 2. Do not plug into a socket where several other appliances are plugged in. 3. Do not use it the plug cord is damaged or the power plug does not fit the socket safely. 4.
  • Page 4: Installation

    INSTALLATION Selection of Installation Equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm.
  • Page 5 CAUTIONS 1. The hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. 3. The hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
  • Page 6: Specifications

    COMPONENTS SPECIFICATIONS Product Name HYBRID HOB 2 ZONES Model No. 536.61.856/HC-H7321B AC 220 – 240V Rated Voltage Rated Frequency 50/60Hz Rated Power 4400W Production against electric shock Class I Net Weight 8.05kg FEATURES Induction cooker In an induction hotplate the heat is created in the bade of the cookware.
  • Page 7: Panel Function

    2. Unsuitable cookware is made from any kind of metal that is non-mag- netic, such as aluminium, such as aluminum, copper and stainless steel, as well as non-metallic vessels made of porcelain, glass, ceramic, plastic, etc. 3. Thin pan based are better suited to induction cooking than thick sand- wich bases.
  • Page 8 2) Operation Surface: Four-Digital LED, LED Display Indicator, Function button. Functions: Timer, Lock, Warm, Power levels adjustment, Sing/ double rings switch, Power/Temperature switch, Pause, ON/OFF HOW TO OPERATE 1. Power on Place the appropriate pot on the heating unit of the machine and plug the machine's power cord into a suitable power outlet, the buzzer alerts, all LED display glistens one time, the LED shows “----”, the cooker enters into power on condition.
  • Page 9 6. Lock Function 1) During the power on or working state, press "lock" button, lock indicator keeps constant on. During this mode, it will lock the control panel except the “On/Off” button. 2) Any operation, the LED shows “LO” for 5 seconds, then shows original info.
  • Page 10: Function Instruction

    FUNCTION INSTRUCTION Function Working process SWITCH 1. In the standby state, press the switch function button and the FUNCTION machine will enter into power in the 1st stage. You can adjust the (Power) stages whatever the higher one or the lower one easily, as well as slide or press the stage one by one.
  • Page 11 Warm In the standby or working state, press the "Warm" button to enter the keep warm function, the default temperature is 60℃ and can’t adjust for the left induction hob, for right infrared hob keep warm the default temperature is 60℃, can’t adjust and depends on the materials of pot.
  • Page 12: Cleaning And Maintenance

    CLEANING AND MAINTENANCE 1. Turn off the appliance by pressing “ON/OFF” and wait until the light turns off. Once OFF, unplug the power cord properly. 2. Wait for some time and let the appliance cool down. 3. You can use mild detergent or dish washing liquid with a soft cloth to remove dirt.
  • Page 13: Troubleshooting

    TROUBLESHOOTING Error Reasons Measure No power 1. The power cord is not Exclude after inspection plugged in properly 2. Sockets and leads are intact or not 3. The home power supply is energized or not Can’t turn on after booting Inspect whether there is Wipe dry before using any water on the surface or...
  • Page 14: Error Code

    ERROR CODE Code Reasons No pot or not suitable pot protection Over-voltage protection Low-voltage protection Surface over temperature protection IGBT over temperature protection IGBT sensor disconnecting protection IGBT short circuit protection Sensor disconnecting protection Sensor short circuit protection Sensor failure protection FB/FC Display board communicate fault NOTE...
  • Page 15 Tên sản phẩm: BẾP TỪ KẾT HỢP ĐIỆN 2 VÙNG NẤU HC-H7321B Mã sản phẩm áp dụng: 536.61.856...
  • Page 16: Hướng Dẫn Sử Dụng

    HƯỚNG DẪN SỬ DỤNG Lưu ý: Hãy đọc kỹ hướng dẫn này trước khi sử dụng. Cảm ơn bạn đã sử dụng sản phẩm của chúng tôi. Vui lòng đọc kỹ hướng dẫn sử dụng này trước khi sử dụng và vui lòng giữ kỹ hướng dẫn sử...
  • Page 17: Cảnh Báo An Toàn

    CẢNH BÁO AN TOÀN 1. Không cắm điện khi tay ướt. 2. Không cắm điện vào ổ cắm đã cắm nhiều thiết bị khác. 3. Không sử dụng khi dây cắm bị hỏng hoặc phích cắm điện không vừa với ổ cắm một cách an toàn. 4.
  • Page 18 LẮP ĐẶT Lựa chọn thiết bị lắp đặt Cắt bề mặt làm việc theo kích thước hiển thị trong bản vẽ. Để lắp đặt và sử dụng, phải để lại khoảng trống tối thiểu 50mm xung quanh lỗ cắt. Đảm bảo độ dày của bề mặt bếp ít nhất là 30mm. Vui lòng chọn vật liệu chịu nhiệt cho bề...
  • Page 19: Thận Trọng

    THẬN TRỌNG 1. Bếp phải được lắp đặt bởi nhân viên hoặc kỹ thuật viên có đủ trình độ. Chúng tôi có các chuyên gia sẵn sàng giúp đỡ bạn. Xin vui lòng không bao giờ tự ý lắp đặt. 2.
  • Page 20: Thông Số Kỹ Thuật

    THÔNG SỐ KỸ THUẬT Tên sản phẩm BẾP TỪ KẾT HỢP ĐIỆN 2 VÙNG NẤU BẾP ĐIỆN-TỪ 2 VÙNG NẤU Mã số 536.61.856/HC-H7321B AC 220 – 240V Điện áp định mức Tần số định mức 50/60Hz Công suất định mức 4400W Tiêu chuẩn chống giật điện...
  • Page 21 2. Dụng cụ nấu nướng làm từ các loại kim loại không nhiễm từ tính như nhôm, đồng, inox các các loại nồi phi kim loại làm bằng sứ, thuỷ tinh, gốm, nhựa, v.v., không phù hợp với bếp từ. 3.
  • Page 22 2) Bề mặt hoạt động: Đèn LED digital 4 số, đèn báo LED, Nút chức năng. Các chức năng: Hẹn giờ, Khóa trẻ em, Giữ Ấm, Điều chỉnh các mức công suất, Chuyển đổi đơn/đôi vòng nhiệt , Chuyển đổi Công suất/Nhiệt độ, Tạm dừng, BẬT/TẮT CÁCH VẬN HÀNH 1.
  • Page 23 6. Chức năng khóa 1) Khi đã bật nguồn hoặc bếp đang hoạt động, nhấn nút "Lock" (Khoá), đèn báo sẽ bật sáng. Khi bếp đang hoạt động, bếp sẽ bị khóa bảng điều khiển ngoại trừ nút “ON/OFF” (Bật/Tắt). 2) Bất kỳ...
  • Page 24 HƯỚNG DẪN SỬ DỤNG CÁC CHỨC NĂNG Chức năng Quá trình làm vi ệ c Chuyển đổi 1. Ở trạng thái chờ, nhấn nút chức năng chuyển đổi và máy sẽ bắt công suất đầu hoạt động ở giai đoạn 1. Bạn có thể dễ dàng điều chỉnh các giai đoạn, cao hơn hoặc thấp hơn, cũng như...
  • Page 25 Giữ ấm Khi bếp ở trạng thái chờ hoặc làm việc, nhấn nút “Warm” (Giữ ấm) để vào chức năng Giữ ấm, nhiệt độ mặc định là 60℃ và không thể điều chỉnh đối với vùng nấu từ bên trái, đối vùng nấu hồng ngoại bên phải, chức năng giữ...
  • Page 26 VỆ SINH VÀ BẢO TRÌ 1. Tắt bếp bằng cách nhấn “ON/OFF” và đợi cho đến khi đèn tắt. Sau khi bếp đã tắt, hãy rút dây nguồn (hoặc tắt cầu dao điện) đúng cách. 2. Đợi một lúc và để bếp nguội đi. 3.
  • Page 27: Khắc Phục Sự Cố

    KHẮC PHỤC SỰ CỐ SỰ CỐ NGUYÊN NHÂN CÓ TH Ể GIẢI PHÁP Không có điện (không 1. Cắm dây nguồn không Loại trừ sau kiểm tra nguồn) đúng cách 2. Ổ cắm, dây dẫn có bị hư hỏng hay không 3.
  • Page 28 MÃ LỖI MÃ SỐ CODE NGUYÊN NHÂN CÓ TH Ể Không có nồi hoặc bảo vệ nồi không phù hợp Bảo vệ điện áp cao Bảo vệ điện áp thấp Bảo vệ quá nhiệt bề mặt Bảo vệ quá nhiệt IGBT Bảo vệ...
