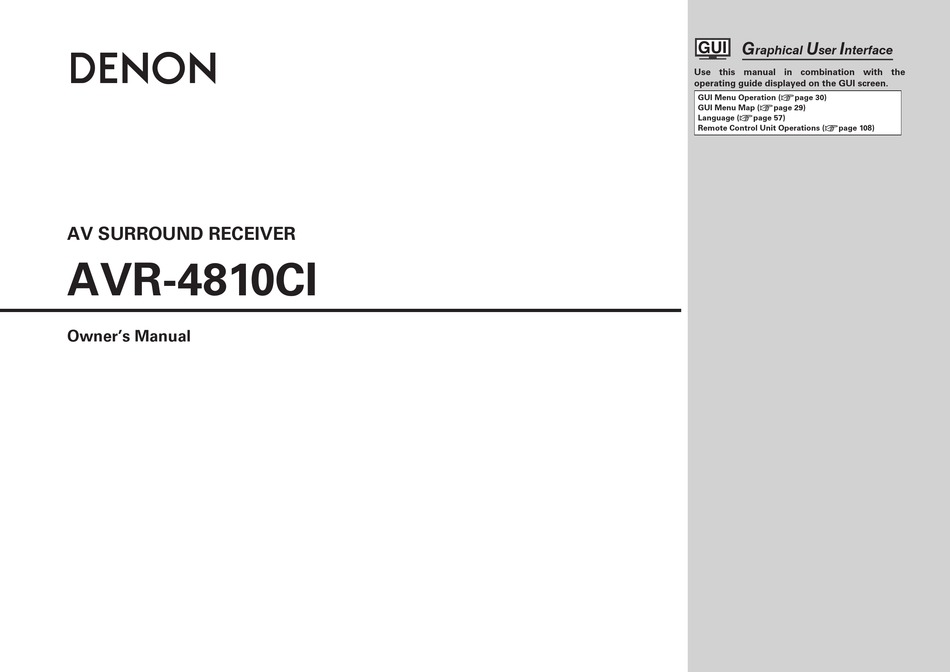

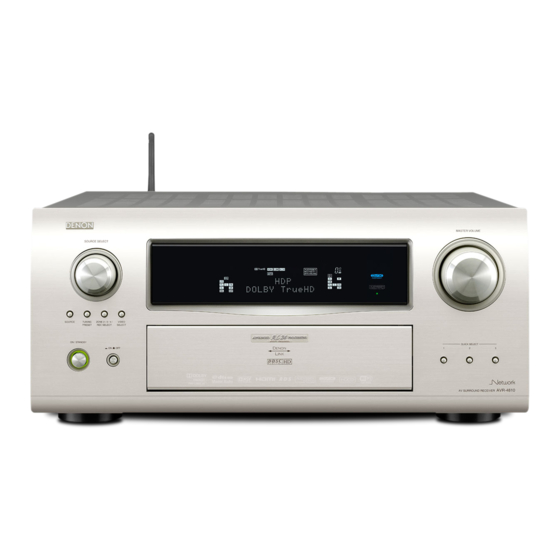

AV SURROUND RECEIVER
AVR-4810CI
Owner's Manual
G
U
I
raphical
ser
nterface
Use this manual in combination with the
operating guide displayed on the GUI screen.
GUI Menu Operation (vpage 30)
GUI Menu Map (vpage 29)
Language (vpage 57)
Remote Control Unit Operations (vpage 108)
