ENGLISH

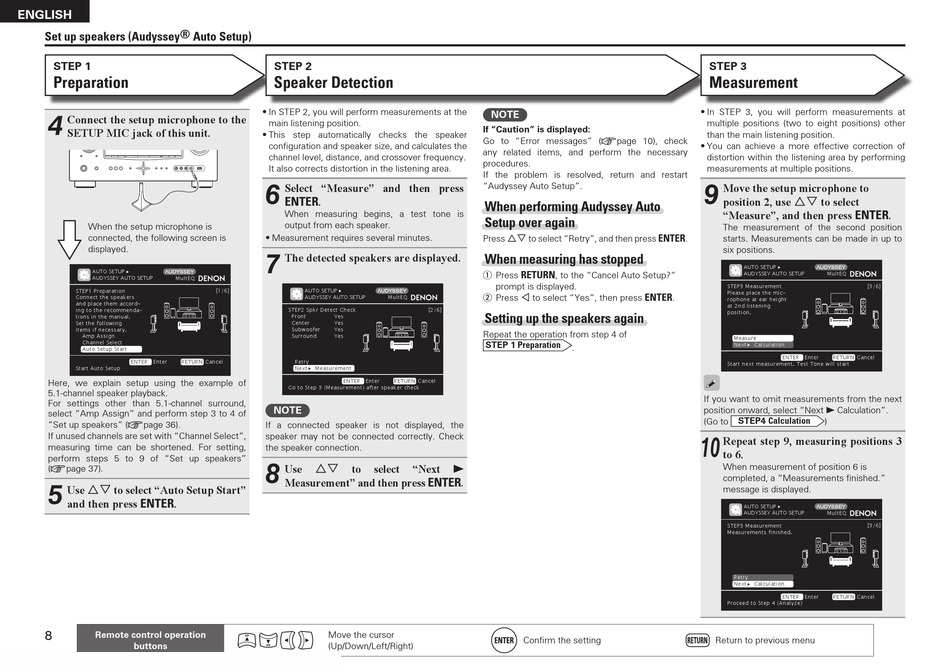

Set up speakers (Audyssey ® Auto Setup)
STEP 1
Preparation
4
Connect the setup microphone to the
SETUP MIC jack of this unit.
When the setup microphone is
connected, the following screen is
displayed.
AUTO SETUP
AUDYSSEY AUTO SETUP
MultEQ
STEP1 Preparation
Connect the speakers
and place them accord-
ing to the recommenda-
tions in the manual.
Set the following
items if necessary.
Amp Assign
Channel Select
Auto Setup Start
ENTER Enter RETURN
Start Auto Setup
Here, we explain setup using the example of
5.1-channel speaker playback.
For settings other than 5.1-channel surround,
select "Amp Assign" and perform step 3 to 4 of
"Set up speakers" (vpage 36).
If unused channels are set with "Channel Select",
measuring time can be shortened. For setting,
perform steps 5 to 9 of "Set up speakers"
(vpage 37).
5
Use to select "Auto Setup Start"
ui
and then press ENTER .
8
Remote control operation
buttons
STEP 2
Speaker Detection
• In STEP 2, you will perform measurements at the
main listening position.
• This step automatically checks the speaker
configuration and speaker size, and calculates the
channel level, distance, and crossover frequency.
It also corrects distortion in the listening area.
6
Select "Measure" and then press
ENTER
.
When measuring begins, a test tone is
output from each speaker.
• Measurement requires several minutes.
7
The detected speakers are displayed.
[1/6] AUTO SETUP
AUDYSSEY AUTO SETUP
STEP2 Spkr Detect Check
Front Yes
Center Yes
Subwoofer Yes
Surround Yes
Cancel Retry
Next Measurement
ENTER Enter
Go to Step 3 (Measurement) after speaker check
NOTE
If a connected speaker is not displayed, the
speaker may not be connected correctly. Check
the speaker connection.
8
Use to select
ui
Measurement" and then press
Move the cursor
(Up/Down/Left/Right)
NOTE
If "Caution" is displayed:
Go to "Error messages" (vpage 10), check
any related items, and perform the necessary
procedures.
If the problem is resolved, return and restart
"Audyssey Auto Setup".
When performing Audyssey Auto
Setup over again
Press ui to select "Retry", and then press
When measuring has stopped
RETURN
q Press , to the "Cancel Auto Setup?"
prompt is displayed.
o
w Press to select "Yes", then press
MultEQ
[2/6]
Setting up the speakers again
Repeat the operation from step 4 of
STEP 1 Preparation
RETURN Cancel
"Next
1
ENTER .
Confirm the setting
STEP 3
Measurement
• In STEP 3, you will perform measurements at
multiple positions (two to eight positions) other
than the main listening position.
• You can achieve a more effective correction of
distortion within the listening area by performing
measurements at multiple positions.
9
Move the setup microphone to
position 2, use
"Measure", and then press
The measurement of the second position
ENTER
.
starts. Measurements can be made in up to
six positions.
AUTO SETUP
AUDYSSEY AUTO SETUP
STEP3 Measurement
Please place the mic-
ENTER
.
rophone at ear height
at 2nd listening
position.
Measure
Next
.
Start next measurement. Test Tone will start
If you want to omit measurements from the next
position onward, select "Next 1 Calculation".
(Go to STEP4 Calculation
10
Repeat step 9, measuring positions 3
to 6.
When measurement of position 6 is
completed, a "Measurements finished."
message is displayed.
AUTO SETUP
AUDYSSEY AUTO SETUP
STEP3 Measurement
Measurements finished.
Retry
Next
Proceed to Step 4 (Analyze)
Return to previous menu
ui to select
ENTER .
MultEQ
[3/6]
Calculation
ENTER Enter RETURN Cancel
)
MultEQ
[3/6]
Calculation
ENTER Enter RETURN Cancel
