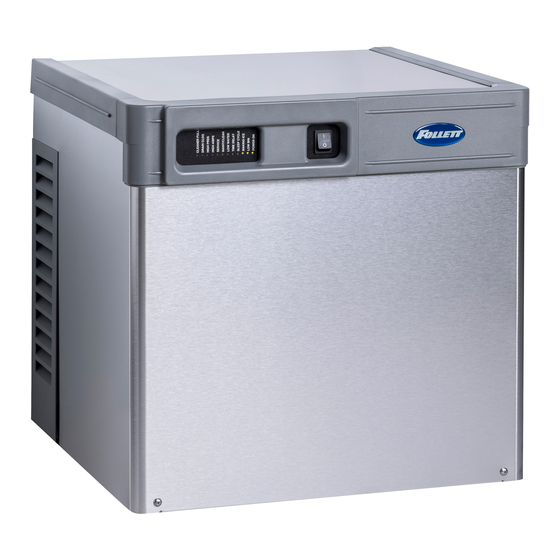

Follett Horizon Elite Chewblet HCD1010RPS Installation Instructions Manual
For cornelius pr150
Hide thumbs
Also See for Horizon Elite Chewblet HCD1010RPS:
- Manual (9 pages) ,
- User manual (21 pages) ,
- Manual (8 pages)
Table of Contents
Advertisement
Quick Links
HCD/HMD/HCF/HMF1010RPS, HCD/HMD/HCF/HMF1410RPS,
HCD/HCF1010NPS, HMD1410NPS
(See model number configurator on page 2 for details.)
After Serial Number L82638
Horizon Elite
Ice Machine Models with RIDE
™
Installation Instructions for Cornelius PR150
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Technology
™
remote condensing
01113273R04
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Follett Horizon Elite Chewblet HCD1010RPS
Summary of Contents for Follett Horizon Elite Chewblet HCD1010RPS
- Page 1 Horizon Elite Ice Machine Models with RIDE Technology ™ ™ Installation Instructions for Cornelius PR150 HCD/HMD/HCF/HMF1010RPS, HCD/HMD/HCF/HMF1410RPS, HCD/HCF1010NPS, HMD1410NPS (See model number configurator on page 2 for details.) After Serial Number L82638 remote condensing 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 •...
- Page 2 Chewblet Ice Machine Model Number Configurations ® 1810 Application Configuration Icemaker Voltage Series Condenser MC Maestro™ C 208-230/60/1 (icemaking head) 425 up to A Air-cooled, self-contained V Vision™ S RIDE™ Self-contained only. 425 lbs Chewblet ® W Water-cooled, self-contained H Harmony™ (RIDE remote D 115/60/1 (icemaking head) (193 kg)
- Page 3 Read and complete the following 8 installation steps Unpack Site preparation Dispenser preparation Docking assembly Ice transport tube External connection Internal connection Front cover Cornelius • RIDE Technology remote condensing...
- Page 4 Unpack Carefully unpack and inspect the contents of your Follett ice machine. Unpack ice machine ➋ ➌ ➊ ➎ ➍ 7/16" DO NOT TILT ICE MACHINE TO ACCESS BOLTS! COMPRESSOR DAMAGE 7/16" WILL RESULT ➐ ➏ Cornelius • RIDE Technology...
-
Page 5: Prepare The Installation Site
• 10–70 psi (69–483 kpa) • 45−90 F (7–32 C) • Follett recommends the use of an in-line water filtration system (item# 00130286) • This equipment is to be installed with adequate backflow protection to comply with applicable federal, state, and local codes Drains: ➌... -
Page 6: Dispenser Preparation
Dispenser preparation Prepare the dispenser. ➋ ➋ ➊ ➊ • Coil capillary tube and secure away from bin • ➊ Remove ice entry cover plate ➊ fill opening • Remove bin thermostat capillary tube from ➋ bracket ➊ ➊ ➋ ➋... - Page 7 ➋ ➌ ➊ ➊ ➋ • • I Mount cover plate/transport tube assembly nsert end of ice transport tube (with retaining on outside of dispenser using screws, flat holes) through hole in center of cover plate ➊ ➋ ➊ washers , lock washers and nuts assembly...
-
Page 8: Before Proceeding
3.10 ➊ ➊ ➋ • • Route thermostat capillary tube through Insulate entire length of ice transport tube ➊ ➊ mounting bracket grommets as shown and route to icemaker in accordance with directions in Horizon installation instructions • ➋ Route bin signal wire to icemaker BEFORE PROCEEDING Prior to installing the docking assembly, ensure that the drain fitting is oriented (right... - Page 9 Docking assembly Install the docking assembly. WARNING • Docking station must be secured in accordance with these instructions to ensure ice machine stability. • Ventilation openings in the docking station should be clear of obstruction Machine stand accessory Wall bracket accessory •...
- Page 10 Undercounter installation requirements Top View ➌ ➊ Access panel/ 3.25" (83 mm) min. door on counter 22.25" min. (656 mm) 24" min. (609 mm No Lip ➋ DOCKING STATION • Prior to installing the docking assembly, ensure that the drain fitting is oriented (right or left) correctly for your installation.
-
Page 11: Ice Transport Tube
Ice transport tube Install the ice transport tube. Ice transport tube installation from dispenser to ice machine ➋ Hot Water 160 F (71 C) ➎ ➊ 1/4" ➌ ➍ ➏ ➐ Ice transport tube tips • Insulate entire length of ice transport tube ➊... - Page 12 Bin signal Install the bin signal. Bin Signal Installation ❹ ➌ ➎ ➊ 16" (61 cm) ➋ • Insert 16" (61 cm) of the long bin signal cable ➊ into the hole in the back of the docking station ➋ and secure in place with strain relief provided.
-
Page 13: External Connections
External connections Connect utilities to docking assembly. Water and flush drain Chassis drain plumbing - required ➊ ➋ ➌ Minimum 8" ➏ radius • Plug must be removed from John Guest 2 ft. x 1" OD fitting. silicone tubing • Route 3/8" drain tubing through knockout in back of docking station and insert fully into John Guest fitting connection at the 3/4"... -
Page 14: Internal Connections
Internal connections Connect docking assembly to ice machine. Water solenoid, shut-off valve, Ice transport tube installation and potable water line options If water solenoid is already mounted to evaporator: • Insert potable water line into shut-off valve. If this is an undercounter installation: •... - Page 15 Power cord TDS switch HIGH CLEAN • Position plate into opening and secure • Set the TDS switch on the electrical box: with supplied screw HIGH: for extended service life LOW: for low-scale water Cornelius • RIDE Technology remote condensing...
-
Page 16: Front Cover
Front cover Install front cover to ice machine. Install condensing unit Install ice machine front cover ➋ ➊ • Slide ice machine cover over machine ➊ • Insert and tighten two screws through • Complete installation of condensing unit cover and into docking assembly ➋... - Page 17 Long tube run recommendations max. 2 ft (.6m) ➊ ➋ 1/4" ➊ • Pitch ice transport tube to allow melt water to drain towards ice machine ➋ • Secure insulated ice transport tube at least every 2 ft (0,6 m) to prevent dips or traps Cornelius •...
- Page 18 Cornelius • RIDE Technology remote condensing...
- Page 19 Cornelius • RIDE Technology remote condensing...
- Page 20 Maestro, Micro Chewblet, Vision, Harmony, Ice Manager, Horizon, Horizon Elite are trademarks of Follett Products LLC. Chewblet, RIDE, Follett are registered trademarks of Follett Products LLC. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 • +1 (610) 252-7301 01113273R04 www.follettice.com...
