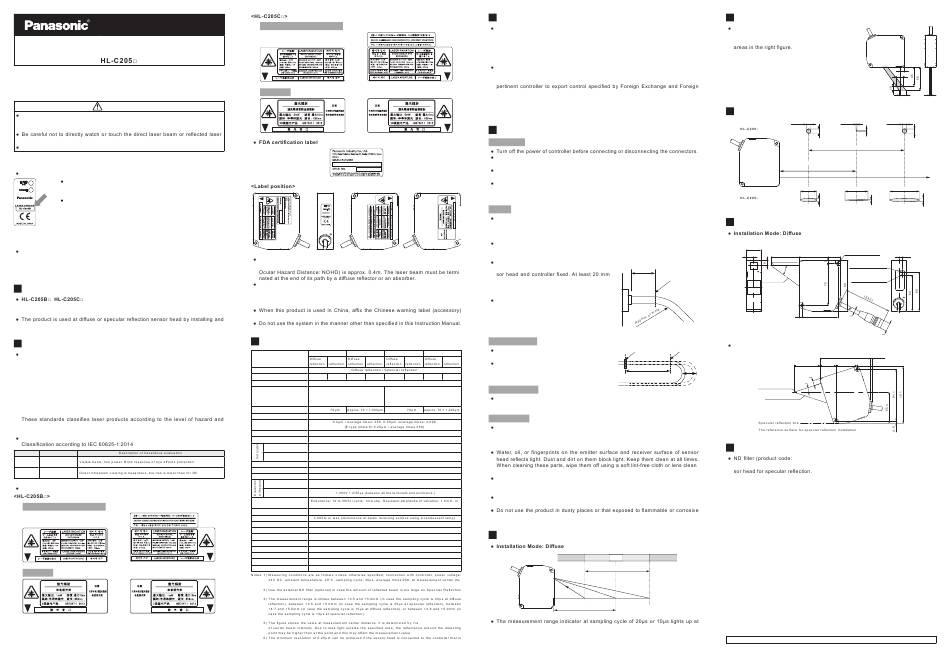

Panasonic HL-C205 Series Instruction Manual

INSTRUCTION MANUAL
Ultra High-Speed, High-Accuracy Laser Displacement Sensor
Sensor Head
MJE-HLC205 No.0097-61V
Thank you very much for purchasing Panasonic products. Read this Instruction Man-
ual carefully and thoroughly for the correct and optimum use of this product. Kindly
keep this manual in a convenient place for quick reference.
WARNING
This product is intended to detect the objects and does not have the control func-
tion to ensure safety such as accident prevention.
Do not use the product as a sensing device to protect human body.
beam.
The product was developed and manufactured for industrial use.
BEFORE USE
Before using the product, check the sensor head model and contents of packing.
Sensor head model
Check the model name of product at the top of sensor head.
Packing
Check that all of the following components are included in the
package.
• 1 sensor head unit
• 1 Instruction manual
• Laser warning labels
[JIS/IEC/KS: 1 set, GB: 1 set (E type only)]
This product complies with CE Marking when used together with a controller and
programmable display unit that are in compliance with CE Marking. Likewise, the
product complies with UKCA Marking when used together with a controller and
programmable display unit that are in compliance with UKCA Marking.
1 DESCRIPTION
, displacement sensor head achieves ultra high-speed and
high-accurate measurement using linear image sensor as light receiving element to
be used on equipment that require high-speed operation with high-accuracy.
setting.
2 CAUTIONS ON HANDLING LASER LIGHT
For the purpose of preventing any injury which may occur to the user by the use
of the laser product in advance, the following standards have been established
by the IEC Standards, JIS Standards, GB Standards, KS Standards and FDA
Regulations.
IEC : IEC 60825-1:2014
JIS : JIS C 6802:2014
GB : GB 7247.1-2012
KS : KS C IEC 60825-1:2013
FDA : PART 1040.10, 1040.11(Laser Notice No.56)
provide the safety measures for respective classes.
Laser hazardous class
(JIS C 6802:2014)
Class Model
HL-C205B(E)
Class 2
HL-C205B(E)-MK
HL-C205C(E)
Class 3R
HL-C205C(E)-MK
WARNING label
In Japanese / English / Korean
In Chinese
(E type only)
In Japanese / English / Korean
In Chinese
(E type only)
Install the product so the laser beam comes higher or lower than eye level in order
not to watch the beam directly during operation. Laser safety distance (Nominal
Please contact our company if the system breaks down. It is not equipped with a
function that stops laser radiation automatically during disassembling the sensor
head. The users therefore may be exposed to laser beam in disassembling the
sensor head.
on the label in the product.
3 SPECIFICATIONS
HL-C205B(E) HL-C205B(E)-MK HL-C205C(E) HL-C205C(E)-MK
Model No.
Specular Specular Specular
Meas. method (Note 2)
Measurement center distance 50mm 46mm 50mm 46mm 50mm 46mm 50mm
Measurement range (Note 3) ±5mm
Red semiconductor laser Class 2 (JIS/IEC/GB/KS), Red semiconductor laser Class 3R (JIS/IEC/GB/KS),
Class II (FDA) (Note 4) Class IIIa (FDA) (Note 4)
Beam source
Max output: 1mW Max output: 5mW
Emission Peak wavelength: 658nm Emission Peak wavelength: 658nm
Beam diameter (Note 5) Approx. ø Approx. ø
Beam receiving element Linear image sensor
Resolution
Linearity ±0.03%F.S.
Temperature characteristics 0.01%F.S./°C
Laser emission Green LED: Lights up during laser emission.
Meas. range Yellow LED: Near measurement center:ON, within measurement range:Blink, beyond the range:OFF
Protective structure IP67 (except connector)
Pollution degree 2
Insulation resistance 20M ohms or more by 500V DC megger (between all the terminals and enclosure.)
Commercial Frequency AC 500V for 1min. (between all the terminals and enclosure.)
Impulse ±
Vibration resistance
X, Y, and Z directions for 2 hours
Shock resistance 196m/ s 2 in X, Y, and Z directions for 3 times
Ambient illuminance (Note 7)
Ambient temperature 0 to +45°C (No dew condensation or icing allowed), At storage: -20 to +70°C
Ambient humidity 35 to 85%RH At storage:35 to 85%RH
Ambient Height 2,000m or less
Material Main unit case / cover: Die-cast aluminum, Front cover: Glass
Cable length 0.5m
Cable extension Extendible to 30m long maximum using the optional extension cable.
Weight Approx. 300g including cable weight
Applicable regulations Compliant with EU Law: EMC Directive / British Legislation: EMC Regulations
tance, object substance: white ceramic, and digital measurement value.
installation.
4) This is based on the FDA Standard, according to Laser Notice No. 56 of the FDA Standard.
2
(approximately 13.5%)
not subject to "Foreign Exchange and Foreign Trade Law".
7) The variation in ambient illuminance is ±0.03%F.S. or less.
4 EXPORT REGULATIONS BY JAPANESE GOVERNMENT
HL-C205B(-MK) and HL-C205C(-MK) are subject to export control regulation by
the Foreign Exchange and Foreign Trade Law. Export admission by Japanese
government is required before the product is to be exported or brought out of the
country.
These products are also subject to Article 1.B.3.b.1 of Nuclear Suppliers Group in
international export control regime and 2.B.6.b.1 of Wassenaar Arrangement.
Please follow the export control regulations required.
HL-C205BE(-MK) and HL-C205CE(-MK) (E type) are not subject to export con-
trol regulations under the condition that they are used combined with the non-
Trade Law.
When they are combined with the pertinent controller to export control, they are
subject to the Law. In this case export admission by Japanese government is re-
quired before the product is to be exported or brought out of the country.
5 CAUTIONS
Connection
When connecting or disconnecting the connectors, be sure to hold the connector
area not to apply extra force to the cable.
Be careful not to touch terminals or to let foreign matter get in the connector after
disconnecting connectors.
Be careful not to apply force to around the connector of standard cable and ex-
tension cable. Do not bend the cables near connectors. Failure to do so causes
causes disconnection of the cable.
Wiring
Do not run the sensor cable along (bundled in parallel) with other wirings. Keep it
at least 100mm away from other wires. Run the cable so it is separate from high
voltage and power circuit lines. If it is necessary to run the cable in parallel with
them, shield it by running through a grounded electrical conduit.
Install the product as far away as possible from noise source such as high-voltage
lines, high-voltage device, power lines, power device, machines which generate a
large starting and stopping surge, welding machines and inverter motor.
Do not pull the cable using a force more than
29.4N when routing the cable with the sen-
-
is required from the cable connection to the
bend. The bending radius must be 30 mm or
more.
When the sensor head is moved around while
in use, the cable in the moving part may be
damaged. Therefore, use an extension cable
for the moving part and, when the extension
cable is damaged, immediately replace it.
Otherwise, it may result in failure.
Cable Extension
Use only one extension cable for connection
between one sensor head and a controller.
Specular
When the sensor head part is moved around
while in use, fix the extension cable at a
position 100 mm away from the mobile end.
46mm
Warming up time
Allow at least 30 minutes of warming up after turning on the power to ensure the
performance of the product.
Environment
The life of the semiconductor laser depends on the ambient temperature during
use. When using the product near a heat source, take measures to lower the am-
bient temperature of the sensor head as possible. Mount the sensor on a device
having good heat radiation because the sensor itself emits heat.
ing paper.
Install the sensor head so ambient light such as sunlight or light with the same
wavelength as laser beam should not enter the light receiver. If high accuracy is
required, install a light shielding plate or the like on the sensor head.
The controller and connectors are not structurally dustproof, waterproof, or corro-
sion-resistant. Do not use the product underwater or in the rain.
gases, droplet, direct sunlight, severe vibration or impact.
6 MEASUREMENT RANGE / INDICATOR
Meas. range indicator OFF Blink ON
Measurement range
-
Measurement center
distance
the center of limited measurement range.
7 MUTUAL INTERFERENCE AREA (Unit: mm)
When installing 2 or more sensor heads side by
side, mutual interference occurs if the laser spots
from other sensor heads fall within the shaded
Install sensor heads so the laser spots from oth-
er sensor heads fall outside the shaded areas.
8 BEAM DIAMETER (Unit: mm)
0.13
(E)
Minimal spot type
Measurement center distance
0.7
(E)-MK
Line spot type
9 DIMENSIONS (Unit: mm)
26
(Measurement center distance)
13 50
Light emission axis
20mm or more
36°
Light
Bending end
reception axis
5
Installation Mode: Specular
Fixing position Mobile end
(Measurement center distance)
46
100mm or more
9
18°
Light emission axis
Light reception axis
10 OPTION
HL-C2F01) is optionally available to adjust the excessive
- received light intensity to an optimum level. This is useful when mounting the sen-
Blink OFF
Panasonic Industry Co., Ltd.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
https://industry.panasonic.com/
Please visit our website for inquiries and about our sales network.
Panasonic Industry Co., Ltd. 2024
April, 2024
9
10 5
3 13 2 2
0.07 0.13
0.11 0.07 0.11
Measurement range
1.0 1.3
0.11 0.07 0.11
2-M5 mounting hole
Depth:10
(opposite surface)
74 6.2
Laser emission indicator
(green)
Measurement range
indicator (yellow)
64
6.6
(14.7)
89 (3.8)
28.2 37.7
PRINTED IN JAPAN
