Assa Abloy SARGENT 1431 Installation Instructions

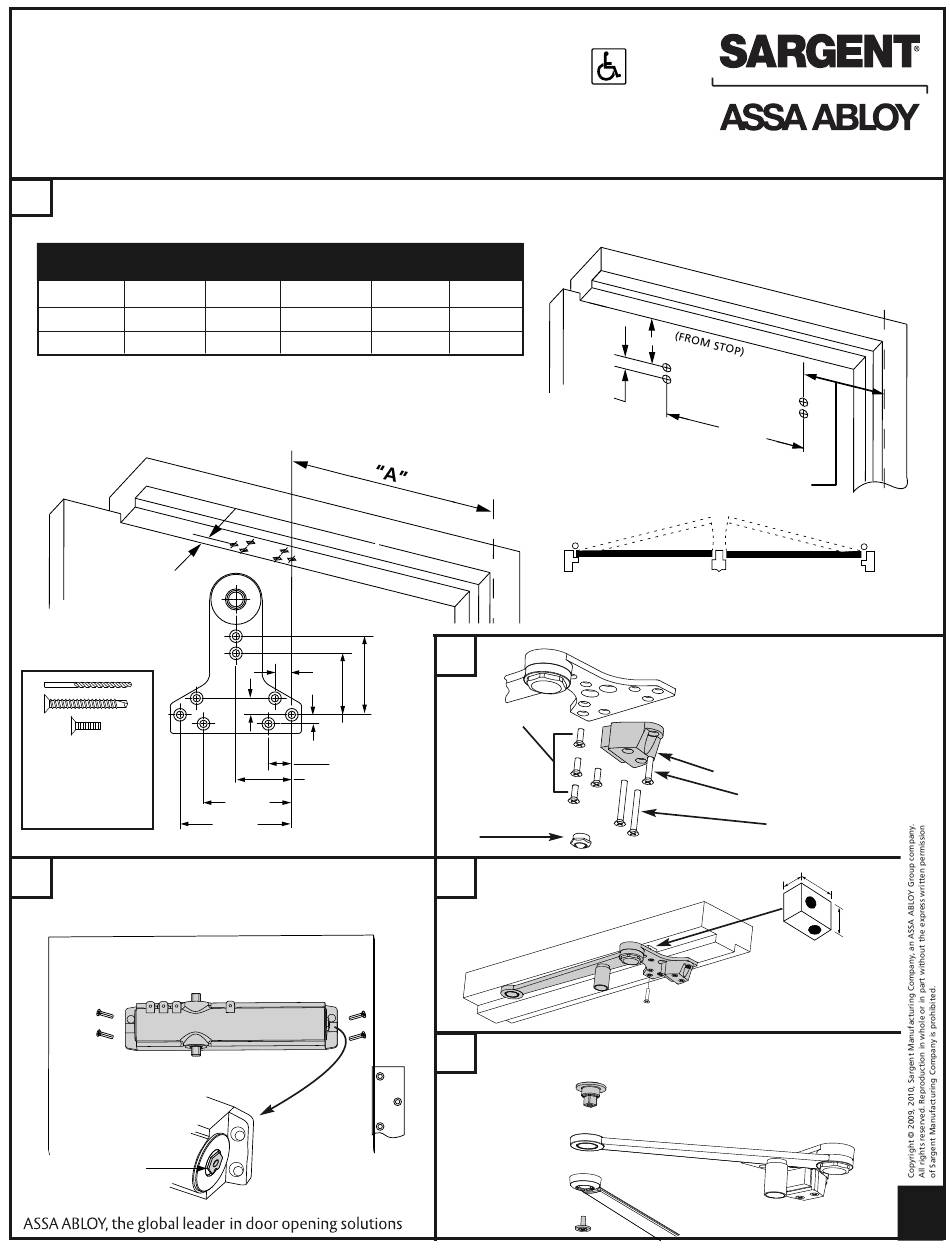

INSTALLATION INSTRUCTIONS
1431 Door Closers with CPS/CPSH Arms
1431 ADJUSTABLE FROM SIZE 1 THRU 6
FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com
1
DETERMINE MAXIMUM DEGREE OF OPENING OR HOLD OPEN (CPSH) REQUIRED. DRILL AND TAP DOOR AND FRAME FOR
#12-24 MACHINE SCREWS. WHEN USING SELF TAPPING SCREWS PROVIDED, PREDRILL WITH A 3/32" DRILL.
DEGREE OF DOOR OPENING AT "HOLD OPEN" I
85°
DIM. "A" 9-11/16"
DIM. "B" 4-3/8"
•
DO NOT USE SWING CLEAR HINGES FOR DOOR OPENINGS GREATER
THAN 95°. USE ALTERNATE TYPE HINGES.
I DIMENSIONS FOR GIVEN DEGREE BASED ON 4-1/2" HINGE. WHEN 3-1/2"
TO 6" HINGES ARE USED, HOLD OPEN ANGLE WILL CHANGE BY LESS
THAN 1/2°. DEAD STOP OCCURS 3° BEYOND HOLD OPEN.
13/16"
+
or
IMPORTANT NOTICE
PRE-DRILL 3/32"
HOLES FOR SELF-
TAPPING SCREWS OR
TAP #12-24 FOR
MACHINE SCREWS
2
ATTACH DOOR CLOSER TO DOOR WITH SPRING
POWER NUT TOWARDS HINGE.
SPRING POWER NUT
90° 95° 100°
9-1/16" 8-5/16" 7-11/16"
3-3/4" 3" 2-3/8"
5/8"
2-11/16"
9/16"
1-7/8"
5/16"
13/16"
1-15/16"
3-1/16"
3-7/8"
• •
105°
7-3/16"
1-7/8"
CENTERLINE
OF
HINGE
PULL SIDE
PUSH SIDE
3A
4 #12-24 x 5/8" MS
or #12 x 1-3/4"
RH CPSH
SHOWN
INSERT "CPSH"
ONLY
3B
MOUNT FOOT BRACKET TO
DOOR STOP.
CPSH SHOWN
CPS SIMILAR
3C
ALTERNATE: PREASSEMBLE ARMS PRIOR TO
ATTACHING TO STOP.
3"
1"
11-1/8"
"B"
PUSH SIDE
LEFT HAND DOOR RIGHT HAND DOOR
CLOSERS ARE NON-HANDED
ARM MUST BE THE SAME HAND
AS THE DOOR. ASSEMBLE THE
HOLDER WITH BUMPER &
INSERT (CPSH ONLY) TO FOOT
BRACKET AS LOCATION OF
THESE PARTS DETERMINES THE
"HAND".
BUMPER & HOLDER
12-24 x 1" MS or
#12 x 1-3/4"
12-24 x 1-3/4" MS
or #12 x 2-1/2"
1/2"
USE SPACER
WHEN REQUIRED
IMPORTANT: USE A
MINIMUM OF 7 SCREWS.
CENTERLINE
OF
HINGE
PULL SIDE
7/8"
5/8"
1
