Kohler OCCASION EX27025T-4E2 Installation Instructions

SERVICE PARTS

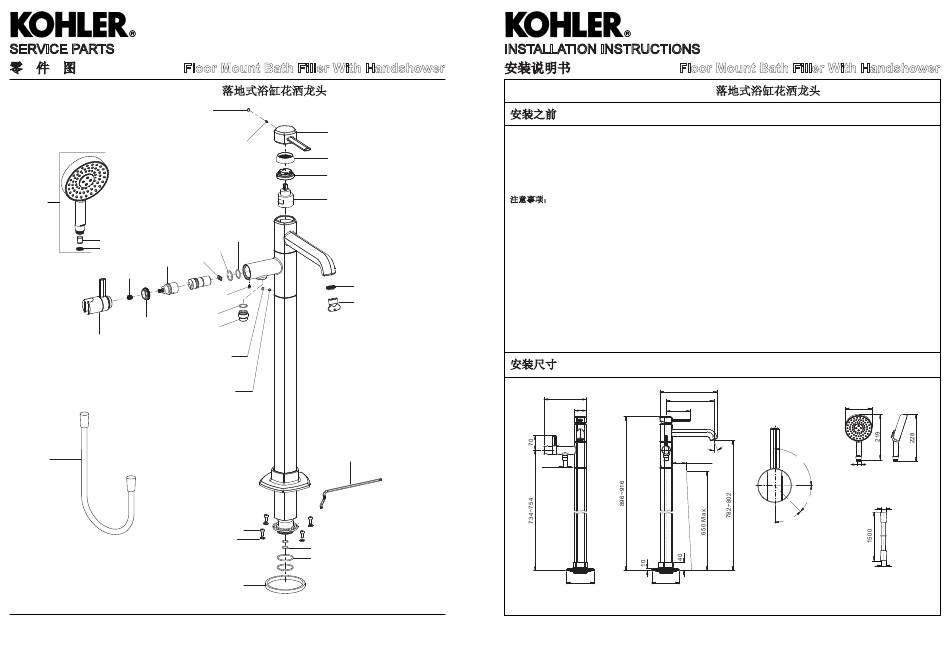

Floor Mount Bath Filler With Handshower
零 件 图
EX27025T-4E2
1398346(For CP & BN)
1415586(For BL & CBL)
1415585(For AF, 2MB, RGD & BMB)
1405289**
1352742
77420
1434050
78125
1423002
1427176**
3008523(For CP, BN & CBL)
1426836(For AF, RGD & 2MB)
1245237(For BL, BMB)
1248781**
**订购时请说明颜色编号
**Color code must be specified when ordering
1479189-T2-A
OCCASION
落地式浴缸花洒龙头
1423000**
833438
1427179**
3006930
1229992
1442071
1442069
1310066
1258088
1037608
3006148
870721
864922**
3013706
1381532
1082901
65218
77955
1010167
1109720
凯诗
INSTALLATION INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒公
司保留任何时候不经通知即可改变产品特性、包装或产
品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，请把
这些资料交给用户阅读。
注意事项：
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
2. 检查供水管有无损坏。如需要，进行替换。
3. 遵守当地管路安装条例。
4. 预埋前测试安装连接部位是否有渗漏，根据需要修理
之。
5.花洒最高工作压力为：0.5MPa(5bar)。水压超过
0.5MPa(5bar)时须安装减压阀。花洒最高工作温度及
环境温度：60°C。请特别注意花洒同花洒连接的臂管
须远离浴霸，否则可能损坏花洒及其密封件，甚至对使
用者造成伤害。
6. 安装本产品时请与97905T配套使用。
安装尺寸
206
G1/2˝
*请根据图示尺寸选择合适的浴缸
* Please purchase the appropriate bathtub according to the dimension.
4
1479189-T2-A
Floor Mount Bath Filler With Handshower
EX27025T-4E2
落地式浴缸花洒龙头
BEFORE YOU BEGIN
All information is based on the latest product information
available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics,
packaging, or availability at any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. Inspect the supply tubing for damage. Replace as
necessary.
3. Observe local plumbing codes.
4. Check for leaks before covering the pipes, repairs as
needed.
5. The highest working pressure for handshower is
0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure
reducer is needed. The highest water and environment
temperature is 60ºC. Please keep handshower away from
heater, or it may become damaged and cause injury to
the user.
6. Please purchase the matched mounting base 97905T
when install the faucet.
ROUGH-IN DIMENSIONS
278
*231
59
118.5
Handle for handshower
20º
*70 Min.
Bathtub
134 134
凯诗
OCCASION
130
90º Cold
G1/2˝
45º Cold+Hot
G1/2˝
45º
Hot
G1/2˝
1
