INSTALLATION INSTRUCTIONS
安装说明书
EX27028T-9E2
EX27029T-9E2
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，请
把这些资料交给用户阅读。
注意事项：
1.最小供水压力：0.05MPa(0.5bar)。
2.推荐冷热供水的静态压力：0.3MPa(3bar)。
3.如果供水压力大于0.5MPa(5bar)，安装减压阀。
4.热供水温度最低：50ºC；最高：80ºC。
5.推荐的热供水温度：65ºC。
6.温度的设定基本范围为：20ºC到49ºC。
7.安全限位温度：37ºC。
8.最高混合温度：49ºC。
9. 花洒最高工作温度及环境温度：60°C。请特别注
意花洒同花洒连接的臂管须远离浴霸，否则可能损坏
花洒及其密封件，甚至对使用者造成伤害。
安装尺寸
G1/2˝
91~96
EX27028T-9E2
1459563-2-A
OCCASION
Wall Mount Thermostatic B/S Faucet
挂墙式恒温花洒龙头
挂墙式恒温浴缸花洒龙头
BEFORE YOU BEGIN
All information is based on the latest product information
available at the time of publication. Kohler Co. reserves the
right to make changes in product characteristics, packaging,
or availability at any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Minimum supply pressures: 0.05MPa(0.5bar).
2. Recommended supply static pressures: 0.3MPa(3bar) on
hot and cold water.
3. Supply pressure greater than 0.5MPa(5bar): install a
pressure reducer.
4. Hot water temperatures, minimum: 50ºC, maximum:80ºC.
5. Recommended hot water temperature: 65ºC
(energy-saving).
6. Setting range, approximately: 20ºC to 49ºC.
7. Safety stop at: 37ºC.
8. Maximum mixed water temperature: 49ºC.
9. The highest environment temperature for handshower &
showerhead is 60ºC. Please keep handshower, showerhead
and shower arm away from heater, or it may become
damaged and cause injury to the user.

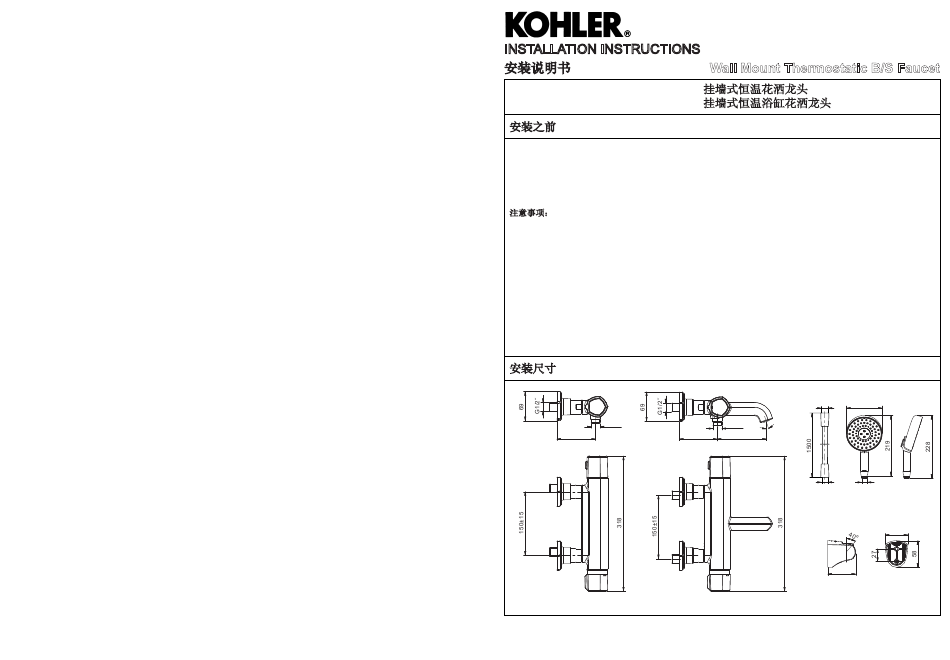

ROUGH-IN DIMENSIONS
G1/2˝
130
18º
G1/2˝
84~89
116
G1/2˝
G1/2˝
60
EX27029T-9E2
凯诗
49
1
Advertisement
Related Manuals for Kohler OCASION EX27028T-9E2
Summary of Contents for Kohler OCASION EX27028T-9E2
- Page 1 BEFORE YOU BEGIN 安装之前 All information is based on the latest product information 所有的资料是按最新出版的产品资料编写而成。科勒 available at the time of publication. Kohler Co. reserves the 公司保留任何时候不经通知即可改变产品特性、包装 right to make changes in product characteristics, packaging, 或产品可供类型的权利。 or availability at any time without notice.
- Page 2 凯诗 INSTALLATION 安装步骤 How to Install the Faucet OCCASION 如何安装水龙头 SERVICE PARTS To perform installation, installer must Wall Mount Thermostatic B/S Faucet 为使安装顺利，G1/2″内螺纹管道配件 零 件 图 provide G1/2″ female supply fittings(1), (1)应已装好，预留150mm的间距，保 冷 spaced 150mm apart and horizontally. 持水平。管道配件要垂直并不能突出 EX27029T-9E2 挂墙式恒温浴缸花洒龙头...
- Page 3 凯诗 INSTALLATION CHECKOUT 安装结果检查 OCCASION Ensure all connections are tight. 检查并确保所有衔接螺母都已拧紧。 SERVICE PARTS Wall Mount Thermostatic Shower Only Faucet Ensure the handles are in the off position. 零 件 图 确保把手在关闭位置。 EX27028T-9E2 Turn on the main water supply, and 挂墙式恒温花洒龙头 打开主供水源，检查是否有漏水。如...
- Page 4 螺母 拆卸前确保温控把手上的圆形激光标 恒温阀 laser mark on the temperature handle is 与本体上的数字37对齐。拆卸温控把 有磨损性的清洁用具或清洁剂也不可使用于科勒牌 Do not use abrasive cleaners or solvents on Kohler aligned with the number 37 on the faucet 手组件(Fig.1)。 的水龙头及其配件上。 faucets and fittings. body. Remove the handle kit(Fig.1). Unscrew the nut and stopper. Remove 将螺母和塑料套卸下。小心地卸下温...
