Kohler OCCASION EX27110T-4 Installation Instructions

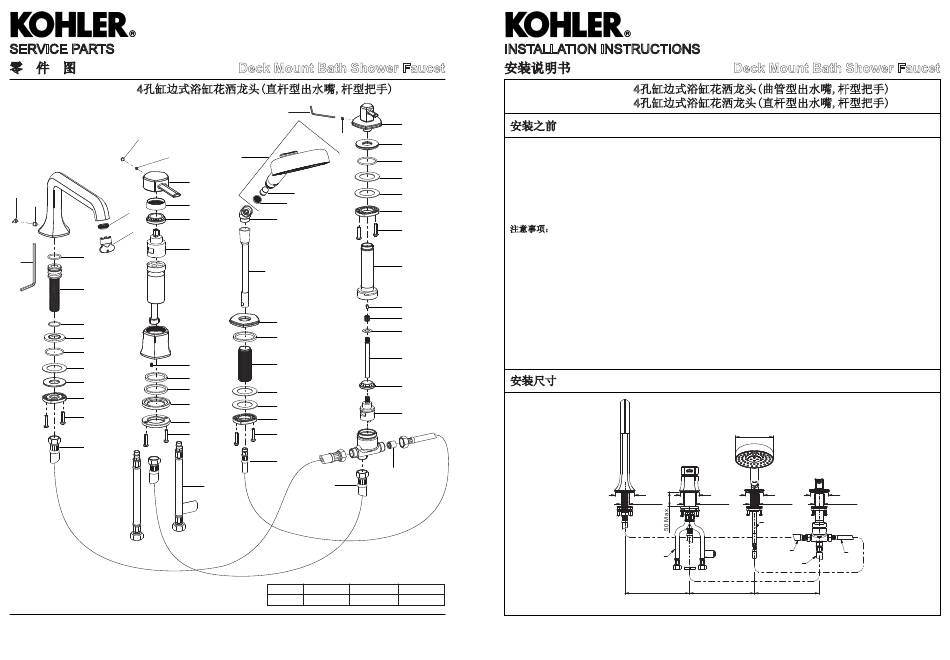

SERVICE PARTS
零 件 图
EX27111T-4
4孔缸边式浴缸花洒龙头(直杆型出水嘴,杆型把手)
1398346(For CP & BN)
1415586(For BL & CBL)
1415585(For AF, 2MB, RGD & BMB)
1249005
Plug
46112
1258088
3006148
871472
66637
1402154
34264
1124651
1098124
22352
3028156
3027230
831587
833226
**订购时请说明颜色编号
**Color code must be specified when ordering
1426825-2-A
OCCASION
Deck Mount Bath Shower Faucet
1046290
832751
1405289**
1402158**
1091462
77420
1420900**
1343328 897637**
1229992
1368618-ACP(For AF)
1368618-BCP(For BN)
1368618-LCP(For BL & BMB)
1368618-RCP(For RGD)
1368618-C2M(For 2MB)
898324**(For CP & CBL)
1402161**
1043069
1263359 1403375
870205
1043069
22352
3025496
1110332
3029882
3025495
831587 831587
834428
833226
3006376
Plug 1402155 1423195
Finish CP, BN, CBL AF, RGD, 2MB
凯诗
INSTALLATION INSTRUCTIONS
安装说明书
EX27110T-4
EX27111T-4
1402163**
安装之前
1332555
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
1010167
或产品可供类型的权利。
22352
1110332
说明书包括重要的安装、保养及清洁方面的内容，请
把这些资料交给用户阅读。
3029882
注意事项：
831587
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
2. 尽可能在安装浴缸之前安装水龙头。
1332556 3. 检查供水管有无损坏漏水。如需要，进行替换维
修。
4. 遵守当地管路安装条例。
5. 切断供水管路。
834683 6. 花洒最高工作压力：0.5MPa(5bar)。水压超过
78125 0.5MPa(5bar)时必须安装减压阀。花洒最高工作温
1007995 度及环境温度：60°C。请特别注意花洒同花洒连接
的臂管须远离浴霸，否则可能损坏花洒及其密封件，
甚至对使用者造成伤害。
1332558
安装尺寸
1137478-RP
1173737
831752
1423196
BL, BMB
8
1426825-2-A
Deck Mount Bath Shower Faucet
4孔缸边式浴缸花洒龙头(曲管型出水嘴,杆型把手)
4孔缸边式浴缸花洒龙头(直杆型出水嘴,杆型把手)
BEFORE YOU BEGIN
All information is based on the latest product information
available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics,
packaging, or availability at any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. If possible, install this faucet before installing bathtub.
3. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
4. Observe local plumbing codes.
5. Shut off the water supplies to the fitting.
6. The highest working pressure for handshower is
0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure
reducer is needed. The highest water and environment
temperature is 60°C. Please keep handshower,
showerhead and shower arm away from heater, or it
may become damaged and cause injury to the user.
ROUGH-IN DIMENSIONS
130
65 63 61
Ø22~Ø35 Ø39~Ø42 Ø33~Ø40
2000
1000
515
1000
150 Min. 200 Min. 200 Min.
EX27110T-4
凯诗
OCCASION
61
Ø30~Ø35
600
1
