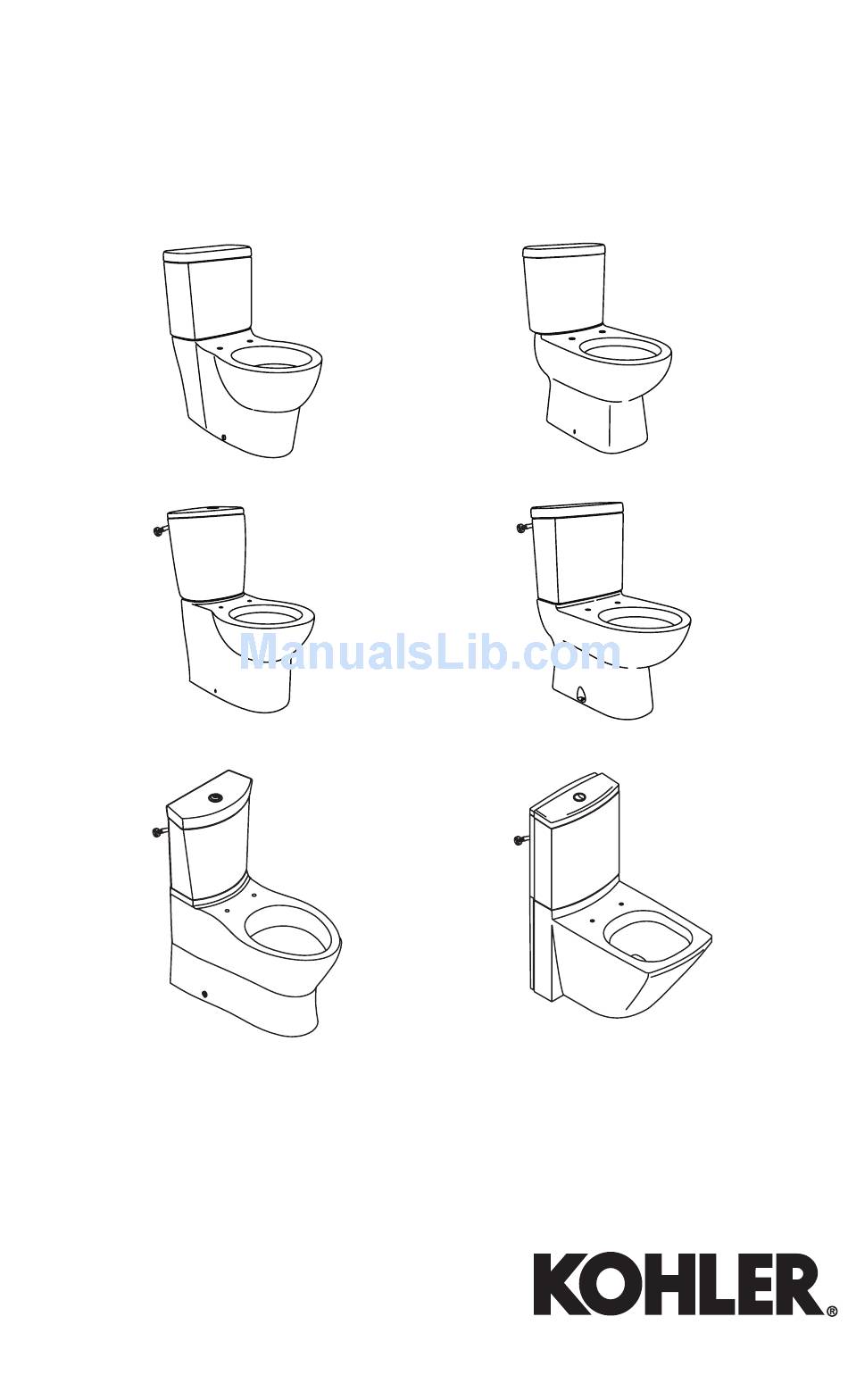

Installation & User Guide
Dual-Flush Toilet
OVE
PANACHE
OPIAZ
PARLIAMENT
PERSUADE
ESCALE
1102602-A2-D
Advertisement
Table of Contents
Related Manuals for Kohler OVE
Summary of Contents for Kohler OVE
- Page 1 Installation & User Guide Dual-Flush Toilet PANACHE OPIAZ PARLIAMENT PERSUADE ESCALE 1102602-A2-D...
- Page 2 Tools and Materials Thank You For Choosing Kohler Company We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don’t hesitate to contact us. Our phone numbers are listed on the back cover. Thanks again for choosing Kohler Company.
- Page 3 Offset Pan Collar Connector X = Set out as per spec sheet 3 Position the template on the floor. Mark the positions of the floor fixing kit holes. Waste Pipe Waste Pipe Connector to Wall Connector to Wall 1102602-A2-D Kohler Co.
- Page 4 Drill 5/16” (8 mm) mounting holes at the marked locations. Insert anchors into the holes. Place the toilet and align with anchoring holes position. Tighten screws and attach the bolt caps. Fixing Holes Screw Cap Screw Anchor Drill Sleeve Kohler Co. 1102602-A2-D...
- Page 5 Installation 6 In cistern. PANACHE Tank Hose Stop Valve OPIAZ PARLIAMENT Optional Bottom Water Inlet Kit PERSUADE 148794A-NA for use on ESCALE OPIAZ PARLIAMENT PERSUADE ESCALE 1102602-A2-D Kohler Co.
- Page 6 Plan Washer Fiber Washer Sealing Washer Screw 8 Connect the supply shut-off valve to the supply hose and connect supply hose to toilet supply shank. Water Supply Hose Water Supply Hose (Not supplied) Bottom Inlet Type Rear Inlet Type Kohler Co. 1102602-A2-D...
- Page 7 Mark this lengh and cut the push rod to length. Cut the push rod to length. 3 4 Reassemble the push rods. Fit the lid and test the buttons. Adjust the rods as required. 1102602-A2-D Kohler Co.
- Page 8 1 Assembly flush valve by pressing it Release flush valve by squeezing the tabs on both side of the canister into the flush valve so it snaps into place. and pulling straight up out of the flush valve. Kohler Co. 1102602-A2-D...
- Page 9 1102602-A2-D Kohler Co.
- Page 10 Kohler Co. 1102602-A2-D...
- Page 11 1102602-A2-D Kohler Co.
- Page 12 CONTACT AND WARRANTY INFORMATION For warranty information, please visit our website Australia www.au.kohler.com. New Zealand www.kohler.co.nz CALL US FOR HELP NEW ZEALAND AUSTRALIA KOHLER NZ LTD KOHLER CO. Free Ph: 0800 564 537 (0800 KOHLER) Free Ph: 1300 658 277 Free Fax: 0800 664 488 Free Fax: 02 9618 1189 www.kohler.co.nz www.au.kohler.com 1102602-A2-D...
