www.ti.com
EVM User's Guide: TPS61287EVM-042

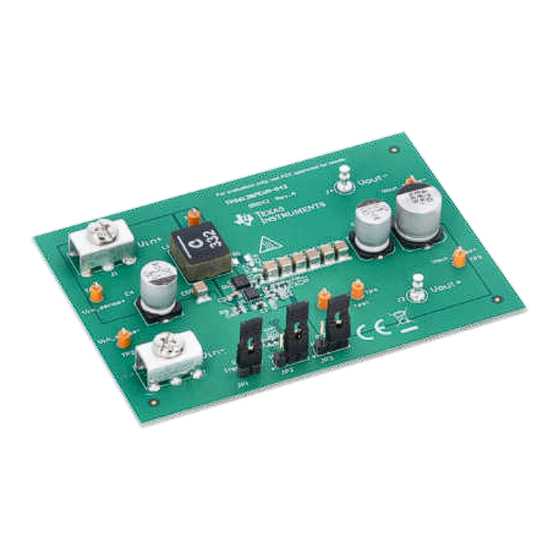

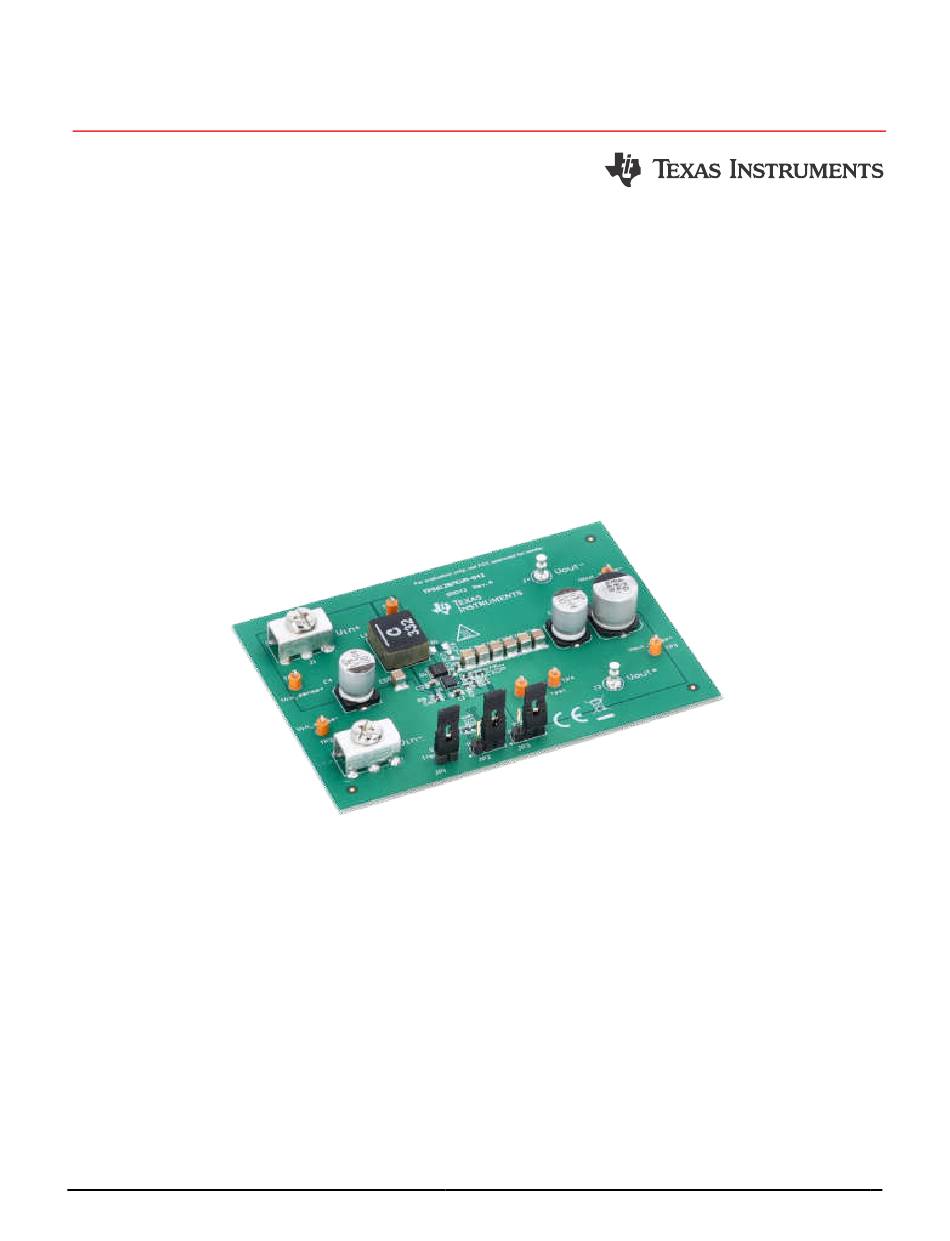

TPS61287 Evaluation Module
Description
The TPS61287EVM helps to evaluate the behavior
and performance of the TPS61287 at different input
voltages, output voltages, and load conditions. This
EVM is designed for 3.3V to 4.2V input voltage and
18V output voltage applications. This EVM has test
points of TP1 and TP2 for input voltage measurement,
TP3 and TP6 for output voltage measurement, TP7
for SW measurement, TP4 and TP5 for loop test,
respectively.
SLVUCW1 – OCTOBER 2024
Submit Document Feedback
Features
Output current 3A
Up to 92.3% efficiency at VIN = 3.6V to VOUT =
18V, and IOUT = 2A
Programmable switching valley current limit from
5A to 20A
Selectable auto PFM and forced PWM mode
Output overvoltage protection
Synchronization capability to external clock
TPS61287EVM-042
Copyright © 2024 Texas Instruments Incorporated
Description
TPS61287 Evaluation Module
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPS61287EVM-042 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TPS61287EVM-042

  • Page 1 TP3 and TP6 for output voltage measurement, TP7 • Output overvoltage protection for SW measurement, TP4 and TP5 for loop test, • Synchronization capability to external clock respectively. TPS61287EVM-042 SLVUCW1 – OCTOBER 2024 TPS61287 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    The TPS61287 has a wide input voltage range from 2.5V to 23V and the output voltage covers up to 25V with 20A switching valley current capability. The TPS61287 has output overvoltage protection and overcurrent protection to prevent the device from over heat. TPS61287 Evaluation Module SLVUCW1 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 3 MODE pin input jumper. Place a jumper across MODE and High to set the device in forced PWM mode. Put the jumper across MODE and Low to set the device in auto PFM mode. SLVUCW1 – OCTOBER 2024 TPS61287 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 Hardware Design Files www.ti.com 3 Hardware Design Files 3.1 Schematics The TPS61287 EVM schematic is shown in Figure 3-1. Figure 3-1. TPS61287EVM-042 Schematic TPS61287 Evaluation Module SLVUCW1 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5: Pcb Layouts

    Hardware Design Files 3.2 PCB Layouts The TPS61287EVM-042 board is a 4-layer PCB. The top and bottom layers copper thickness are 2-oz. The two inner layers copper thickness are 1-oz. The top view and bottom view are shown in Figure 3-2...
  • Page 6 Hardware Design Files www.ti.com Figure 3-4. TPS61287EVM-042 Inner Layer1 Layout Figure 3-5. TPS61287EVM-042 Inner Layer2 Layout TPS61287 Evaluation Module SLVUCW1 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 Hardware Design Files 3.3 Bill of Materials (BOM) The bill of materials of TPS61287EVM-042 is listed in Table 3-1. Table 3-1. Bill of Materials Designator Value Description Package Reference Part Number Manufacturer 4.7µF CAP, CERM, 4.7µF, 16V,+/- 10%, X5R, AEC-...
  • Page 8 0603 2.20 RES, 2.20, 1%, 0.25 W, AEC-Q200 Grade 0, 1206 ERJ-8RQF2R2V Panasonic 1206 RES, 10.0 k, 1%, 0.1 W, 0402 0402 ERJ-2RKF1002X Panasonic TPS61287 Evaluation Module SLVUCW1 – OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9: Additional Information

    Additional Information 4 Additional Information 4.1 Trademarks All trademarks are the property of their respective owners. SLVUCW1 – OCTOBER 2024 TPS61287 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 11 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 12 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 13 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 14 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 15 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
