iSMA CONTROLLI MVE2 Series Mounting Instructions page 2

Use cable gland PG13,5 model (not supplied).
IP65 MODEL suitable with PG13,5 cable gland for cables with Ø variable between 6 and 12 mm.

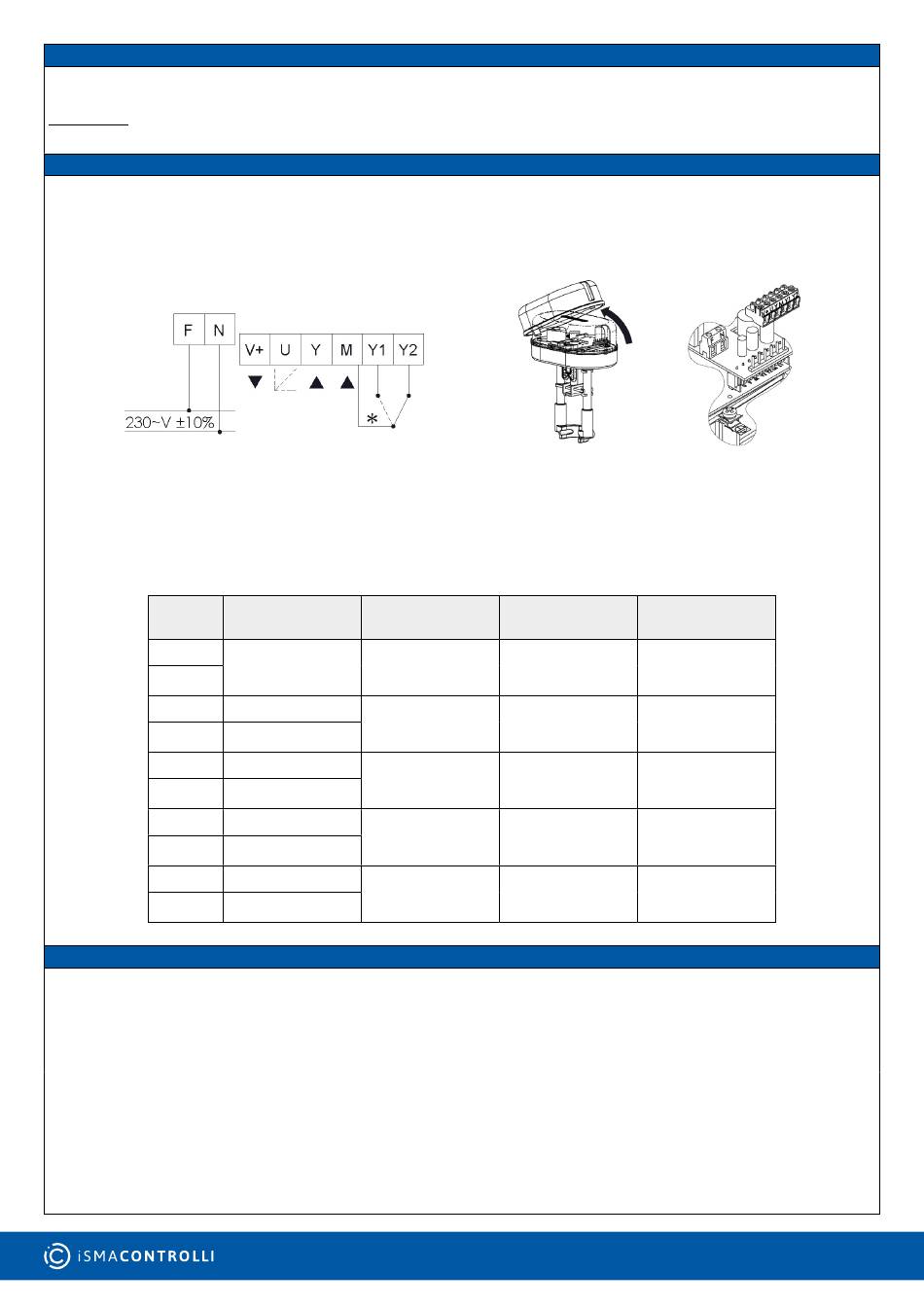

Connect the ground terminal to the proper screw labelled with the ground symbol as shown in the following picture.
TERMINAL BLOCK
(*) In order to use the floating control the only possible connection is between terminal
M and Y1/Y2. Do not connect Y1/Y2 to phase (F) or neutral (N).
Note: To avoid damages to electronic components caused by the PCB bending, do not press too much
while fixing the terminal block.
Label
F
N
Y
M
Y1
Y2
V+
M
U
M
• Install on the power supply line a protecting device to avoid short circuits (fuse or magneto-thermic) according to the specifi-
cations in force;
• in case of accidental removal of the cover to make sure that power is disconnected before working on the actuator or near it;
• the products are maintenance free.
CABLE GLAND
GROUND CONNECTION
Description Function
230 Vac Power Supply
0-10 Vdc
Modulating Control
Input
0 V (Common)
Open
Floating Control
Input
Close
16 Vdc
Voltage Output
(max 25 mA)
0 V (Common)
2-10 Vdc
Feedback Output
Signal
0 V (Common)
SAFETY PRESCRIPTIONS
www.ismacontrolli.com
Wire Size Max Wire Length
AWG16
(min 1 mm - max
2
1.5 mm )
2
AWG20
(min 0.5 mm - max
2
1.5 mm )
2
AWG20
(min 0.5 mm - max
2
1.5 mm )
2
AWG20
(min 0.5 mm - max
2
1.5 mm )
2
AWG20
(min 0.5 mm - max
2
1.5 mm )
2
DIM205en | 1 Issue rev. 5 | 07/2022
st
75 m
200 m
200 m
200 m
200 m
page 2
