iSMA CONTROLLI MVE2 Series Mounting Instructions

iSMA CONTROLLI MVE2 Series Mounting Instructions

Valve actuator

Advertisement

Quick Links

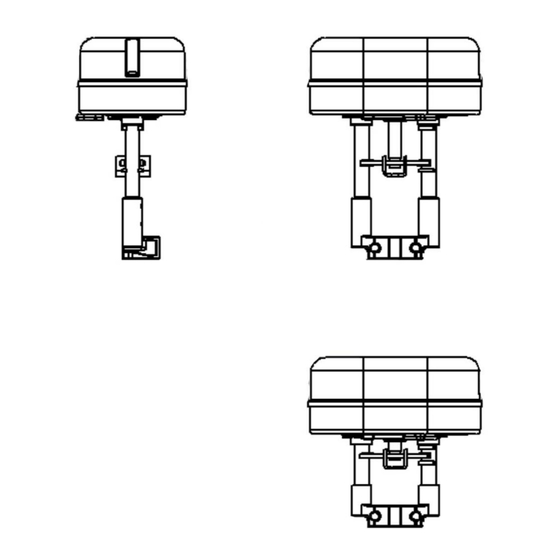

MVE2xx/MVE2xx-65
Valve Actuators
Attention to 230Vac voltage.
1
3
ANTI ROTATION
GUIDE
The performances stated in this sheet can be modifi ed without any prior notice.

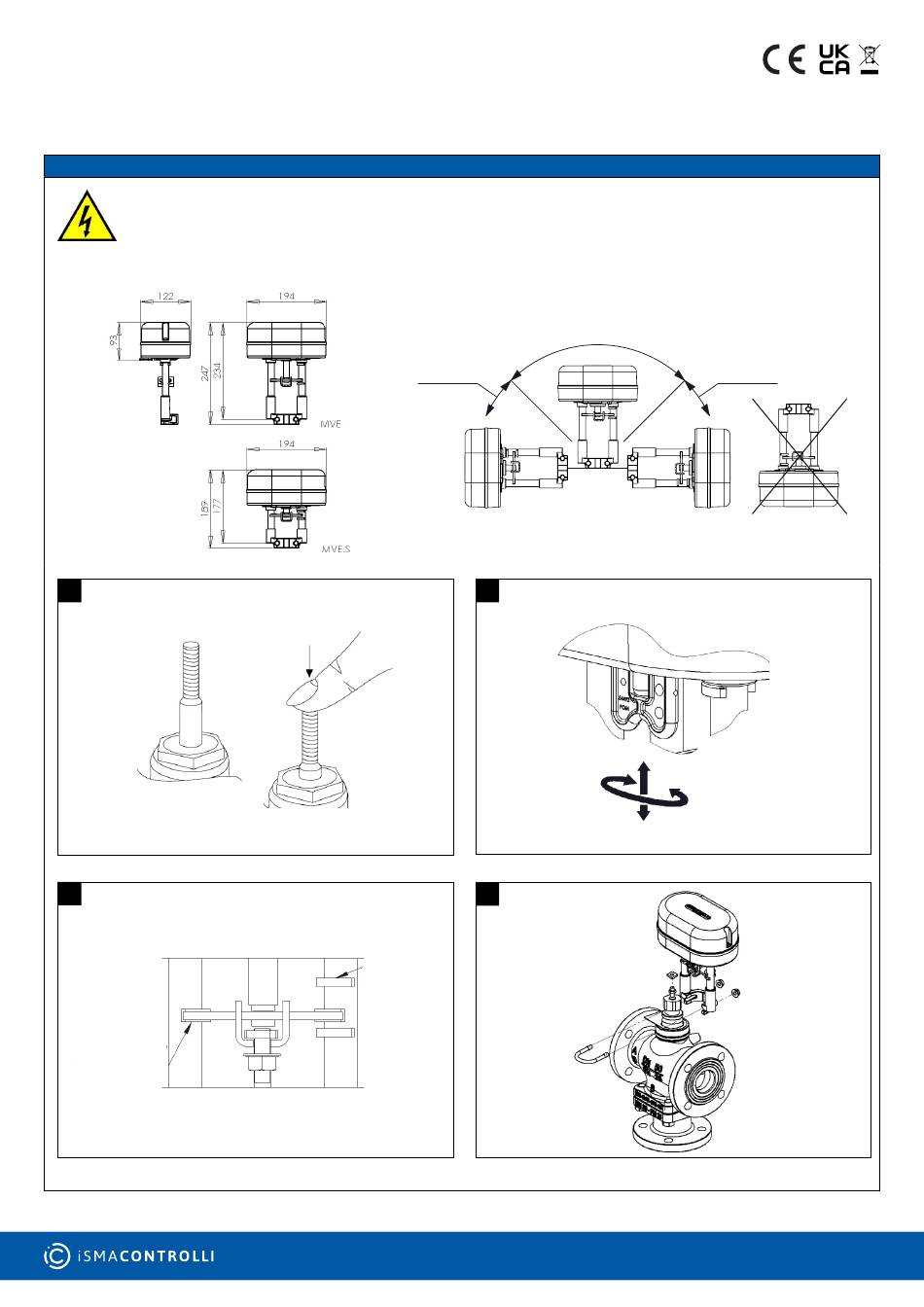

MOUNTING INSTRUCTIONS
T fluido/fluid ≥ 120°C
T fluid ≥ 120°C
STROKE INDICATOR
www.ismacontrolli.com
T fluid MAX 120°C
T fluido/fluid MAX 120°C
2
4
DIM205en | 1
Issue rev. 5 | 07/2022
st
T fluido/fluid ≥ 120°C
T fluid ≥ 120°C
page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MVE2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for iSMA CONTROLLI MVE2 Series

  • Page 1 MVE2xx/MVE2xx-65 Valve Actuators MOUNTING INSTRUCTIONS Attention to 230Vac voltage. T fluid MAX 120°C T fluido/fluid MAX 120°C T fluido/fluid ≥ 120°C T fluid ≥ 120°C T fluido/fluid ≥ 120°C T fluid ≥ 120°C STROKE INDICATOR ANTI ROTATION GUIDE The performances stated in this sheet can be modifi ed without any prior notice. www.ismacontrolli.com DIM205en | 1 Issue rev.
  • Page 2 CABLE GLAND Use cable gland PG13,5 model (not supplied). IP65 MODEL suitable with PG13,5 cable gland for cables with Ø variable between 6 and 12 mm. GROUND CONNECTION Connect the ground terminal to the proper screw labelled with the ground symbol as shown in the following picture. TERMINAL BLOCK (*) In order to use the floating control the only possible connection is between terminal M and Y1/Y2.
  • Page 3 WIRING DIAGRAM Modulating Control 0-10Vdc 3p Floating Control 230VAC 230VAC Controller Controller Open Command + Close Y2 Command - Neutral Neutral DMVE CLOSING RELAY OPENING RELAY K2 KC1 K3 K4 KC2 DMVE: Electrical rating: 24V AC/DC, 4A Switch Direct Action Reverse Action U = 10V U = 2V...
  • Page 4 Manual control ON, the actuators ignores the control signal. RED GREEN ON ATTENTION! The electronic board is electrically supplied iSMA CONTROLLI S.p.A. - Via Carlo Levi 52, 16010 Sant’Olcese (GE) - Italy | support@ismacontrolli.com www.ismacontrolli.com DIM205en | 1 Issue rev. 5 | 07/2022...

This manual is also suitable for:

Mve2 65seriesMve204s-65Mve206Mve206-65Mve210s
