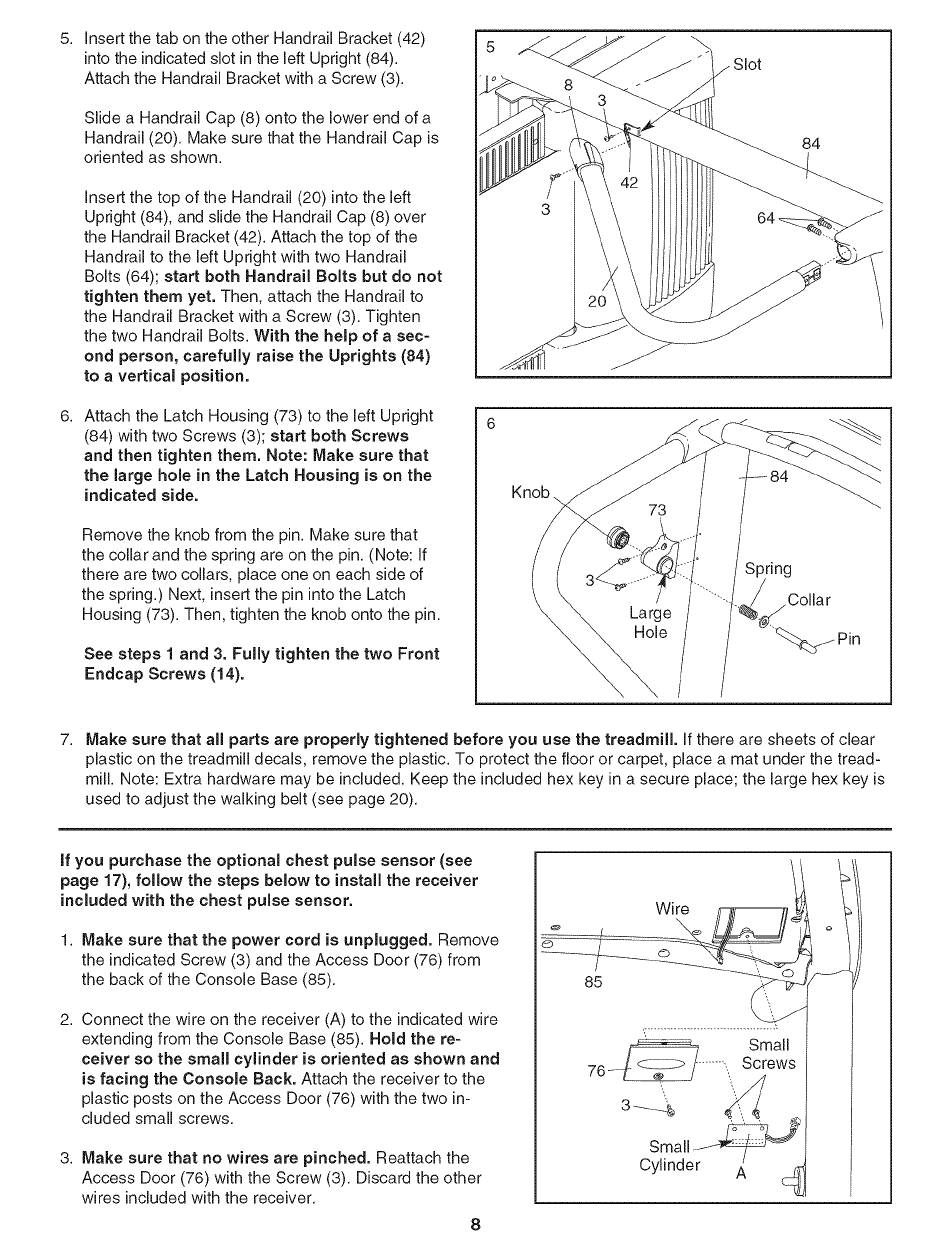

Insert t hetabontheotherHandrail Bracket (42)
intotheindicated s lotintheleftUpright (84).
Attach theHandrail Bracket witha Screw (3).
Slidea Handrail Cap(8)ontothelower endofa
Handrail (20).Make surethattheHandrail Capis
oriented asshown.
Insert the top of the Handrail (20) into the left
Upright (84), and slide the Handrail Cap (8) over
the Handrail Bracket (42). Attach the top of the
Handrail to the left Upright with two Handrail
Bolts (64); start both Handrail Bolts but do not
tighten them yet. Then, attach the Handrail to
the Handrail Bracket with a Screw (3). Tighten
the two Handrail Bolts. With the help of a sec-
ond person, carefully raise the Uprights (84)
to a vertical position.
Attach the Latch Housing (73) to the left Upright
(84) with two Screws (3); start both Screws
and then tighten them. Note: Make sure that
the large hole in the Latch Housing is on the
indicated side.
Remove the knob from the pin. Make sure that
the collar and the spring are on the pin. (Note: If
there are two collars, place one on each side of
the spring.) Next, insert the pin into the Latch
Housing (73). Then, tighten the knob onto the pin.
See steps 1 and 3. Fully tighten the two Front
Endcap Screws (14).
Knob
84
Spring
Collar
Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Note: Extra hardware may be included. Keep the included hex key in a secure place; the large hex key is
used to adjust the walking belt (see page 20).
if you purchase the optional chest pulse sensor (see
page 17), follow the steps below to install the receiver
included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove
the indicated Screw (3) and the Access Door (76) from
the back of the Console Base (85).
2. Connect the wire on the receiver (A) to the indicated wire
extending from the Console Base (85). Hold the re-
ceiver so the small cylinder is oriented as shown and
is facing the Console Back. Attach the receiver to the
plastic posts on the Access Door (76) with the two in-
cluded small screws.
3. Make sure that no wires are pinched. Reattach the
Access Door (76) with the Screw (3). Discard the other
wires included with the receiver.
