K-array Lyzard KZ12 User Manual page 2

A -
Solder the cable on
terminals ,
in+ in-
OR
B -
press the cable with isolated
silicone screws on terminals
INSTALLATION
SERVICE
Cleaning:
Use only a soft, dry cloth to clean the
housing. Do not use any solvents,
chemicals, or cleaning solutions
containing alcohol, ammonia, or
abrasives. Do not use any sprays near
the product or allow liquids to spill
into any openings.
K
K-array s.u.r.l.
Via Paolina Romagnoli 17
50037 San Piero a Sieve (Firenze)- Italy
tel +39 055 8487222
tel +39 055 8487238
e-mail: info@k-array.com
www.k-array.com
www.k-array.com
,
in+ in-
To obtain service:
1) Contact the official K-array distributor in your country. Your local distributor will direct you to
the appropriate service center.
2) If you are calling for service, please have the serial number(s) of the unit(s) available for
reference. Ask for Customer Service, and be prepared to describe the problem clearly and
completely.
3) If the problem cannot be resolved over the phone, you may be required to send the unit in for
service. In this instance, you will be provided with an RA (Return Authorization) number which
should be included on all shipping documents and correspondence regarding the repair. Shipping
charges are the responsibility of the purchaser.
Any attempt to modify or replace components of the device will invalidate your warranty. Service
must be performed by an authorized K-array service center.
Speaker power handling
Impedance
Operating frequency range
Maximum SPL
Horizontal
Vertical
Type
Frequency
Full range
Dimensions
Weight
KZ12
Lyzard KZ10W
MADE IN ITALY
Input from
1
2
2
amplifier
1
Fixing points
2
for wall bracket
1
2 2

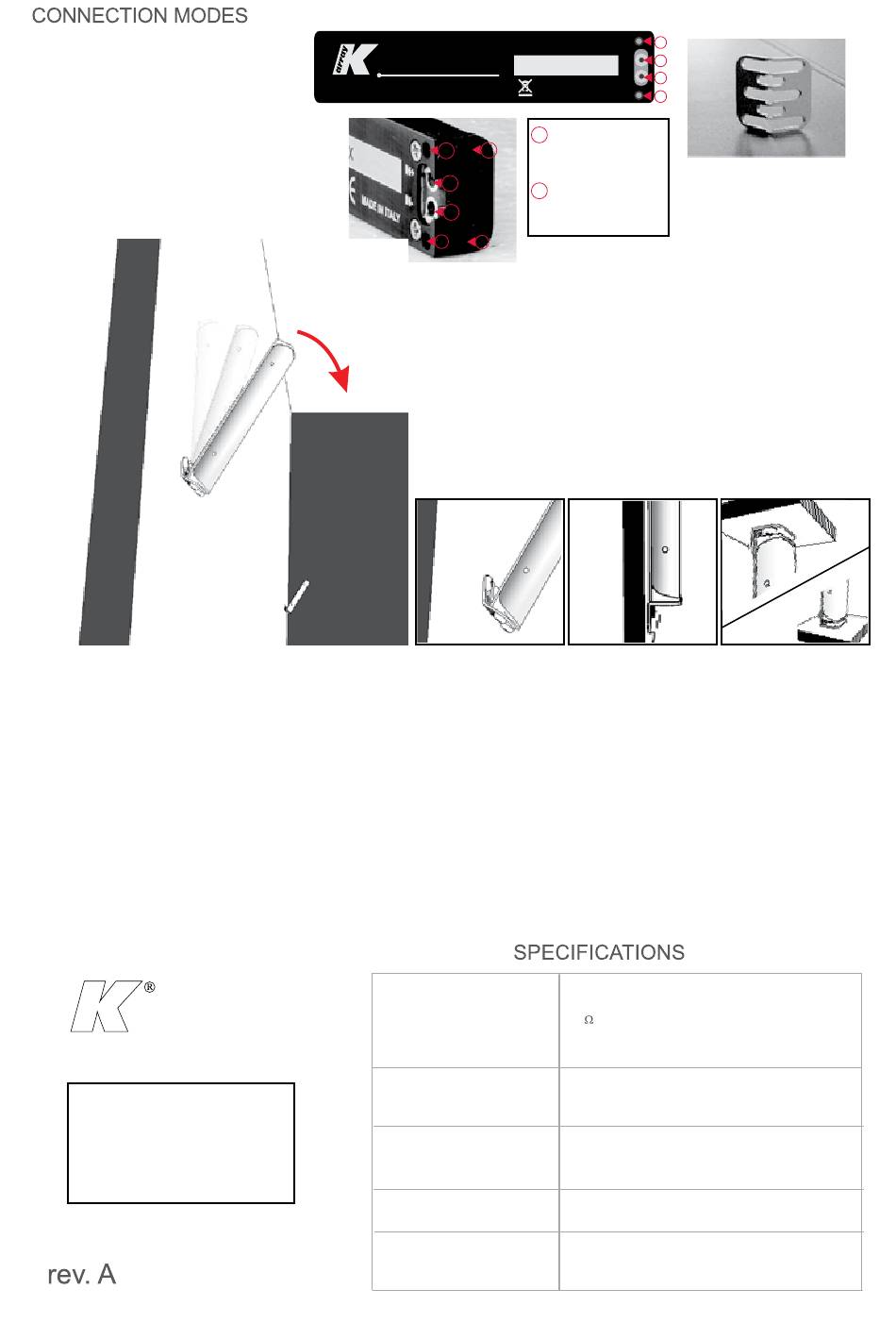

1.Fix the bracket to the mounting surface using the
screws and wall anchors included.
2.Connect the cable to the device
3.Use the included screws to fix the device
to the positioned bracket
4.Bend the bracket to the desired angle.
wall
Acoustics
8 w (AES)
16
350 Hz - 18 KHz +/- 3dB
95 dB continuous - 102 dB peak
Coverage
140°
20°
Cross over
External crossover required
250Hz 24dB/oct minimum suggested
Transducers
4 x 0.5" Neodymium speaker with 0.5" voice coil
Physical
2.1 x 10 x 1.2 cm (0.83 x 3.94 x 0.47 inches)
46g (0.10 lbs)
2
1
IN+
1
IN-
2
Wall bracket
wall
ceiling
table
