Version 1.0
DVG-G1402S
Wireless G VoIP Router

Advertisement

Table of Contents
loading

Related Manuals for D-Link DVG-G1402S

Summary of Contents for D-Link DVG-G1402S

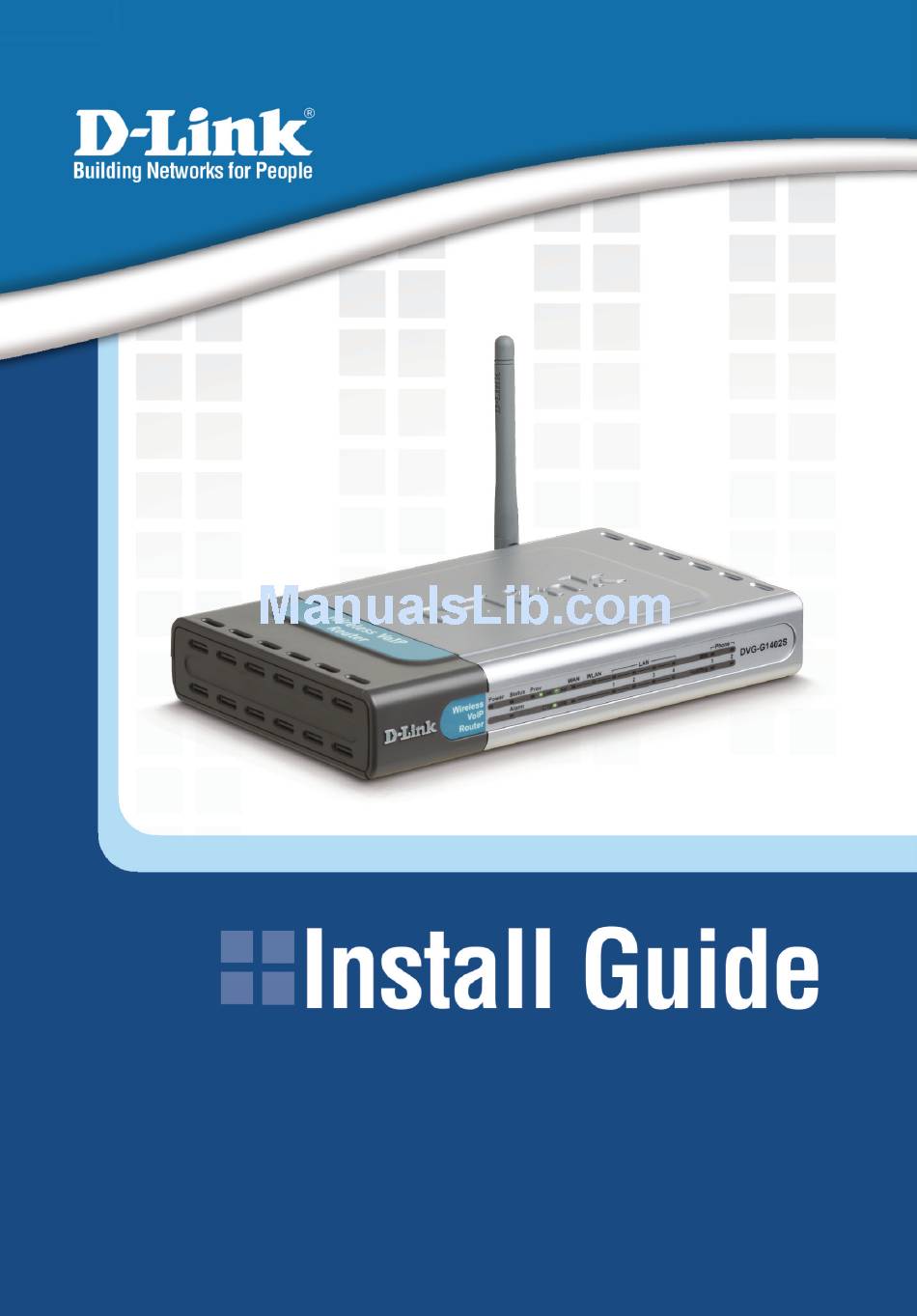

  • Page 1 Version 1.0 DVG-G1402S Wireless G VoIP Router...

  • Page 2: System Requirements

    A subscription with a VoIP service provider. It’s best to use the same computer that is connected to your router for configuring the DVG-G1402S Router. The DVG-G1402S acts as a DHCP server and will assign all the necessary IP address information on your network.
  • Page 3 Power LED A steady light indicates a wireless Solid indicates a connection. A blinking light indicates connection to a good that the DVG-G1402S is receiving/ power source. transmitting from/to the wireless network. LAN LEDs When a connection is established the 10...

  • Page 4: Rear Panel

    Connects to a wireless enabled computers using network. Ethernet cabling. Reset Button This button will restore the factory default settings of the DVG-G1402S. WAN Port Connects to your broadband modem using an Ethernet cable. Phone Ports Connect to your phones using standard phone cabling (RJ-11).

  • Page 5: Installing The Hardware

    Installing the Hardware Insert one end of the Ethernet cable into the Ethernet (LAN) port on the back panel of the DVG-G1402S and the other end of the cable to an Ethernet Adapter or available Ethernet port on your computer.
  • Page 6 Connect the power adapter to the power input at the back panel of the DVG-G1402S and then plug the other end of the power adapter to a wall outlet or power strip. On the front of the device, the Power LED will turn ON to indicate proper operation.
  • Page 7 Internet Explorer and enter the IP address of the DVG-G1402S. Open a web browser and type in the IP address of the DVG-G1402S. Note: if you have changed the default IP address assigned to the DVG-G1402S, make sure to enter the correct IP address. D-Link Systems, Inc.
  • Page 8 Configuration DVG-G1402S Install Guide Configuration (continued) Click on Run Wizard. Click Next. Enter a NTP server or leave blank to use the default server. Select your time zone from the drop-down menu. Click Next. D-Link Systems, Inc.
  • Page 9 DVG-G1402S Install Guide Configuration Configuration (continued) Select a channel. For best results, use 1, 6, or 11. Enter the SSID, or Service Set Identifier, which is the workgroup name of your Wireless Network. All devices must all have the same SSID to communicate on the wireless network.
  • Page 10 Security on page 12. Select your Internet connection type: Dynamic - Most Cable ISPs or if you are connecting the DVG-G1402S behind a router. Static - Select if your ISP supplied you with your IP settings. PPPoE - Most DSL ISPs Click Next.
  • Page 11 Note: You will no longer use the PPPoE software that is installed on your computer. Make sure you disable or uninstall the software. Setup is finished. Click Restart to reboot the DVG-G1402S. Once the adapter is finished rebooting, turn on your modem and allow up to 2 minutes to connect to your ISP.

  • Page 12: Wireless Security

    Wireless Security DVG-G1402S Install Guide Wireless Security WEP (Wired Equivalent Privacy) is a method of encrypting data for wireless communication intended to provide the same level of privacy as a wired network. To gain access to a WEP network, you must know the key. The key is a string of characters that you create.

  • Page 13: Wireless Considerations

    The key to maximizing wireless range is to follow these basic guidelines: Keep the number of walls and ceilings between the DVG-G1402S and other network devices to a minimum - each wall or ceiling can reduce your router’s range from 3-90 feet (1-30 meters).

  • Page 14: Voip Basics

    When someone calls you, they dial your regular telephone number. Behind the scenes, your number looks similar to an e-mail address. This number instructs the call to travel over the Internet to the D-Link VoIP Router, your phone rings, and all you have to do is pick up and answer it.
  • Page 15 Configuration drop-down menu. Set the IP address to 192.168.15.15 and the subnet mask to 255.255.255.0. The default gateway and primary DNS server IP addresses should be set to the LAN IP address of the DVG-G1402S (192.168.15.1). Click Apply Now. D-Link Systems, Inc.

  • Page 16: Technical Support

    Revised 09/07/2005 Copyright ©2005 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Maximum wireless signal rate based on IEEE Standard 802.11g specifications.
