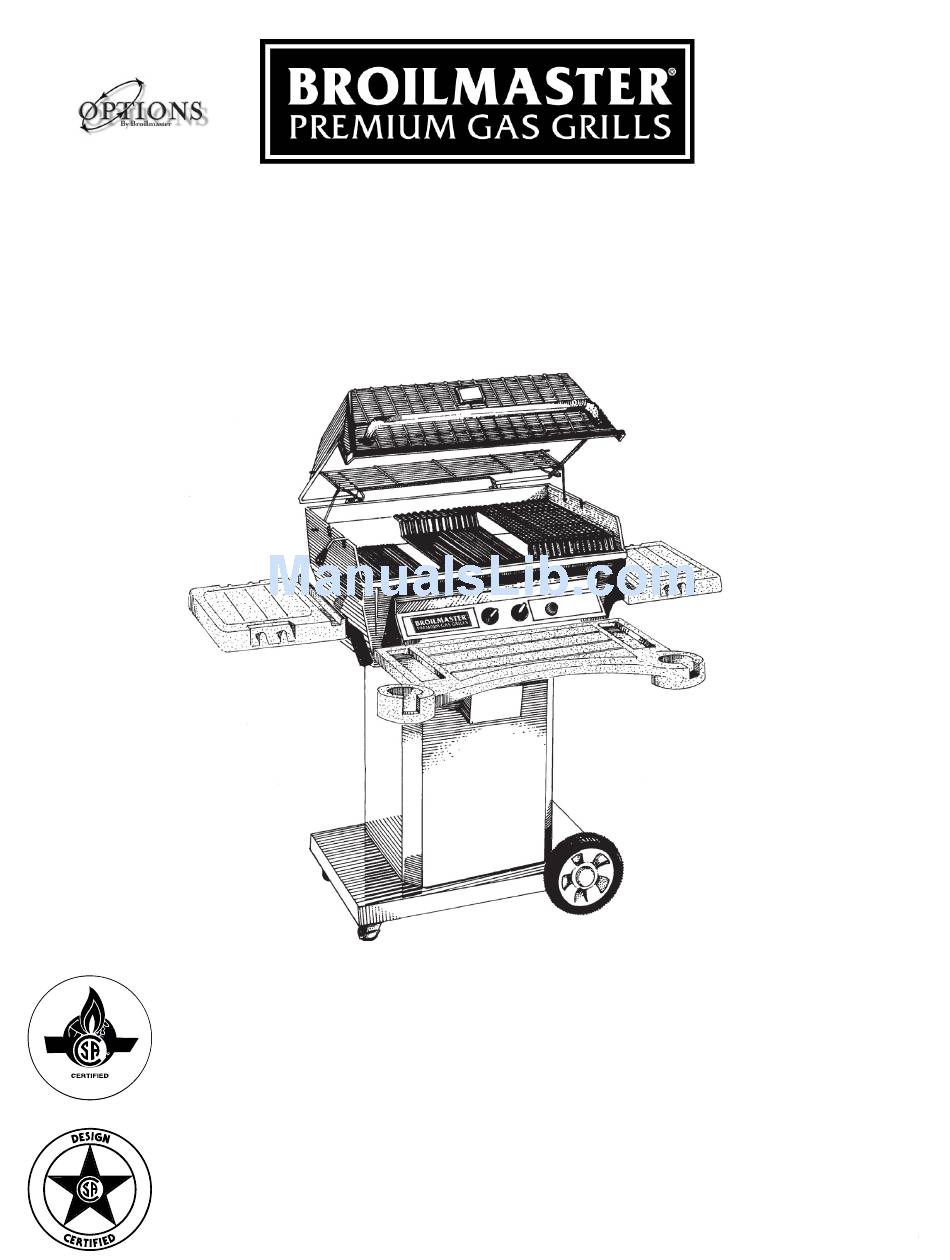

- Page 1 Premium "P" Gas Grill Owner’s Manual Optional Accessories Shown P3-1 and P4-1 Models B100911-3-0806 B100911-3-0806 Page 1...
- Page 2 Parts may have sharp edges. Wear leather work gloves and handle parts carefully during the unpacking, assembly and installation. WARNING Broilmaster Gas Grills must ONLY use propane cylinders equipped with an Overfill ® Protection Device (OPD). Use only a reputable propane dealer when exchanging or filling cylinders.
-
Page 3: Thank You
At Broilmaster, we continually strive to enhance the performance and quality of our products for your grilling enjoyment. Every ef- fort will be made to ensure that Broilmaster continues to be your choice as the Premium grill of the future. -
Page 4: Table Of Contents
ABLE OF ONTENTS Congratulations! You have chosen the finest grill for your outdoor cooking pleasure. Please take time to read this entire manual before assembling your Premium Broilmaster gas grill. ® Hardware Package ..........................5 Parts Diagram ............................6 Parts List ............................7 & 8 Grill Assembly .......................... -
Page 5: Hardware Package
Hardware Package (FOR POST INSTALLATION) (FOR POST INSTALLATION) B100911-3-0806 Page 5... -
Page 6: Parts Diagram
To locate a dealer in your ® area, contact Broilmaster Customer Service at 800-851-3153 • www.broilmaster.com. To ensure prompt and accurate service, please provide the following information when placing a repair part order: Model Number, Serial Number, Part Name, Part Number, and Quantity of parts needed. - Page 7 "P" S remium eries arts Index Part Description P3BL-1 P3HG-1 P3GY-1 P3FBL-1 P3FGY-1 P3S-1 P3BLN-1 P3HGN-1 P3GYN-1 P3FBLN-1 P3FGYN-1 Grill Body Top (with heat indicator, hinge, and bridge pins) B100453 B100455 B100454 B100453 B100454 B100453 Grill Body Top (casting only) B100456 B100459 B100458...
- Page 8 "P" S remium eries arts ist (Cont.) Index Part Description P4BL-1 P4HG-1 P4GY-1 P4FBL-1 P4FGY-1 P4BLN-1 P4HGN-1 P4GYN-1 P4FBLN-1 P4FGYN-1 Grill Body Top (with heat indicator, hinge, and bridge pins) B073286 B076830 B073282 B073286 B073282 Grill Body Top (casting only) B076621 B100151 B100149...
-
Page 9: Parts List
Follow all instructions unless noted to apply grill: only to other specific models. • Phillips screwdriver If you purchased an accessory with your Broilmaster, • Adjustable wrench set follow the instructions provided with the accessory for • Socket set assembly and installation. - Page 10 RILL SSEMBLY Ignitor Assembly Figure 1 Slide the collector box spacer (26) and nut (pro- vided on assembly) onto the collector box shaft and tighten. Figure 1. Note: Peel protective film from control panel label before installing ignitor. Figure 2 Installing the Ignitor Caution: Do not cut or damage ignitor wire.
- Page 11 RILL SSEMBLY Figure 3 Radiation Shield Place the radiation shield (10) in the grill bottom (22). Figure 3. Installing the Burner Insert the burner assembly (9) into the grill bottom (22) with the venturi tubes facing the front of the grill. Fig- ure 4.
- Page 12 RILL SSEMBLY Figure 6 Handle For your added comfort a foam grip (4) has been pro- vided. Figure 7. Tip: For ease of installation, slightly lubricate the front handle with liquid soap before pushing the foam grip into place. Fasten the front handle (3) to the grill lid (1) with two #10-24 x 1"...
- Page 13 RILL SSEMBLY Installing Racks Place the briquet rack (8) or flavor screen rack (28) on the burner assembly. Figure 9 Position the flavor screen (29) on to flavor screen rack (28) or the ceramic briquets (7) evenly on the briquette rack without overlapping.
-
Page 14: Propane Gas Grills
Grill Location Gas Type Never use Liquid Propane (LP) gas with a grill designed When choosing the ideal location for your Broilmaster ® for Natural gas, or Natural gas with a grill designed for Premium Gas Grill, remember this grill is designed for Liquid Propane gas. - Page 15 Never attempt to use or repair tions and recommended procedures. a cylinder with a faulty or damaged valve outlet. A cylinder that has been dropped, dented, or otherwise Warning: Broilmaster Premium Gas Grills require ® damaged must be replaced.
- Page 16 fire or explosion, resulting in property damage or personal injury. The pressure regulator’s fitting must remain clean and free of nicks and scratches. A dirty, nicked or scratched fitting can cause a gas leak, resulting in an explosion or fire. Use only genuine Broilmaster replacement parts unless other- ®...
-
Page 17: Gas Conversion
Gas Conversion Gas Conversion Remove the hose and regulator from the valve. Propane grills include a conversion kit for natural Replace the components inside of your grill. gas. If you have a natural grill and wish to convert Mueller it to propane you will need to purchase the optional conversion kit #BCK195. -
Page 18: Gas Valve
Gas Valve Identifying Your Valve Valve mounting flange Valve stem cap Stamping on exterior of valve Gas inlet connection Page 18 B100911-3-0806... -
Page 19: Natural Gas Grills
ATURAL RILLS Gas Type Grill Location When choosing the ideal location for your Broilmaster The type gas required for your grill can be determined ® Premium Gas Grill, remember this grill is designed for from the product identification label located on the grill’s control panel. -
Page 20: Operation- Propane & Natural Grills
peration - ropane & atural rills Operating Instructions Checking for Gas Leaks Using the Ignitor Check for gas leaks every time you connect your Broil- Caution: If a burner fails to light after 5 sec- master propane gas grill to a Propane gas cylinder, ®... -
Page 21: Operation
Cooking Keep any electrical cord and fuel supply hose away from all heated surfaces. Broilmaster is happy to provide a cookbook with each ® of its grills. The cookbook contains helpful cooking tips and instructions as well as great tasting recipes for preparing many delicious foods on your grill. -
Page 22: Maintenance
Clean regularly with a solution of mild detergent and clean with a brass brush. Wash with water and a mild hot water. Touch-up paint is available from your dealer. detergent. Broilmaster protective covers are recommended. Stain- ® less steel components can be easily cleaned with a spray-on stainless steel cleaner found in most hardware stores. -
Page 23: Troubleshooting
ROUBLESHOOTING Although the manufacturer has attempted to ensure that your grill will operate properly and satisfactorily, sometimes problems do arise. The following troubleshooting guide lists several possible problems and their probable cause and solution. Problem Cause Solution Burner will not light. Gas injector not inserted in ven- Realign/engage gas injector with the turi tube. -
Page 24: Warranty
WHAT IS COVERED AND FOR HOW LONG • From the date this Broilmaster Premium Grill is first purchased, we will make available at our factory a free replacement for any defective parts covered by this warranty on the following basis. Proof of purchase required. -
Page 25: Notes
Notes B100911-3-0806 Page 25... - Page 26 Notes Page 26 B100911-3-0806...
- Page 27 Notes B100911-3-0806 Page 27...
- Page 28 URABLE RILL NOWN BROILMASTER ® A Division of Empire Comfort Systems, Inc. 918 Freeburg Ave. Belleville, Illinois 62220 Phone: 1-800-851-3153 FAX: 1-800-443-8648 .broilmaster.com ISIT OUR WEB SITE AT WWW Page 28 B100911-3-0806...
