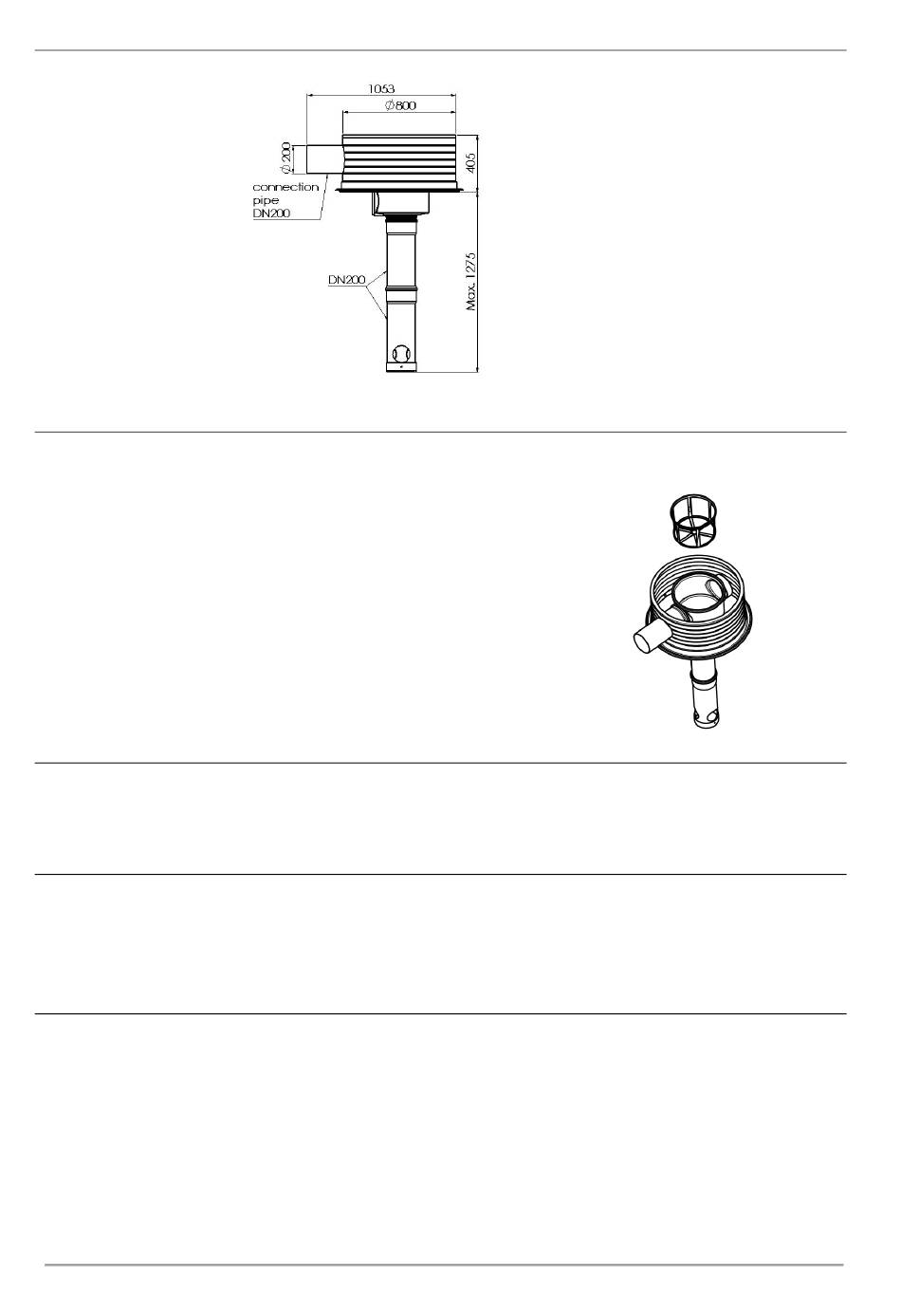

4. Dimensions and connection

5. Operation and maintenance

The Filter Shaft is placed directly on the tank on dome shaft DN800 and aligned. For hygiene
purposes, the cage must be removed regularly, emptied and, if
necessary, cleaned.
6. Accessibility
For easier accessibility, a distance of 200 mm from the top of the filter to the ground surface is
recommended. This distance is ensured by using the shaft with cover RWDS6620.
7. Areas driven on by car
For areas driven on by car with a max. axle load of 2.2 t, a minimum distance of 600 mm from the
top of the filter to the ground surface is required. The complete car sets are suitable for shaft
construction. RWDS0049 or RWDS0059.
8. Areas driven on with heavy loads
For areas driven on with a max. axle load of 11.5 t, a minimum distance of 800 mm from the top
of the filter to the ground surface is required. Spacer ring RWDS0043 together with heavy-load
shaft RWDS0400 (alternatively a BEGU frame provided by the customer), which must be
anchored to the road surface in a load-distributing manner, is suitable for shaft construction.
