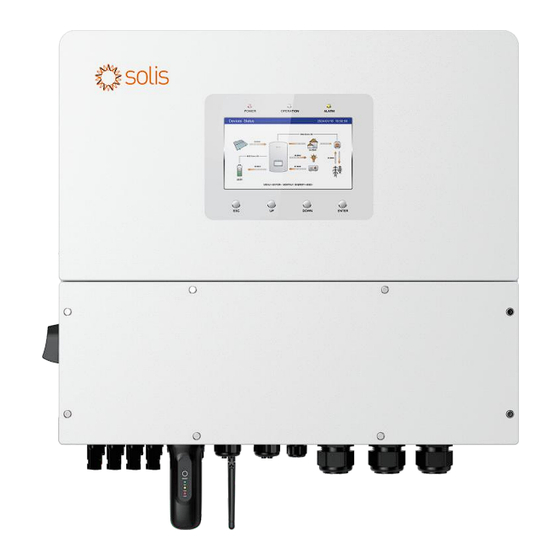

SOLIS S6 Series User Manual

Hybrid inverter
Hide thumbs Also See for S6 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
for S6 Series Hybrid Inverter
Applicable models
S6-EH3P12K-H
S6-EH3P15K-H
S6-EH3P20K-H
S6-EH3P8K-LV-H
S6-EH3P10K-LV-H
S6-EH3P12K-LV-H
Applicable System
Three phase system
Version 1.0, Release Date: 10,2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S6 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOLIS S6 Series

Summary of Contents for SOLIS S6 Series

  • Page 1 User Manual for S6 Series Hybrid Inverter Applicable models S6-EH3P12K-H S6-EH3P15K-H S6-EH3P20K-H S6-EH3P8K-LV-H S6-EH3P10K-LV-H S6-EH3P12K-LV-H Applicable System Three phase system Version 1.0, Release Date: 10,2024...

  • Page 2: Table Of Contents

    Contents 1. Introduction ……………………………………………………………………………………………………………………………… 1.1 Product Description ……………………………………………………………………………………………………………… 1.2 Packaging ………………………………………………………………………………………………………………………………… 1.3 Inverter Circuit Diagram …………………………………………………………………………………………………… 1.4 Tools Required for Installation ……………………………………………………………………………………… 2. Safety & Warning ……………………………………………………………………………………………………………… 2.1 Safety ………………………………………………………………………………………………………………………………………… 2.2 General Safety Instructions ………………………………………………………………………………………………… 2.3 Notice For Use ………………………………………………………………………………………………………………………… 2.4 Notice for Disposal ………………………………………………………………………………………………………………...
  • Page 3 Contents 6. Maintenance ………………………………………………………………………………………………………………………… 7. Troubleshooting ………………………………………………………………………………………………………………… 8. Specifications ………………………………………………………………………………………………………………………...

  • Page 4: Introduction

    1. Introduction User Manual 1.1 Product Description The Solis S6 Series is designed for residential hybrid systems, which can work with batteries to optimize self-consumption. The unit can operate in both off- and on-grid modes. This manual covers the Solis S6 Series inverter model listed below:...

  • Page 5: Packaging

    If more than 4 devices are connected in parallel (more than 3 for the 20K model), select a separate kit. The accessories include CT and the meter. If anything is missing, please contact your local Solis distributor.

  • Page 6: Inverter Circuit Diagram

    1. Introduction User Manual 1.3 Inverter Circuit Diagram Figure 1.3 1.4 Tools Required for Installation Wire Strippers Wire Strippers Torqx T20 Screwdriver Technician Screwdriver 12AWG to 6AWG 20AWG to 10AWG LUG Crimping Tool Multimeter (AC/DC amps) Drill and Impact Driver Channel Locks Torque Screwdriver MC4 Crimping Tool...

  • Page 7: Safety & Warning

    2. Safety & Warning User Manual 2.1 Safety The following types of safety instructions and general information appear in this document as described below: DANGER: “Danger” indicates a hazardous situation which if not avoided, will result in death or serious injury. WARNING: “Warning”...
  • Page 8 Operator must put on the technicians’ gloves during the whole process in case of any electrical hazards. WARNING: AC BACKUP Port of S6 Series is not allowed to connect to the grid. WARNING: Please refer to the specification of the battery before configuration.

  • Page 9: Notice For Use

    2. Safety & Warning User Manual 2.3 Notice for Use The inverter has been constructed according to the applicable safety and technical guidelines. Use the inverter in installations that meet the following specifications ONLY: 1. Permanent installation is required. 2. The electrical installation must meet all the applicable regulations and standards. 3.

  • Page 10: Overview

    User Manual 3.1 HMI Screen There are 3 indicators and 4 operation button on the Solis S6 Series Inverter. There are three LED indicators on the hybrid inverter (Red, Green, and Orange) which indicate the working status of the inverter.
  • Page 11 3. Overview User Manual Description of buttons: Button Description “Escape”, allows the user to exit, or cancel the operation. Upwards key, allows the user to increase the value or move forward to the next option. Downwards key, allows the user to decrease the value or move backward DOWN to the previous option.

  • Page 12: System Description

    3. Overview User Manual 3.2 System Description 3.2.1 Single system The single system consists of PV module, battery, hybrid inverter, CT or smart meter. The PV Module converts solar energy into electric energy, which is then converted by the inverter to charge the battery or power loads or feed into the grid. User can connect heat pump, existing PV plant, generator and ATS according to the actual scenario.
  • Page 13 3. Overview User Manual 3.2.2 Parallel System User can add inverters and batteries to increase capacity. The system supports up to 6 inverters in parallel. Each battery connects to the inverter with an independent CAN line and is managed by the inverter connected to it. Phone Phone PV Module...
  • Page 14 3. Overview User Manual Backup Recommended 8K-LV 10K-LV 12K-LV single-phase Battery Capacity Scenarios output power (For example, AC capacity (For example 12K) 12K&Backup 2h) 1 single 24KWh 2 in parallel 24KWh*2 3 in parallel 24KWh*3 4 in parallel 24KWh*4 5 in parallel 100K 24KWh*5 6 in parallel...
  • Page 15 3. Overview User Manual Phone PV Module APP Web SolisCloud Hybrid Inverter Battery Signal Line Power Line Backup Load Generator Figure 3.3 Typical off-grid scenario diagram (Generator on Gen port) Phone PV Module SolisCloud APP Web CT/Smart Meter Generator Battery Hybrid Inverter Signal Line Grid Load...
  • Page 16 3.2.4 System with grid-tied inverter Generally, the access of grid-tied inverter is for the retrofit of a existing PV plant. The S6 hybrid inverter support access of both Solis grid-tied inverter and third-party grid-tied inverter. 3.2.4.1 Access of third-party grid-tied inverter...
  • Page 17 3. Overview User Manual Third-party grid-tied inverter can be connected via AC-Gen port. With third-party grid-tied inverter connected to the system, it is recommended that: Grid-tied inverter power＜ rated AC power of S6 inverter. In on-grid scenario, when the third-party grid-tied inverter is connected, the system cannot control the output power of the third-party grid-tied inverter, so Feed-in limitation cannot be realized.

  • Page 18: Installation

    4. Installation User Manual 4.1 Select a Location for the Inverter To select a location for the inverter, the following criteria should be considered: Exposure to direct sunlight may cause output power derating. It is recommended to avoid installing the inverter in direct sunlight. It is recommended that the inverter is installed in a cooler ambient which doesn't exceed 104℉/40℃.
  • Page 19 4. Installation User Manual Install on a wall or strong structure capable of bearing the weight of the machine. Install vertically with a maximum incline of +/- 5 degrees, exceeding this may cause output power derating. The fan of the inverter is the lower inlet wind, the upper outlet wind . To avoid overheating, always make sure the flow of air around the inverter is not blocked.

  • Page 20: Mounting The Inverter

    4. Installation User Manual 4.2 Mounting the Inverter Dimensions of mounting bracket: unit:mm Figure 4.3 Inverter wall mounting Once a suitable location has been found according to Section 4.1 and using Figure 4.3 as a guide, firmly attach the wall bracket to the wall. The inverter shall be mounted vertically.

  • Page 21: Pe Cable Installation

    4. Installation User Manual 4.3 PE Cable Installation An external ground connection is provided at the right side of inverter. Prepare OT terminals: M4. Use proper tooling to crimp the lug to the terminal. Connect the OT terminal with ground cable to the both sides of inveter. The torque is 2N.m. Grounding screw Grounding screw Figure 4.5 Connect the external grounding conductor...

  • Page 22: Pv Input Cable Installation

    4. Installation User Manual 4.4 PV Input Cable Installation Before connecting inverter, please make sure the PV array open circuit voltage is within the limit of the inverter. Before connection, please make sure the polarity of the output voltage of PV array matches the“DC+”and“DC-”symbols.
  • Page 23 4. Installation User Manual 3. Pass the stripped DC cable through the nut and waterproof rubber ring. Positive terminal Negative terminal Figure 4.8 4. Connect the wire part of the DC cable to the metal DC terminal and crimp it with the MC4 crimping tool.
  • Page 24 4. Installation User Manual 6. Measure PV voltage of DC input with multimeter, verify DC input cable polarity. Figure 4.11 7. Connect the wired DC terminal to the inverter as shown in the Figure 4.12, and a slight "click" is heard to prove the connection is correct. Click Figure 4.12 CAUTION:...

  • Page 25: Battery Cable Installation

    Figure 4.13 Battery cable connection NOTE: The battery fuse in the inverter wire box is replaceable. The replacement can only be done by a technician authorized by Solis. Fuse specification: 1000V/100A. ℃ The Max.temperature for connecting battery terminals is 105...

  • Page 26: Ac Wiring

    4. Installation User Manual 4.6 AC Wiring DANGER: Before installing the AC cables, be sure that the OCPDs (breakers) are turned off. Use a multimeter to verify that the AC voltages are 0Vac before proceeding. There are three sets of AC output terminals and the installation steps for both are the same. BACKUP GRID U V W N PE U V W N PE...

  • Page 27: Ct Connection

    4. Installation User Manual 4.7 CT Connection CAUTION: Make sure the AC cable is totally isolated from AC power before connecting the smart meter or CT. The CT provided in the product box is compulsory for hybrid system installation. It can be used to detect the grid current direction and provide the system operating condition to hybrid inverter.

  • Page 28: Inverter Communication

    User Manual 4.8 Inverter Communication 4.8.1 Communication Ports Port Port Type Description Used for Solis data logger connection Used for antenna connection for built in ANTENNA Antenna Bluetooth signal 4 hole watertight cable gland Used for RJ45 connection inside wiring box...
  • Page 29 4. Installation User Manual 4.8.2 Communication Terminals PAR-A PAR-B Meter RS485 GRID-CT GEN-CT GEN-DI/DO Figure 4.16 Communication terminals Terminal Type Description RS485 RJ45 Used for Ethernet communication. (Optional) Parallel operation communication port. PAR-A RJ45 (Optional) Parallel operation communication port. PAR-B RJ45 Used for CAN communication between inverter and Lithium RJ45...
  • Page 30 CAN-L on Pin 5: blue/white 4.8.4 Meter Terminal Connection (Optional) If a smart meter is preferred to be installed other than the provided CT, please contact Solis sales rep to order the smart meter and corresponding meter CT. Please lead the Meter RS485 cable through the COM1 or COM2 port of the inverter and connect to the Meter terminal with RJ45 connector.
  • Page 31 4.8.5 DRM port connection (Optional) 4.8.5.1 For remote shutdown function Solis inverters support remote shutdown function to remotely control the inverter to power on and off through logic signals. The DRM port is provided with an RJ45 terminal and its Pin5 and Pin6 can be used for remote shutdown function.
  • Page 32 If a 3rd party external device or controller needs to communicate with the inverter, the RS485 port can be used. Modbus RTU protocol is supported by Solis inverters. To acquire latest protocol document, please contact Solis local service team or Solis sales. NOTE:...
  • Page 33 4. Installation User Manual 4.8.8 12-pin Communication Terminal Block Terminal Block Connection Steps: Step 1. Lead the wires through the hole in COM1 or COM2 port (Hole Diameter: 2 mm) Step 2. Strip the wires for 9mm length Step 3. Use slot type screwdriver to press the block on the top Step 4.
  • Page 34 4. Installation User Manual 4.8.8.2 G-V Terminal Connection The G-V terminal is a voltage-free dry contact signal for connecting with generator's NO relay to start up the generator when necessary. When generator operation is not needed, Pin1 and Pin2 is in open circuit. When generator operation is needed, Pin1 and Pin2 is in short circuit.

  • Page 35: Inverter Remote Monitoring Connection

    The USB type COM port at the bottom of the inverter can connect to different kinds of Solis dataloggers, enabling remote monitoring through the SolisCloud platform. To install Solis data loggers, please refer to the corresponding user manuals of Solis data loggers.

  • Page 36: Commissioning & Shutdown

    5. Commissioning & Shutdown User Manual 5.1 Preparation of Commissioning Ensure that all the devices are accessible for operation, maintenance and service. Check and confirm that the inverter is firmly installed. Space for ventilation is sufficient for one inverter or multiple inverters. Nothing is left on the top of the inverter or battery module.

  • Page 37: Log In The App Via Bluetooth

    5. Commissioning & Shutdown User Manual 5.3 Log in the APP via Bluetooth Step 1: Connect with Bluetooth. Turn on Bluetooth switch on your mobile phone and then open the SolisCloud APP. Click “More Tools”->”Local Operation”->”Connect with Bluetooth” < Local Operation Connect With Bluetooth Connect With WiFi Step 2: Select the Bluetooth signal from the inverter.
  • Page 38 5. Commissioning & Shutdown User Manual Step 4: After the log in for the first time, initial settings are required. Step 4.1: Set the inverter date and time. You can set to follow the time on your mobile phone. Step 4.2: Set the battery model. It must be based on the battery model that is actually connected to the inverter.

  • Page 39: Shutdown Procedure

    5. Commissioning & Shutdown User Manual Step 4.4: Set the grid code setting. Please select the grid code based on the local grid network requirements. Step 4.5: Set the work mode setting. Recommended setting is Self-Use Mode. This mode will maximize the use of PV power generation for household electricity, or store it in batteries and use it for household electricity.

  • Page 40: Work Mode And Settings

    5. Commissioning & Shutdown User Manual 5.5 Work Mode and Settings APP operation system overview...
  • Page 41 A.Self-Use Mode is activated without any specific times set for the battery to be charged/discharged, and the battery reserve is not switched on. Note: Solis recommends activating the 'Allow Grid Charge' option. Once the battery reaches the Forcecharge SOC, it will use the grid to charge the battery, preventing it from being deep discharged.
  • Page 42 5. Commissioning & Shutdown User Manual Batt reserved: Lithium battery: default 80%, adjustable range (the recommended value is more than 80%, to ensure that the battery has enough energy to supply the load after the grid is off ; Lead acid battery: Default 100%, cannot be set. Allow export: Allow power output to the grid in Self-use mode.
  • Page 43 5. Commissioning & Shutdown User Manual 5.5.2 Selling first mode Load priority: load>grid>battery Power supply priority: PV>battery>grid>DG This mode applies to the area that has high feed-in tariff and export control. The PV power will prioritize supplying energy to the load. Then any surplus is directed into the grid.
  • Page 44 5. Commissioning & Shutdown User Manual 5.5.3 Off-Grid mode Load priority : load>battery Power supply priority: PV>battery>DG •This mode applies to the area not covered by the grid or when the system is not connected to the grid. •When a power outage is detected in a grid-tied system, the system will automatically will automatically enter in the off-grid, supplying only the backup load.

  • Page 45: Tou Function Settings

    5. Commissioning & Shutdown User Manual 5.6 TOU Function Settings This function applies to the area with peak-valley price. Set the system to charge the battery in valley price and discharge in peak price to improve benefits. Supports 6 customizable charge/discharge time settings, while the battery will charge/ discharge at a set current.

  • Page 46: Battery Settings

    5. Commissioning & Shutdown User Manual 5.7 Battery Settings The battery section of the app offers numerous options to customize the interaction between the inverter and the battery. Here, we provide explanations for the functions and features available in this section, allowing users to tailor the inverter's behavior to their specific preferences and requirements.

  • Page 47: Battery Functions Setting

    5. Commissioning & Shutdown User Manual 5.8 Battery Functions setting If you need more Function Settings for the battery, you can go to Setting--Professional Setting--Function Setting. ECO function: To protect the battery, If PV power is lower than 100W and SOC below overdischarge SOC, The inverter will take power from the grid instead of battery, to maintain standby state,indicator and communication.

  • Page 48: Smart Port Settings

    5. Commissioning & Shutdown User Manual 5.9 Smart port settings 5.9.1 Generator setting APP: setting--Smart Port In single system, Diesel Generator can be connected via GEN port or ATS on Grid side. If though GEN port, it will only supply power to the Backup load. It is recommended that the power be greater than the backup load power.
  • Page 49 5. Commissioning & Shutdown User Manual 5.9.2 AC coupled setting APP: setting--Smart Port With an existing PV plant connected to the system, it is recommended that: Grid-tied inverter power＜ rated AC power of S6 inverter. In an on-grid scenario, when the third-party grid-connected inverter is connected, the system cannot control the output power of the third-party grid-tied inverter, so feed-in limitation cannot be achieved;...
  • Page 50 5. Commissioning & Shutdown User Manual 5.9.3 Smartload setting APP: setting--Smart Port The Gen port has extended power, which can be used as Smart load output. When the battery SOC/Volt reach the ON set value, the smart port will supply power to the load. When the battery SOC/Volt drops to OFF SOC/Volt, it will cut off the power of the load.

  • Page 51: Grid Port Settings

    5. Commissioning & Shutdown User Manual 5.10 Grid port settings APP: setting--Grid Port Select grid code that meet the local regulations; If the grid is three-phase and three-line, choose Disconnected the N-line.

  • Page 52: Parallel Settings

    5. Commissioning & Shutdown User Manual 5.11 Parallel Settings APP: setting--Parallel setting The first inverter must be set as the Master. The first inverter address is set to 1, the second to 2, and so on (Note: that the address cannot be set to 0 and the physical address of the master must be 1) 5.12 Only PV power load function 1.
  • Page 53 5. Commissioning & Shutdown User Manual 2. Solis APP Setting Setting--Professional Setting--function Setting...

  • Page 54: Hmi Screen Setting

    Set inverter time and date, default follow the phone. 2. CT/Meter setting: Select the CT or Meter， Solis provide Eastron 3 phase meter, it is self-identifiable. Set installation location: Grid side / Load side / Grid+PV inverter; CT direction: When CT installed correctly, select “Forward”; when CT installed direction wrong, the sampling current of CT will be reversed when calculating the power, select “Reversal”...
  • Page 55 5. Commissioning & Shutdown User Manual Mode Description PV power flow priority sequence: loads ＞ battery ＞ grid. In this mode, the system stores excess PV power into the battery after the loads are supplied. If “Allow export” turned on, when the battery is charged full, or there is no Self-use battery, the excess PV power will be exported(sold)back to the grid.
  • Page 56 5. Commissioning & Shutdown User Manual 5. Battery setting: Select battery brand. Set Max charging/discharging current.
  • Page 57 5. Commissioning & Shutdown User Manual 5.13.2 HMI screen operation system overview...
  • Page 58 5. Commissioning & Shutdown User Manual 5.13.3 Detailed HMI Setting Step 1: Enter Home page After quick setting, press “ENTER”, the screen displays the home page. The screen will be automatically turn off after being idle for a few minutes to save power, click any operation button（“ESC”/”UP”/”DOWN”/ “ENTER”) to restart the screen, then press “Enter”...
  • Page 59 5. Commissioning & Shutdown User Manual Step 3: Set “Storage Mode” Use “UP” or “DOWN” key to select the desired mode, then press “ENTER”. The Mode description please refer to 5.4.1. Settings Description Range: 5~95%, default: 80%, settable. When battery SOC ＜ set battery reserve SOC, battery will stop Battery reserve discharging.
  • Page 60 5. Commissioning & Shutdown User Manual Step 4: Set “Time of use” under each mode (Skip this step if no need) Time of Use is for manual control of the battery charging/discharging. It is for customizing when the battery is allowed to charge and discharge power and at what rate, established by a current(amperage)setting.
  • Page 61 5. Commissioning & Shutdown User Manual Step 5: Set “Battery Setting” Settings Description Max charge current Max charge current, settable. Max discharge current Max discharge current, settable. Range: 5~40%, default 20%, Over discharge when battery SOC ＜ over discharge, it will stop discharging. Range: set Over discharge value +1% ~ set Over discharge value +20%;...
  • Page 62 5. Commissioning & Shutdown User Manual Step 6: Set “Grid Port” (Skip this step if grid code is already set in quick setting) Select grid code that meet the local regulations. Three level of Over-voltage / under-voltage / Over-frequency / under-frequency are default based on grid code, there is no need to set the parameters in manual.
  • Page 63 5. Commissioning & Shutdown User Manual Step 8: Set parallel system Set Master and Slave machine, Set Master ID as: 1 Slave machine ID as: 2 .Slave machine ID as: 3 ..and so on.

  • Page 64: Maintenance

    6. Maintenance User Manual Solis S6 Series inverter does not require any regular maintenance. However, cleaning the heatsink will help inverter dissipating heat and increase the lifetime of inverter. The dirt on the inverter can be cleaned with a soft brush.

  • Page 65: Troubleshooting

    7. Troubleshooting User Manual Message Name Information Description Troubleshooting Suggestion 1. Turn on the device in the ON/OFF Setting. Control device to shutdown 1. Confirm whether the inverter is connected to an external EPM/meter to prevent reverse current. 2. Confirm whether the inverter is controlled The device's output is under LmtByEPM by an external third-party device.
  • Page 66 7. Troubleshooting User Manual Message Name Information Description Troubleshooting Suggestion 1. Grid side fault, restart the device. Surge Alarm On-site grid surge If it is still not eliminated, please contact the manufacturer's customer service. Grid voltage exceeds the OV-G-V01 upper voltage range Grid voltage exceeds the UN-G-V01 lower voltage range...
  • Page 67 7. Troubleshooting User Manual Message Name Information Description Troubleshooting Suggestion 1. Confirm whether the battery model selection Wrong battery brand selection BatName-FAIL is consistent with the actual one. 1. Can failure is a failure of communication between inverter and battery. Check cable conditions.
  • Page 68 7. Troubleshooting User Manual Message Name Information Description Troubleshooting Suggestion 1. Confirm that the grid is abnormal. 2. Confirm that the AC cable connection is not DCInj-FAULT The current DC component abnormal. (1037 DATA:0000) exceeds the limit 3. Restart the system, confirm that the fault continues.
  • Page 69 Please keep ready with you the following information before contacting us. 1. Serial number of Solis three phase inverter; 2. The distributor/dealer of Solis three phase inverter (if available); 3. Installation date. 4. The description of the problem together with necessary information, pictures, attachment.

  • Page 70: Specifications

    8. Specifications User Manual Technical Data S6-EH3P12K-H Input DC (PV side) Max Usable PV Input Power 19200W Max. input voltage 1000V Rated voltage 600V Start-up voltage 160V MPPT voltage range 200-850V Full load MPPT voltage range 300-850V Max. input current 4*20A Max.
  • Page 71 8. Specifications User Manual Technical Data S6-EH3P12K-H Input Generator Max. input power 12kW Rated input current 18.2A/17.3A Rated input frequency 50 Hz/60 Hz Output AC(Back-up) Rated output power 12kW Peak apparent output power 2 time of rated power, 10 S Back-up switch time <...
  • Page 72 8. Specifications User Manual Technical Data S6-EH3P12K-H General data Max. allowable phase imbalance 100% (grid & back up) Max. power per phase (grid & back up) 50% rated power Dimensions(W/H/D) 563*546*250mm 35.2kg Weight Topology Transformerless Self consumption (Night) <25 W Operation temperature range -25℃～+60℃...
  • Page 73 8. Specifications User Manual Technical Data S6-EH3P15K-H Input DC (PV side) Max Usable PV Input Power 24000W Max. input voltage 1000V Rated voltage 600V Start-up voltage 160V MPPT voltage range 200-850V Full load MPPT voltage range 300-850V Max. input current 4*20A Max.
  • Page 74 8. Specifications User Manual Technical Data S6-EH3P15K-H Input Generator Max. input power 15kW Rated input current 22.8A/21.7A Rated input frequency 50 Hz/60 Hz Output AC(Back-up) Rated output power 15kW Peak apparent output power 2 time of rated power, 10 S Back-up switch time <...
  • Page 75 8. Specifications User Manual Technical Data S6-EH3P15K-H General data Max. allowable phase imbalance 100% (grid & back up) Max. power per phase (grid & back up) 50% rated power Dimensions(W/H/D) 563*546*250mm 35.2kg Weight Topology Transformerless Self consumption (Night) <25 W Operation temperature range -25℃～+60℃...
  • Page 76 8. Specifications User Manual Technical Data S6-EH3P20K-H Input DC (PV side) Max Usable PV Input Power 32000W Max. input voltage 1000V Rated voltage 600V Start-up voltage 160V MPPT voltage range 200-850V Full load MPPT voltage range 300-850V Max. input current 4*20A Max.
  • Page 77 8. Specifications User Manual Technical Data S6-EH3P20K-H Input Generator Max. input power 20kW Rated input current 30.4A/28.9A Rated input frequency 50 Hz/60 Hz Output AC(Back-up) Rated output power 20kW Peak apparent output power 1.6 time of rated power, 10 S Back-up switch time <...
  • Page 78 8. Specifications User Manual Technical Data S6-EH3P20K-H General data Max. allowable phase imbalance 100% (grid & back up) Max. power per phase (grid & back up) 40% rated power Dimensions(W/H/D) 563*546*250mm 35.2kg Weight Topology Transformerless Self consumption (Night) <25 W Operation temperature range -25℃～+60℃...
  • Page 79 8. Specifications User Manual Technical Data S6-EH3P8K-LV-H Input DC (PV side) Max Usable PV Input Power 12800W Max. input voltage 1000V Rated voltage 600V Start-up voltage 160V MPPT voltage range 200-850V Full load MPPT voltage range 300-850V Max. input current 4*16A Max.
  • Page 80 8. Specifications User Manual Technical Data S6-EH3P8K-LV-H Input Generator Max. input power Rated input current 20.1A Rated input frequency 50 Hz/60 Hz Output AC(Back-up) Rated output power Peak apparent output power 2 time of rated power, 10 S Back-up switch time <...
  • Page 81 8. Specifications User Manual Technical Data S6-EH3P8K-LV-H General data Max. allowable phase imbalance 100% (grid & back up) Max. power per phase (grid & back up) 50% rated power Dimensions(W/H/D) 563*546*250mm 35.2kg Weight Topology Transformerless Self consumption (Night) <25 W Operation temperature range -25℃～+60℃...
  • Page 82 8. Specifications User Manual Technical Data S6-EH3P10K-LV-H Input DC (PV side) Max Usable PV Input Power 16000W Max. input voltage 1000V Rated voltage 600V Start-up voltage 160V MPPT voltage range 200-850V Full load MPPT voltage range 300-850V Max. input current 4*16A Max.
  • Page 83 8. Specifications User Manual Technical Data S6-EH3P10K-LV-H Input Generator Max. input power 10kW Rated input current 25.1A Rated input frequency 50 Hz/60 Hz Output AC(Back-up) Rated output power 10kW Peak apparent output power 2 time of rated power, 10 S Back-up switch time <...
  • Page 84 8. Specifications User Manual Technical Data S6-EH3P10K-LV-H General data Max. allowable phase imbalance 100% (grid & back up) Max. power per phase (grid & back up) 50% rated power Dimensions(W/H/D) 563*546*250mm 35.2kg Weight Topology Transformerless Self consumption (Night) <25 W Operation temperature range -25℃～+60℃...
  • Page 85 8. Specifications User Manual Technical Data S6-EH3P12K-LV-H Input DC (PV side) Max Usable PV Input Power 19200W Max. input voltage 1000V Rated voltage 600V Start-up voltage 160V MPPT voltage range 200-850V Full load MPPT voltage range 300-850V Max. input current 4*20A Max.
  • Page 86 8. Specifications User Manual Technical Data S6-EH3P12K-LV-H Input Generator Max. input power 12kW Rated input current 30.1A Rated input frequency 50 Hz/60 Hz Output AC(Back-up) Rated output power 12kW Peak apparent output power 1.6 time of rated power, 10 S Back-up switch time <...
  • Page 87 8. Specifications User Manual Technical Data S6-EH3P12K-LV-H General data Max. allowable phase imbalance 100% (grid & back up) Max. power per phase (grid & back up) 40% rated power Dimensions(W/H/D) 563*546*250mm 35.2kg Weight Topology Transformerless Self consumption (Night) <25 W Operation temperature range -25℃～+60℃...
  • Page 88 Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Web: www.solisinverters.com Please adhere to the actual products in case of any discrepancies in this user manual. If you encounter any problem on the inverter, please find out the inverter S/N and contact us, we will try to respond to your question ASAP.
